Description
The fusion splicer is mainly used for connection of optica fiber which can be further connected with ordinary optical fiber cables, jumpers, and multiple single mode multimode and dispersion shifted quartz optical fibers with a cladding diameter of 50um to 150um. Keep it clean and protect it against strong vibrations and shocks.
Specification
| Fiber type | SM (G.652 % G.657), MM (G.651), DS (G.653), NZDS (G.655) and self-defined optical fiber types |
| Splicing loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(DS/NZDS) |
| Return loss | Over 60dB |
| Splice time | 9 seconds |
| Heating time | 26 seconds (heating time can be set, heating temperature can be adjusted) |
| Optical fiber alignment | Precise alignment, fiber core alignment, cladding alignment |
| Fiber diameter | Diameter of cladding layer 80~150um, diameter of coating layer 100- 1000um |
| Cutting length | Coating layer below 250um:8-16mm, coating layer 250-1000um:16mm |
| Tension test | Standard 2N (optional) |
| Optical fiber clamp | Multi-function clamp for bare fiber, fiber pigtails, jumpers, drop cable, changing clamp applicable for SC or other connectors for a variety of FTTx optical fiber and cable. |
| Magnification | 400times (X-axis or Y-axis) |
| Heat shrink bush | 60mm, 40mm and a series of miniature bush |

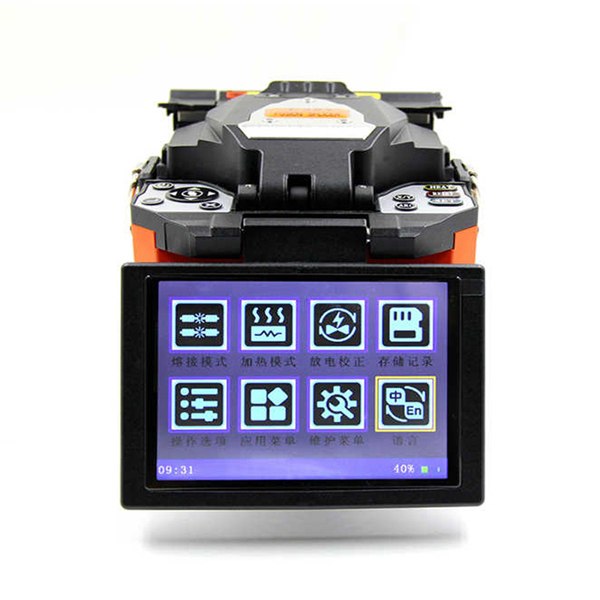

| Display screen | 5.0 inch TFT color LCD display
Reversible, convenient for bi-directional operation |
| External interface | USB interface, convenient for data download and software upgrade |
| Usage pattern | 17 groups of use mode / 9 groups of heating mode |
| Splice storage | Built-in memory saves 5000 latest splice results |
| Power supply | Built-in lithium battery 11.8v power supply, charging time ≤3.5 hours;
External adapter, input AC 100-240V 50/60HZ, output DC 13.5V/4.81A |
| Built-in battery | Support continuous splicing and heating for not less than 200times |
| Power saving | 15% of the power of the lithium battery can be saved in a typical environment |
| Working environment | Temperature -10~+50℃, humidity:<95%RH (no condensation),working altitude:0~500m, max. Wind speed:15min/s |
| Multilingualism | Chinese/English/Spanish/Portuguese/french/Russian/Italian/Vietnamese |
| Dimension(L*W*D) | 158*130*156mm |
| Lighting | Convenient for optical fiber installation in the evening |
| Weight | 1.77kg (without battery), 2.14kg(with battery) |
