Description
Due to its great advantages, the push pull fiber patch cables are an ideal solution for 40G, 100G network upgrades and high-density wiring systems. It is widely used in high-density communication rooms, optical terminals, servers, patch panels and switching equipment, etc., to ensure high-speed and stable transmission of signals between the two.

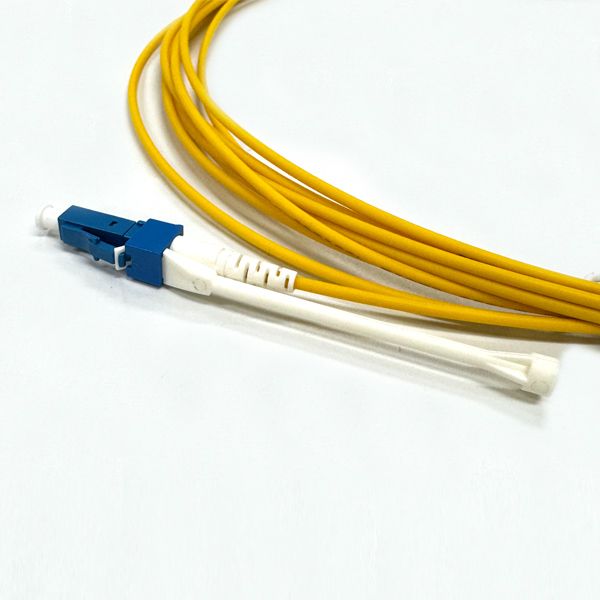

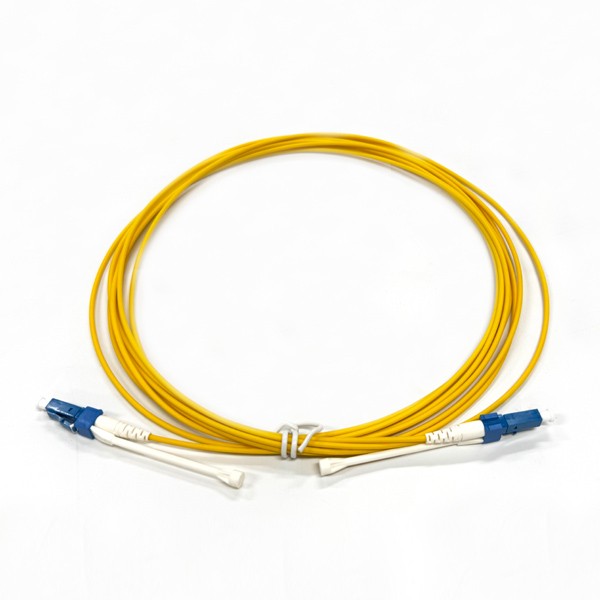

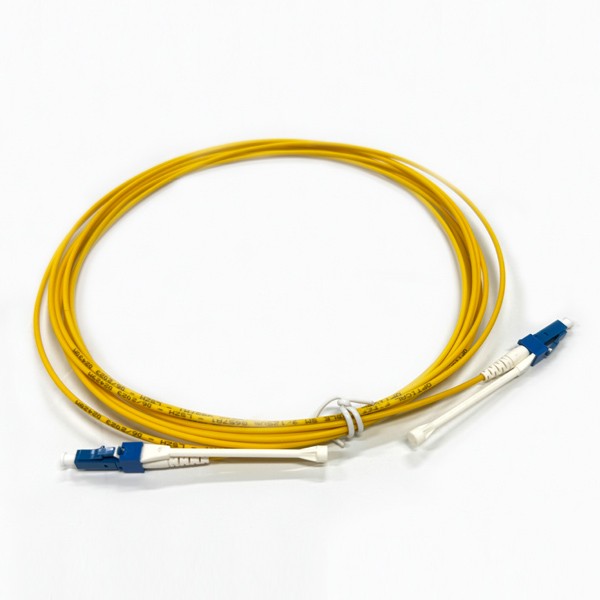

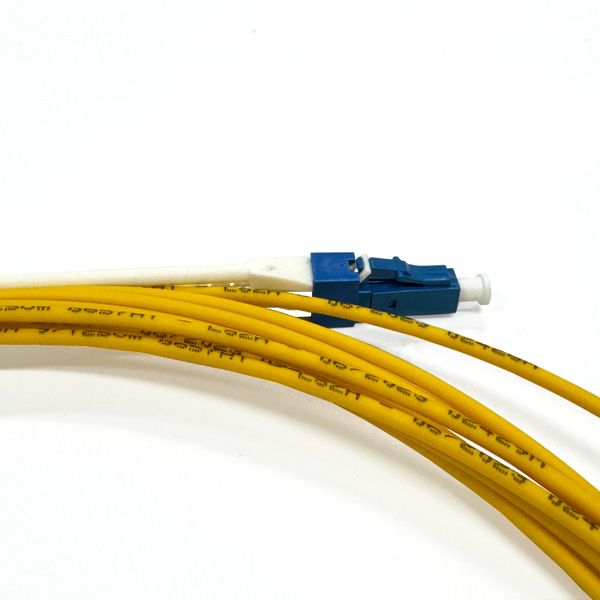

LC LC SM Patch Cord Features
- Four-pass polishing technology is used to provide the best insertion loss and return loss to ensure the stability of its transmission.
- A-grade precision ceramic ferrule ensure stable and reliable performance, ultra-low insertion loss, and better coaxiality and dimensional accuracy to realizes lossless data transmission.
- LSZH outer sheath, plus bend-insensitive optical fiber, meets special requirements for bending performance.
- One tube dual core + push-pull structure, more convenient operation, reduces cable channel blockage, and saves a lot of space.
- New environmentally friendly material, high temperature resistance, durable and non-deformed, non-breakage, anti-falling, professional fully automated standard production, minimizes manual intervention, and stable quality.
Patch Cord Application
This new fiber patch cables are widely used in data center, fiber optic communication systems, fiber-to-the-home, fiber optic data transmission, fiber optic CATV, LAN, fiber optic test equipment, fiber optic sensors, etc.
LC LC SM Patch Cord Specification
| Item | Single mode LC-LC patch cord |
| Polishing mode | UPC to UPC |
| Fiber type | Single mode fiber G.652D, G.657A, G.654E, G.655 |
| Cable color | yellow |
| Ferrule | Ceramic ferrule 1.25mm |
| Insertion loss | ≤0.2dB |
| Plug times | 1000 times |
| Wavelength | 1310/1550nm |
| Repeatability | ≤0.1dB |
| Changeability | ≤0.2dB |
| Return loss | ≥50dB |
| Working temperature | -40 ~+85 ℃ |
| Reference standard | TIA-568C.3-2008(Fiber Optic Cabling Components Standard) |
| Test conditions | |
| Temperature and humidity aging | Temperature 85℃, 85% relative humidity, 14 days |
| Temperature cycle | Temperature -40 ~ +75℃, 10%-80% relative humidity, 42 cycles, 14 days |
| Water immersion | Temperature 43℃, PH5.5, 7 days |
| Vibration | Amplitude 1.52mm, frequency 10Hz~55Hz, 2 hours each in X/Y/Z directions |
| Load bending | 0.45kg load 100 cycles (with sleeve) |
| Load torsion | 0.454kg load 100 cycles (with sleeve) |
| Tensile strength | 0.23kg tension (bare fiber), 1.0kg (with sleeve) |
| Impact | 1.8m high, three directions, 8 times/direction |
