Description

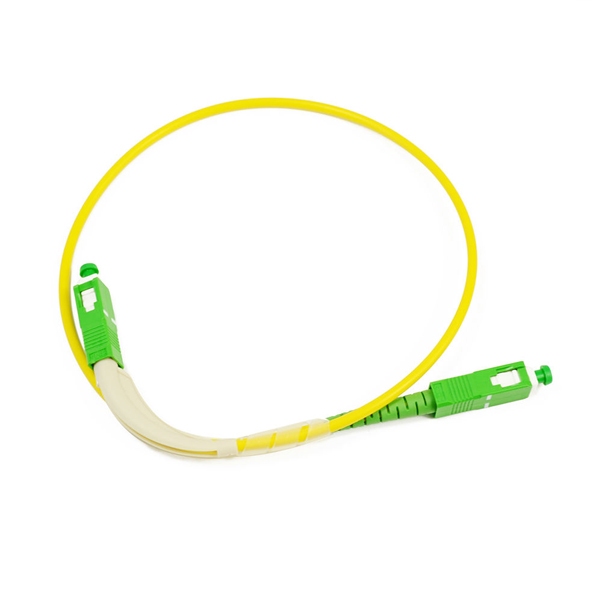

90 Degree Patch Cable Features
- Low insertion loss, high return loss
- Small, light, high density connection
- Standard precision plastic material
- High reliability and stability
- Good repeatability and interchangeability
Patch Cable Technical parameters
| Item | 45 90 degree patch cable SC LC | |
| Fiber type | SM(G.652/G.657A) | MM (OM1/OM2/OM3/OM4) |
| Jacket material | LSZH/OFNR/PVC | |
| Connector type | SC/LC/ST/LC/MU/MTRJ/MPO/E2000 | |
| Ferrule material | Ceramic | |
| Test wavelength | 1310 ± 30/1550 ± 30nm | 850 ± 30/1300 ± 30nm |
| Insertion loss(dB) TIA/EIA-455-107 | ≤ 0.3dB (PC/UPC/APC) | ≤ 0.3dB (PC/UPC) |
| Return loss (dB) TIA/EIA-455-107 | ≥ 45dB(PC/UPC) ≥ 55dB(APC) | ≥ 35dB(PC/UPC) |
| Interchangeability | ≤ 0.2dB | |
| Cable assembly | Pigtails, simplex duplex or fan-out patch cords | |
| Operating temperature (°c) | -10 ~ + 70 | |
| Storage temperature (°c) | -40 ~ + 85 | |

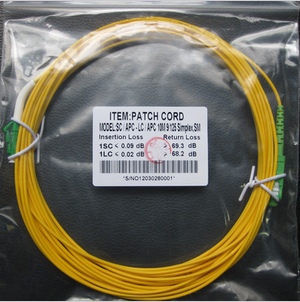

| Packaging | 1pc/bag | |
| * All values specified have connectors. | ||
