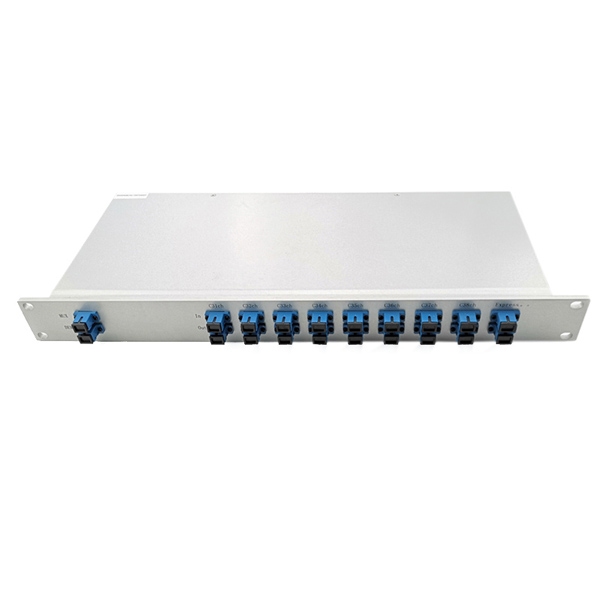

Description
Features
- Low Insertion loss and low PDL
- High channel Isolation
- Good channel-to-channel uniformity
- High Reliability and Stability
- Telcordia Compliant
- RoHS Compliant
Applications
- Broadband networks
- PON Networks
- CATV system
- DWDM system
Compliance
- Telcordia GR-1209-CORE-2001
- Telcordia GR-1221-CORE-1999
- ITU-T G.694.1
- ROHS
Specifications
| Parameters | Unit | Value | ||
| Operating Wavelength (nm) | nm | 1525~1565 | ||
| Channel spacing | nm | 0.8 | ||
| Channel Port | / | 8CH | 24CH | |
| Center Wavelength | / | C20~C27 | C20~C43 | |
| Pass band | nm | ±0.125 | ||
| Center Wavelength Accuracy | nm | ±0.05 | ||
| Port Insertion Loss | dB | ≤2.5 | ≤3.3 | |
| Port Link Loss（Remote+ HQ） | dB | ≤3.3 | ≤4.0 | |
| Isolation | Adjacent | dB | ≥30 | |
| Non-adjacent | dB | ≥40 | ||
| Ripple | dB | ≤0.5 | ||
| PDL | dB | ≤0.2 | ||
| RL | dB | ≥40 | ||
| Directivity | dB | ≥50 | ||
| Power | mW | ≤300 | ||
| Fiber Type | / | G657A1 | ||
| Fiber Length | cm | 50±5 | ||
| Connector | / | LC/UPC | ||
| Operating Temperature | ℃ | -20~+70 | ||
| Storage Temperature | ℃ | -40~+85 | ||
| Housing | mm | 484x250x44 | ||
