Description
Because of the unique precise design and the rubber or gel-filled sealing, this MST box meet IP68 protection grade, it is best fiber nap box in outdoor harsh environment like prospecting, military communications, telecom, and FTTX networks.
MST Fiber Box Features
- Made of robust plastic materials, black color with 1200N force resistance, durable, strong and long lasting;
- Outlet hardened Supertap SC adapters, compatible with Opti-Tap connector applications
- IP68 protection grade, best MST fiber box for outdoor harsh environment
- Support wall, overhead, underground, handhole, pedestal, pole mounting
- Custom cable input and output from optical cable port, optical interface MPO, SC DLC dual connector.
- Custom ODVA, ODC, AARC, PDLC, Fullx available.
- Support factory-terminated with 1×2 1×4 1×5,1×8 PLC splitter, 8 cores fiber sleeve, SC / DLC fiber adapter or MPO/MTP breakout cable or empty with standard accessories.
MST Fiber Nap Dimension
MST Fiber Nap Specification
| Model | MST-FH08 | |
| Dimension | Cover , Section B-B | 225*97.6*75 |
| Bottom,Section A-A | 267*105.6*43.6 | |
| Cable Inlet | 1x Supertap SC/APC Connector* | |
| Cable Outlet | 8 x Supertap SC/APC connectors* | |
| Hardened Adapter type | Compatible with ODC, Fullx, PDLC, Supertap (OptiTap), Mini, AARC,etc | |
| Max. Splicing Capacity | 8 Cores | |
| Mini Splitter | None, 1×2, 1×4,1×5, 1×8 steel tube splitter | |
| Adapter Type | 9x SC/APC adapter | |
| Insertion Loss | IL ≤ 0.3dB, Typical ≤ 0.1dB (SC LC)
IL ≤ 0.7dB, Elite loss ≤0.35dB (MPO) |
|
| Return Loss | UPC ≥ 50dB, UPC ≥ 60dB; PC ≥ 35dB | |
| Tensile Strength | 1200N long term | |
| Bending Radius | 20D | |
| Fire Protection Rating | UL94 V0 | |
| Material | Plastic: Reinforced PC+ABS Metal: Stainless steel 304 |
|
| Color | Black | |
| Ingress Protection | IP68 | |
| RoHS | Compliant | |
| Sealing Mode | Mechanical | |
| Application | Wall, overhead, pole, manhole, pedestal,underground | |
*Supertap is compatible with Opti-Tap Connectors, or H connector.
Fiber Serving Terminal Mechanical Parameters
| Storage Temperature | -40 ~+85℃ |
| Operation Temperature | -40 ~+65℃ |
| Relative Humidity | ≤93% |
1X8 Splitter Optical Parameter
| Item | 1×8 fiber optic plc splitter SC/APC connectors |
| Insertion loss | Typical 10.2dB, max. 10.6dB |
| PDL | ≤0.3dB |
| Uniformity | ≤0.6dB |
| Return loss | ≥55dB |
| Max. deviation range of the port | 1.7dB |
| Working wavelength | 1260-1650nm |
| Working temperature | -40~+85℃ |
| Storage temperature | -40 ~+85℃ |
| Working humidity | ≤85% |
SC Adapter Optical Performance
| Adapter Type | SC/APC |
| Body style | Simplex |
| Alignment Sleeve Material | Ceramic |
| Insertion Loss | ≤0.2dB |
| Return Loss | ≥60dB |
| Durability | 1000 times |
| ROHS | Compliance |
| Standard | IEC 61754-20 |

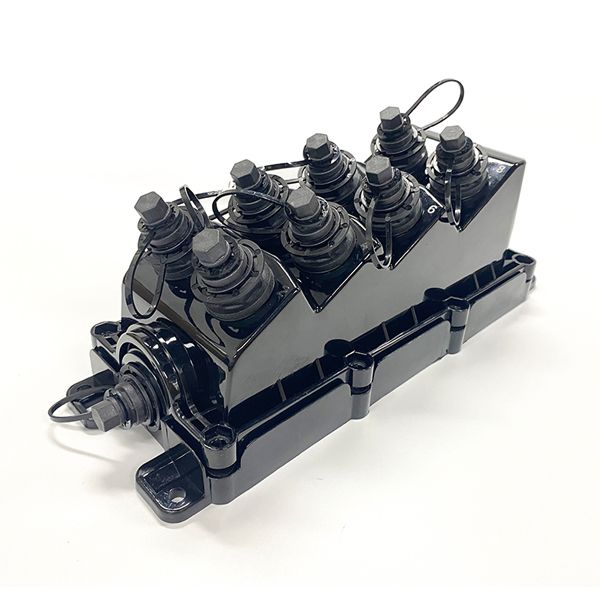

MST Fiber Box Details

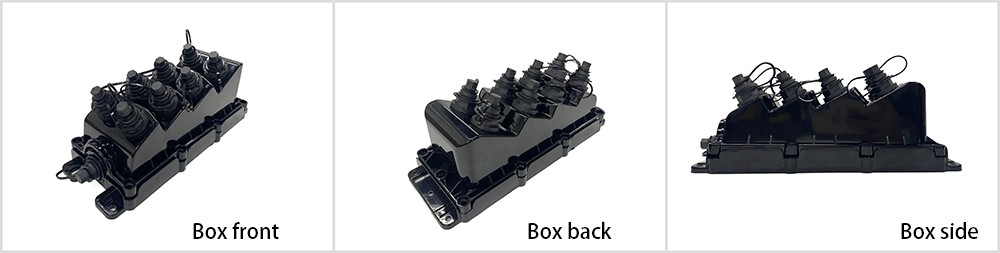

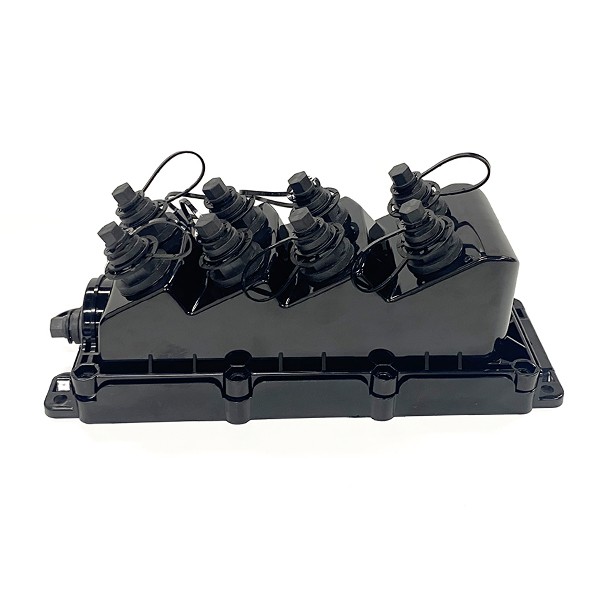

YINGDA MST-FH08 MST Fiber Box is widely used in fiber network access in GPON ODN. It is compact size, irregularly shaped, plug-and-play NAP box with best IP68 waterproof protection, and have strong impact resistance of 1200N. Below is the appearance of open and close with reasonable bend radius, and clear function areas.

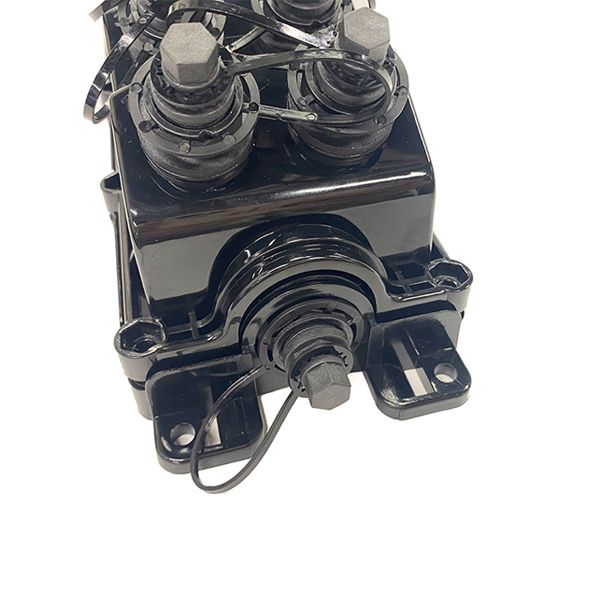

8 Port MST Fiber Box cover is for fiber optic distribution, you can find number mark to distinguish the fiber sequence, no need to open the box to check. The whole MST terminal box is totally enclosed with rubber seal on the bottom plate with 6 hexegon screws around. This MST fiber tap input is on the bottom plate, the output is on the cover. Both parts are separated.

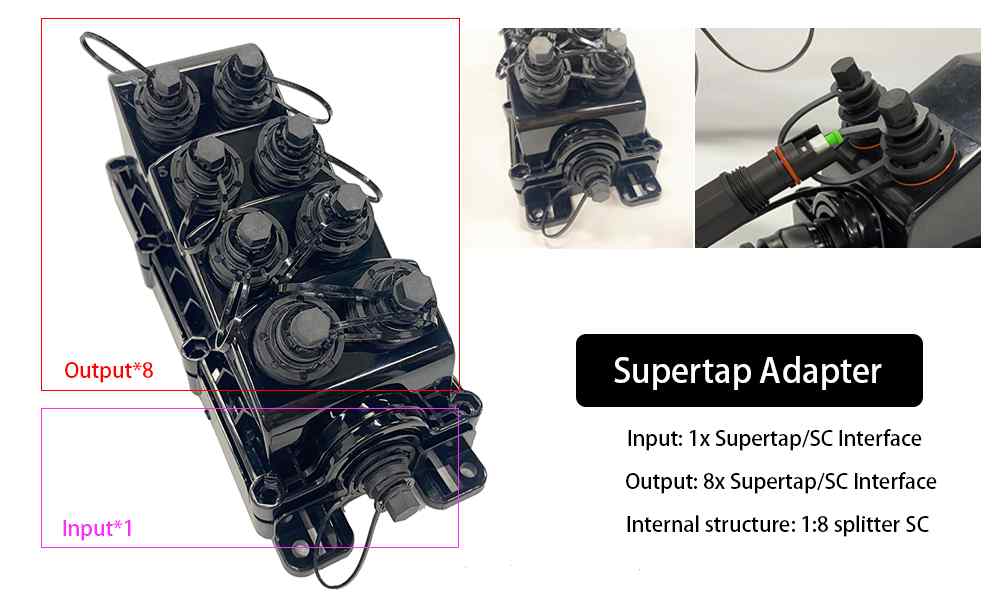

In this product, we use Hardened SC connectors, SC simplex aapters, you can choose DLC MPO connectors too. The hardended waterproof plug is mainly used for outdoor waterproof protection, and connected with equipment of corresponding brands.

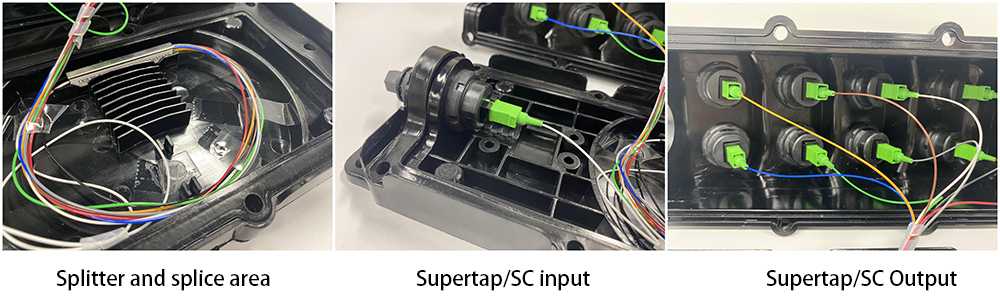

There are complete rubber sealing around the multiport service terminal box on the bottom plate, and in the middle with adapter, plc splitter or heat shrink protection tube fixing slots. Max. can splice single fiber 8 cores, and use 1×2 or 1×4, 1×5, 1×8 PLC fiber optic splitter. We configured 1:8 blockless splitter in this MST fiber nap box, and plug the input pigtail of splitter into the cable entry port, and plug the output pigtails of splitter in the cable exit ports, there is colorful loose tube to distinguish fiber 1 2 …8, also you can find the number mark on surface of the box without opening the closure.
