Description

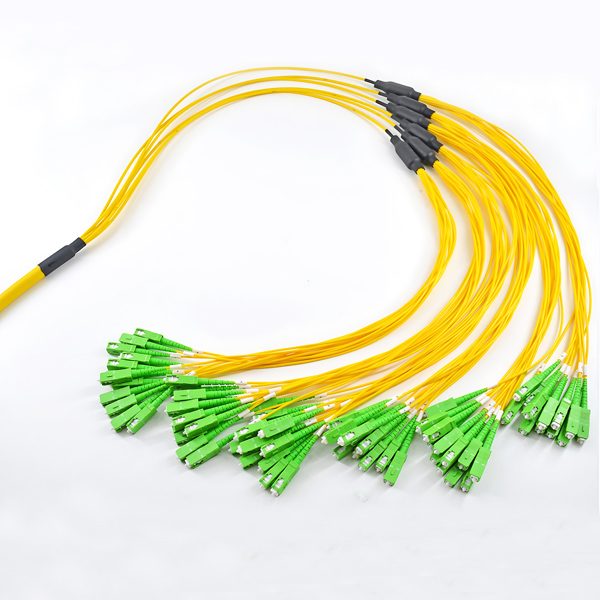

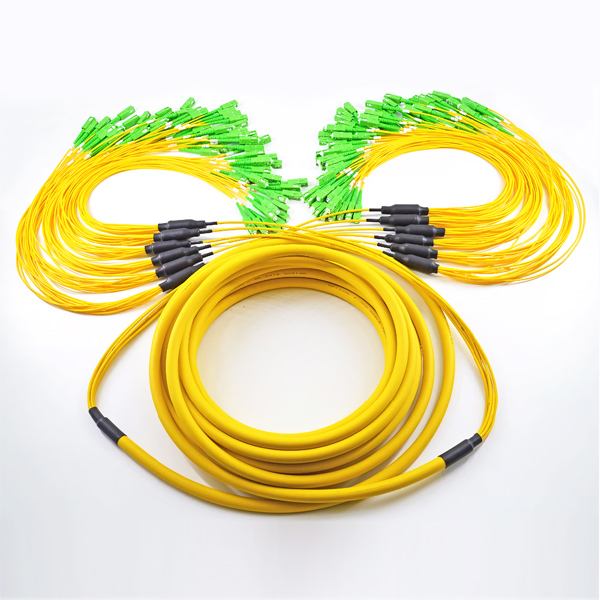

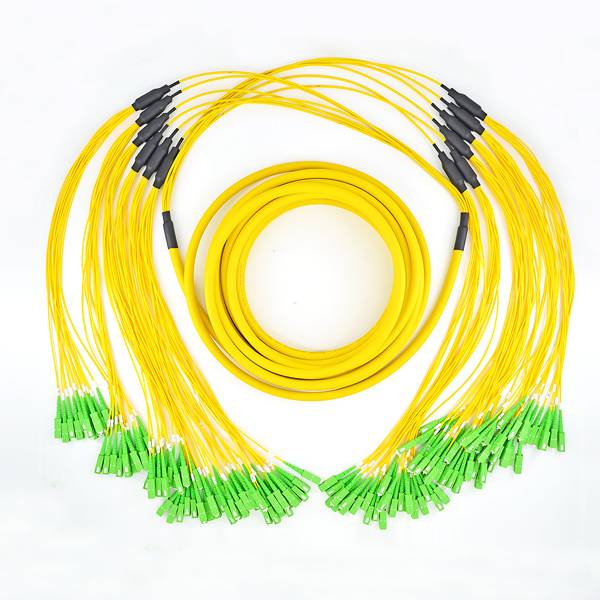

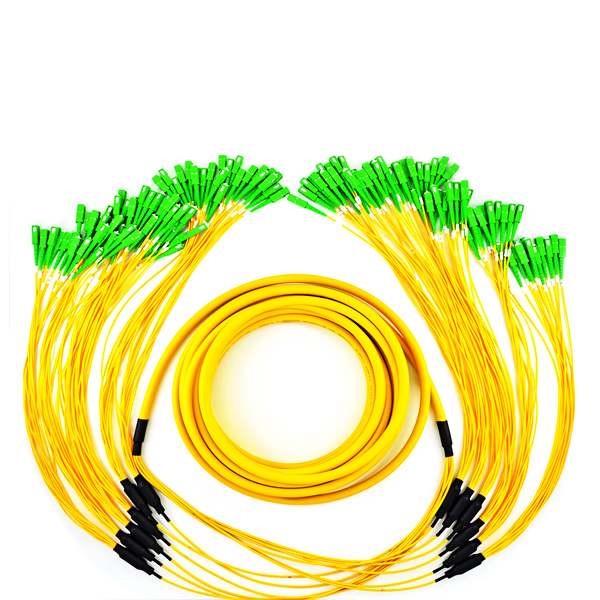

Features of 72 Core Fiber Optic Cable
- Good mechanical and environmental characteristics with kevlar yarn;
- Soft, flexible, solid, easy to strip, splice, especially applied to optical long-distance, field, building wiring, distribution connections;
- Flame retardant characteristics and ROHS compliance;
- All kinds of optical connectors SC LC ST FC MU MTRJ MPO MTP E2000 LX.5 FDDI ESCON can be use;
- Single mode fiber, multimode fiber both ok;
- Widely used in optical communication equipment rooms and optical distribution frames.
Fiber Optic Connector specification
| Item | Unit | FC/SC/LC | ST/MU | |||
| Fiber mode | SM | MM | SM | MM | ||
| Polish method | UPC/APC | APC | PC | PC/UPC | PC | |
| Fiber type | G652D,G657A | 50/125,62.5/125 | G652D,G657A | 50/125,62.5/125 | ||
| Insertion loss | dB | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 |
| Return loss | dB | ≥50 | ≥60 | ≥30 | ≥50 | ≥30 |
| Working wavelength | nm | 1310/1550 | 1300(OM1) 850 | 1310/1550 | 1300(OM1) 850 | |
| Repeatability | dB | ≤0.2 | ||||
| Vibration | dB | ≤0.2 | ||||
| Working temperature | ℃ | -40~+75 | ||||
| Storage temperature | ℃ | -40~+85 | ||||
