Description
LC LC Fiber Optic Cable Features
- Standard dual LC connector, well connected with standard LC adaptor
- Available single mode and multimode fiber
- IP67 protection, salt-mist proof, humidity proof, dust proof
- Plastic engineering housing, compact design for 2 cores or 4 cores
- Broad temperature range and wide range of indoor and outdoor cables
- Easy operation, reliable and cost-effective installation
LC LC Fiber Optic Cable Application
- Widely used in FTTA, FTTH, FTTX, FTTP, WIMAX network
- Used for 3G 4G 5G 6G Base station
- Harsh outdoor environments application
- BBU, RRU, RRH, LTE, FTTA connection
6 Cores Field Cable Parameter
| Cable count | Out sheath diameter(mm) | Weight (kg/km) | Min. Allowable tensile strength (N) | Min. Allowable crush load (N/100mm) | Min. Bending radius(mm) | Storage temperature (℃) | ||||||
| Short term | Long term | Short term | Long term | Short term | Long term | |||||||
| 2/4/6 | 7.0±0.3 | 50 | 600 | 1000 | 1000 | 2000 | 20D | 10D | -20~+70 | |||
LC Fiber Optic Cable Details

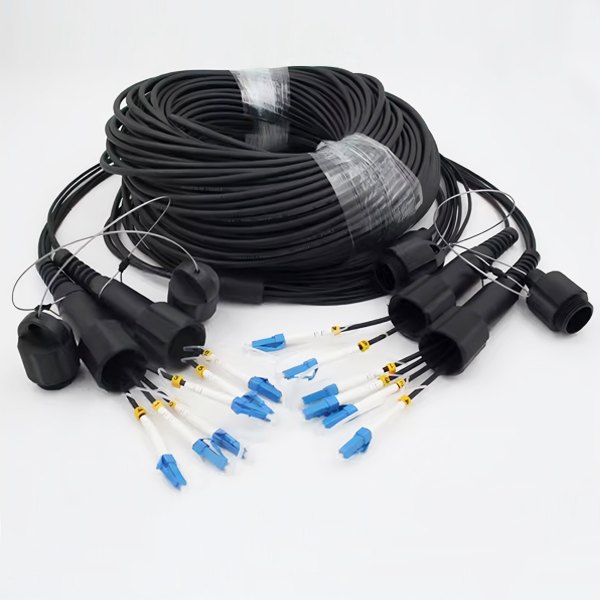

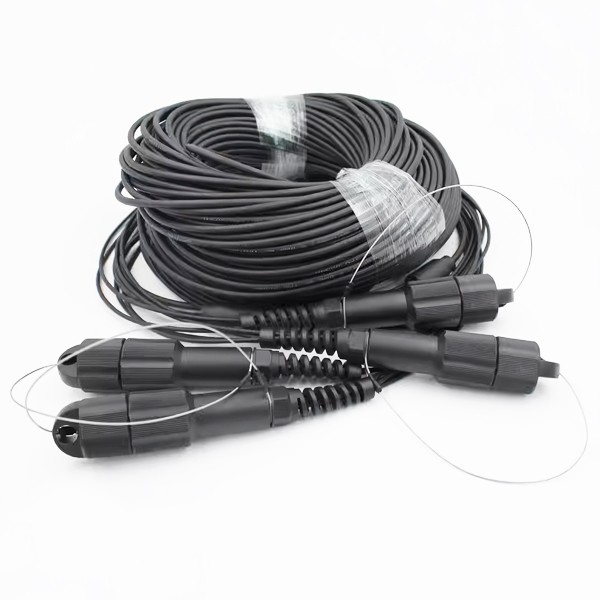

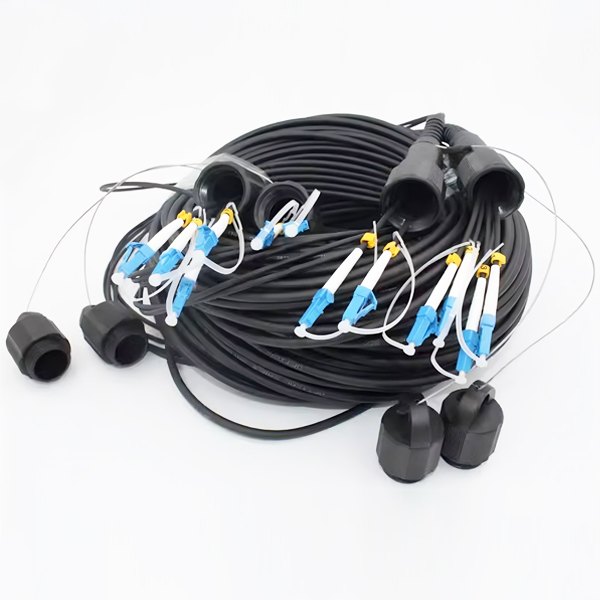

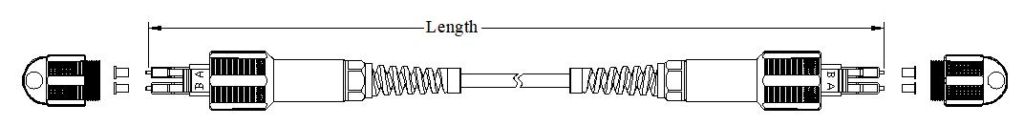

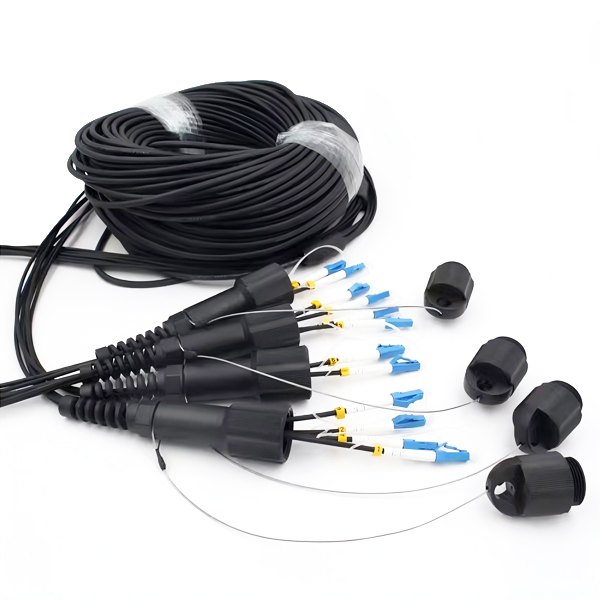

This 6 cores PDLC patch cord consists of a 6 core FTTA outdoor cable, two PDLC connectors, and 6pcs LC/UPC connectors. One PDLC hold 2pcs LC connector, the other PDLC connector hold 4pcs LC connectors. So total 6cores single mode fibers. The patch cord cable length is optional.
The fiber counts can be 2 cores, 4 cores, 8 cores, 12 cores, 24 cores, etc. Outdoor PDLC connectors are characterized by their robust structure, reliable connection, and waterproof and dustproof properties. They are widely used in long-distance wireless base stations (FTTA) and in harsh outdoor environments such as mines, sensors, and power plants for optical transmission connections. Suitable for outdoor environments, they can withstand severe environmental and climatic conditions.
The PDLC is an IP67 waterproof protection grade, compatible with some outdoor waterproof boxes from ZTE or Huawei. It is widely used in fiber optic communication, outdoor 5G base stations, and video surveillance.
Three Types of FTTA LC LC Fiber Optic Cable
- Armored BBU/RRU fiber patch cable:
Optical Cable Assembly, DLC/PC, Singlemode 9/125um (Multimode 62.5/125, 50/125), GYFJH 2A1a (LSZH), 7.0mm, 2cores, 0.03m/0.34m, 2mm, Outdoor Protected Branch Cable (ARMOURED TYPE) Length= 10m, 20m…xxxM.
- BBU/RRU patch cords with PDL cover:
Optical Cable Assembly, DLC/PC, DLC/PC, Singlemode 9/125um (Multimode 62.5/125, 50/125), GYFJH 2A1a (LSZH), 7.0mm, 2cores, 0.03m/0.34m, 2mm, Outdoor Protected Branch Cable Length = 10m, 20m…xxxM, A end (RRU) with PDL cover.
- Generally unarmored BBU fiber patch cords:
Optical Cable ASssembly, DLC/PC, DLC/PC, Singlemode 9/125um (Multimode 62.5/125, 50/125), GYFJH 2A1a (LSZH), 7.0mm, 2cores, 0.03m/0.34m, 2mm Outdoor Protected Branch Cable Length = 10m, 20m…xxxM
