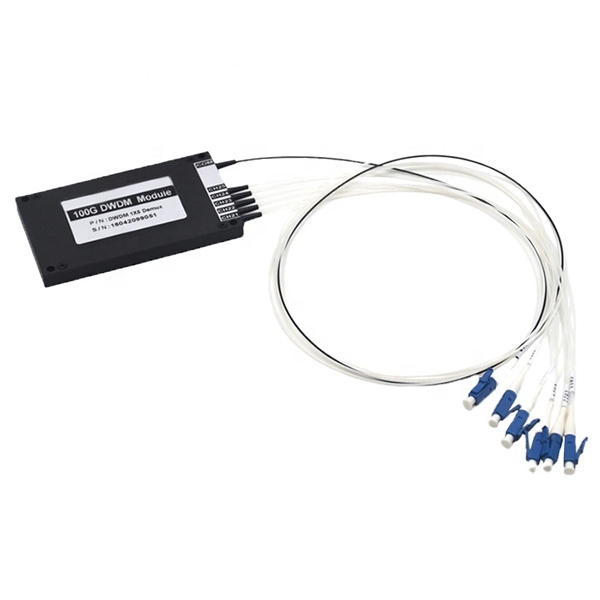

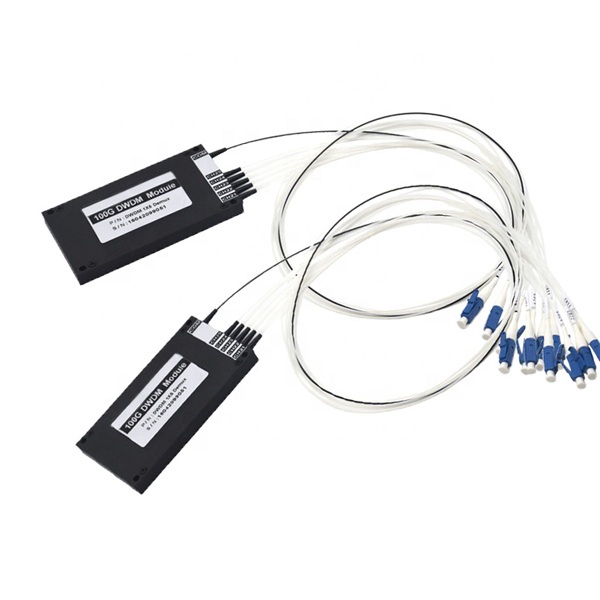

100G 1X5 5CH DWDM Demux Module LC/UPC, blue, 900um loose tube CH21 ~ CH24, Plastic ABS Box Module

DWDM is dense wavelength division multiplexing, a fiber optics technology for connecting multiple channels over a dark fiber pair using a multiplexer. It maximizes fiber usage and help organizations meet growing demands without laying or leasing more fiber until it’s absolutely necessary.

Category Tags , , Brand:

Description

Features

  • Low Insertion loss and low PDL
  • High channel Isolation
  • Good channel-to-channel uniformity
  • High Reliability and Stability
  • Telcordia Compliant
  • RoHS Compliant



Applications

  • Broadband networks
  • PON Networks
  • CATV system
  • DWDM system
  • Fiber amplifier



Compliance

  • Telcordia GR-1221-CORE
  • Telcordia GR-1209-CORE
  • ITU-T G.694.1
  • ROHS



Specifications

Parameters 2CH 4CH 8CH 16CH
Operating Wavelength (nm) 1500~1570
Channel spacing(GHz) 100G(Cband)
Center Wavelength C31 → C34 C34 → C31
Center Wavelength Accuracy (nm) +/-0.08
Pass band (nm) ITU±0.11
Port Insertion Loss (dB) <1.2 <1.8 <2.8 <3.8
Isolation (dB) Adjacent >30
Non-adjacent >40
Ripple (dB) <0.5
PDL (dB) <0.2
RL (dB) >45
Directivity (dB) >50
Power (mw) <300
Fiber Type G657A1 of 0.9mm loose tube
Fiber Length (m) 1.0
Connector LC/UPC
Operating Temperature (℃) -20~+75
Storage Temperature (℃) -40~+85
Housing (mm) 100*80*10/120*80*18/114*115*18
