Description

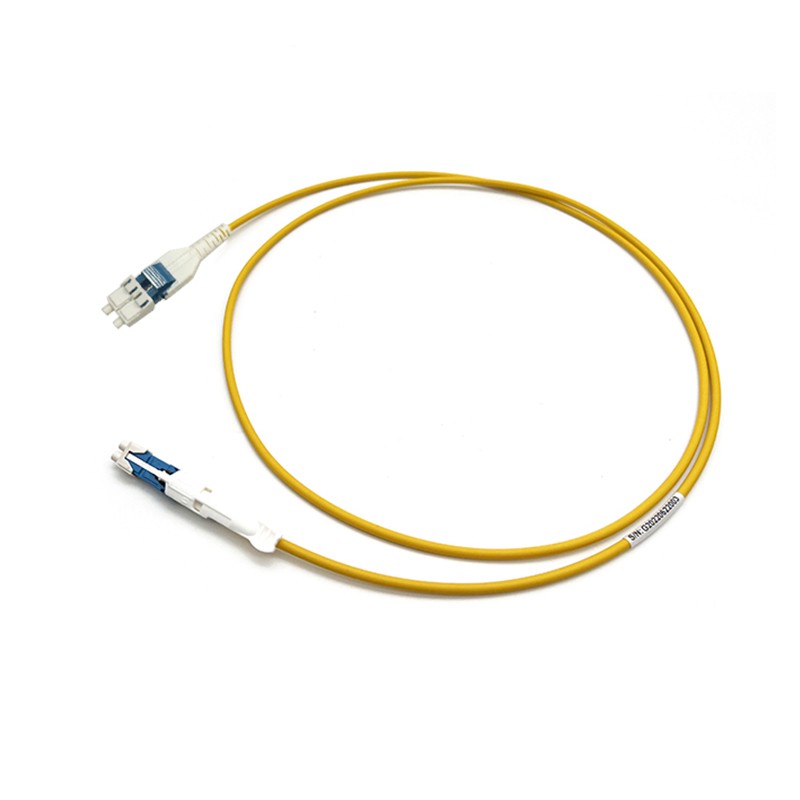

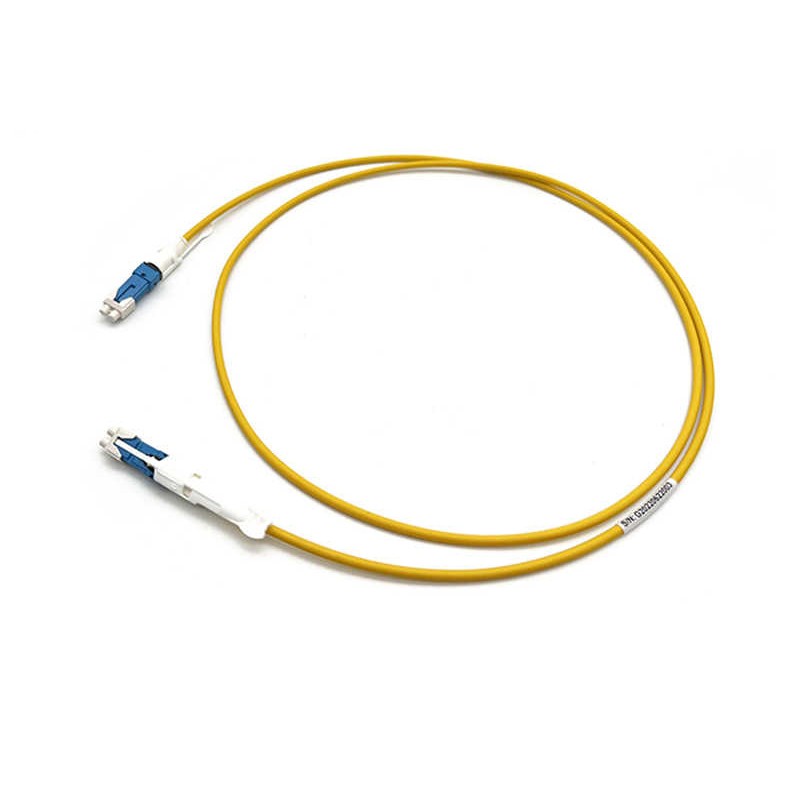

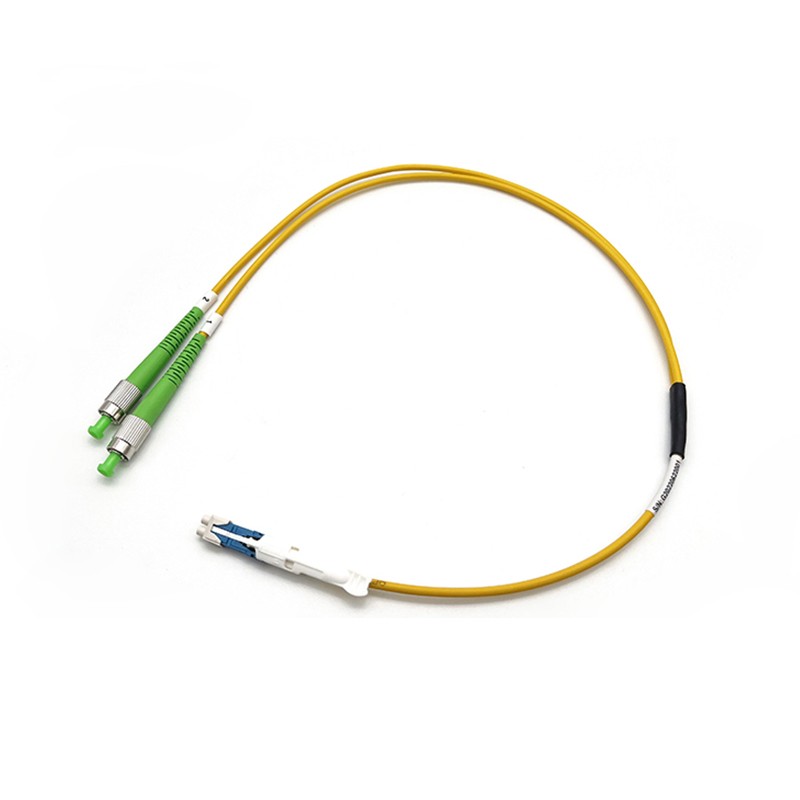

LC UPC patch cord with long pullig rod is an ideal solution for 40G, 100G network upgrades and high-density wiring systems, high-density communication rooms, optical terminals, servers, patch panels and switching equipment, etc., to ensure high-speed and stable transmission of signals.
LC UPC Patch Cord Features
- Four-pass polishing technology is used to provide the best insertion loss and return loss to ensure the stability of its transmission.
- A-grade precision ceramic ferrule ensure stable and reliable performance, ultra-low insertion loss, and better coaxiality and dimensional accuracy to realizes lossless data transmission.
- LSZH outer sheath, plus bend-insensitive optical fiber, meets special requirements for bending performance.
- One tube dual core + push-pull structure, more convenient operation, reduces cable channel blockage, and saves a lot of space.
- New environmentally friendly material, high temperature resistance, durable and non-deformed, non-breakage, anti-falling, professional fully automated standard production, minimizes manual intervention, and stable quality.
LC Uniboot Patch cord Application
This LC LC patch cord duplex single mode with uniboot and pulling rod are widely used in data center, fiber optic communication systems, fiber-to-the-home, fiber optic data transmission, fiber optic CATV, LAN, fiber optic test equipment, fiber optic sensors, etc.
LC UPC Patch Cord Specification
| Item | SM CS LC duplex patch cord |

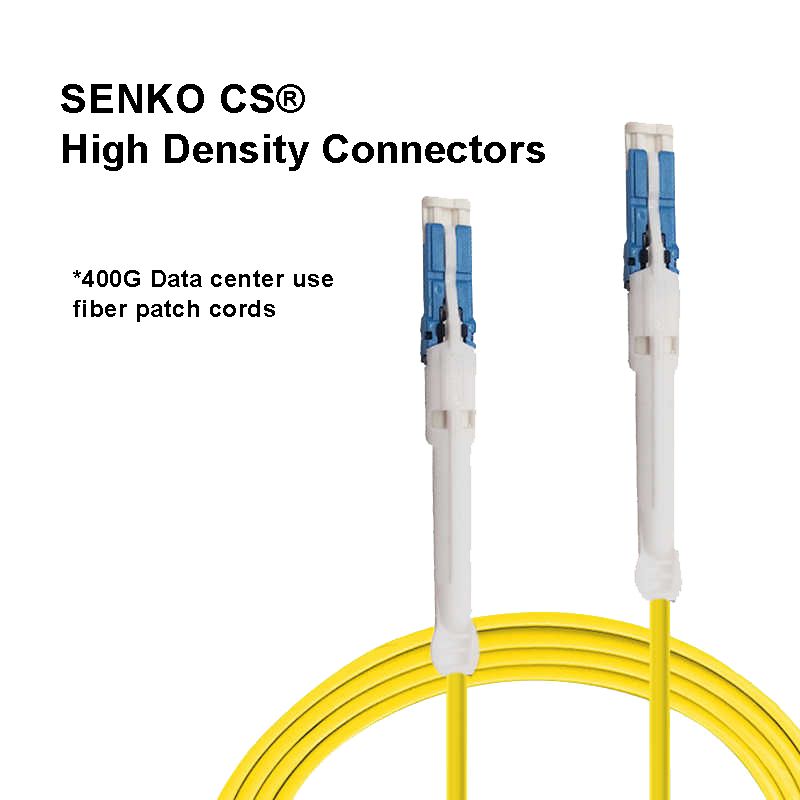

| Polishing mode | SENKO CS® to UPC |
| Fiber type | Corning single mode fiber G.652D SMF-28e |
| Cable color | Yellow |
| Ferrule | Ceramic ferrule 1.25mm |
| Insertion loss | ≤ 0.2dB |
| Plug times | 1000 times |
| Wavelength | 1310nm and 1550 nm |
| Repeatability | ≤ 0.1dB |
| Changeability | ≤ 0.2dB |
| Return loss | ≥ 50 dB |
| Working temperature | -40 ~+85 ℃ |
| Reference standard | TIA-568C.3-2008(Fiber Optic Cabling Components Standard) |
| Test conditions | |
| Temperature and humidity aging | Temperature 85℃, 85% relative humidity, 14 days |
| Temperature cycle | Temperature -40 ~ +75℃, 10%-80% relative humidity, 42 cycles, 14 days |
| Water immersion | Temperature 43℃, PH5.5, 7 days |
| Vibration | Amplitude 1.52mm, frequency 10Hz~55Hz, 2 hours each in X/Y/Z directions |
| Load bending | 0.45kg load 100 cycles (with sleeve) |
| Load torsion | 0.454kg load 100 cycles (with sleeve) |
| Tensile strength | 0.23kg tension (bare fiber), 1.0kg (with sleeve) |
| Impact | 1.8m high, three directions, 8 times/direction |
One-tube dual-core patch cord vs. conventional patch cord
One-tube dual-core patch cord allows bidirectional transmission in a single optical fiber. Compared with conventional patch cords, it saves more time and cost when wiring optical fibers, is more flexible to manage, and is more convenient to wire. Its unique design satisfies data-neutral interconnection and cross-connection requirements for high-density applications.
