Description
LC Fiber Optic Cable Features
- Standard dual LC connector, well connected with standard LC adaptor
- Available single mode and multimode fiber
- IP67 protection, salt-mist proof, humidity proof, dust proof
- Plastic engineering housing, compact design for 2 cores or 4 cores
- Broad temperature range and wide range of indoor and outdoor cables
- Easy operation, reliable and cost-effective installation
LC Fiber Optic Cable Application
- Widely used in FTTA, FTTH, FTTX, FTTP, WIMAX network
- Used for 3G 4G 5G 6G Base station
- Harsh outdoor environments application
- BBU, RRU, RRH, LTE, FTTA connection

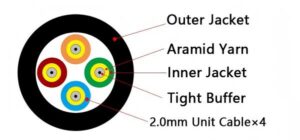

4Cores Field Cable Structure
| Cable count | Out sheath diameter(mm) | Weight (kg/km) | Min. Allowable tensile strength (N) | Min. Allowable crush load (N/100mm) | Min. Bending radius(mm) | Storage temperature (℃) | ||||||
| Short term | Long term | Short term | Long term | Short term | Long term | |||||||
| 4 | 7.0±0.3 | 50 | 600 | 1000 | 1000 | 2000 | 20D | 10D | -20~+70 | |||
LC Fiber Optic Cable Details

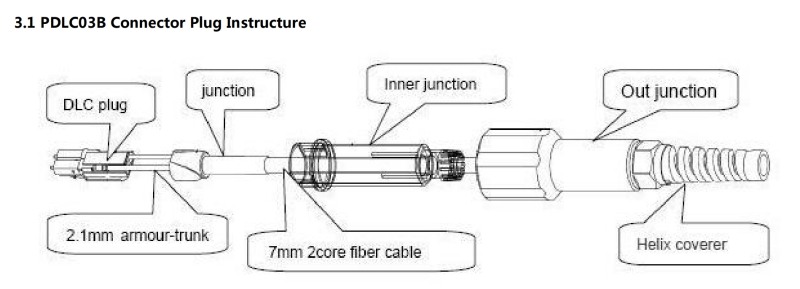

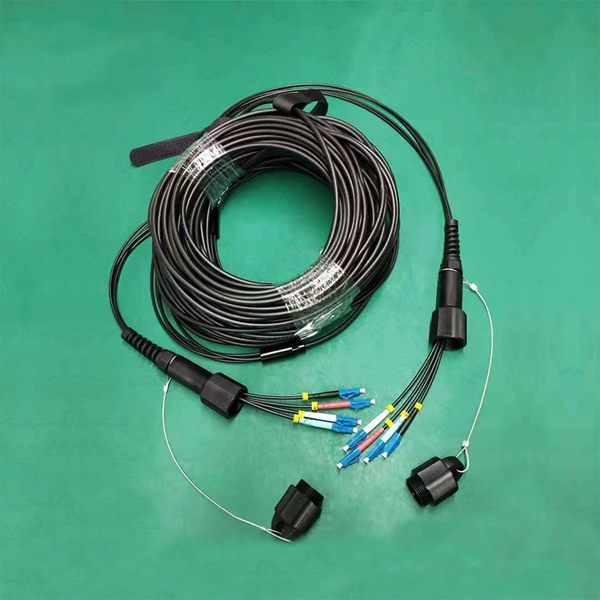

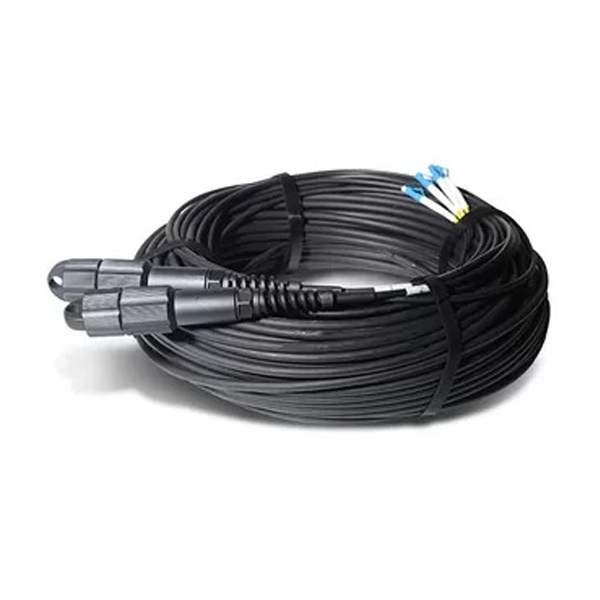

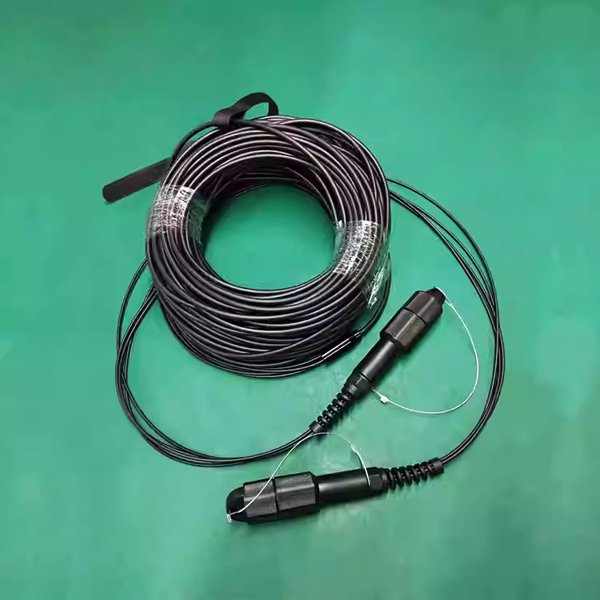

This PDLC patch cord consists of a 4 core FTTA outdoor cable, a PDLC connector, and 2x DLC connector. The patch cord cable length is optional. The PDLC is an IP68 waterproof connector, compatible with some outdoor waterproof boxes from ZTE or Huawei. It is widely used in fiber optic communication, outdoor 5G base stations, and video surveillance.
Outdoor fiber optic connectors are characterized by their robust structure, reliable connection, and waterproof and dustproof properties. They are widely used in long-distance wireless base stations (FTTA) and in harsh outdoor environments such as mines, sensors, and power plants for optical transmission connections. Suitable for outdoor environments, they can withstand severe environmental and climatic conditions.
