Description

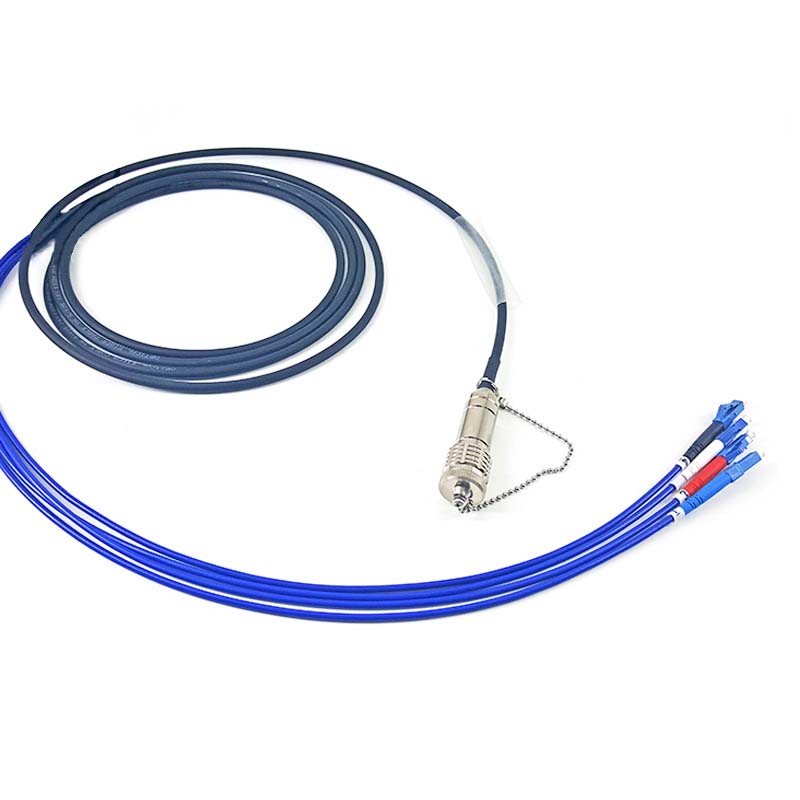

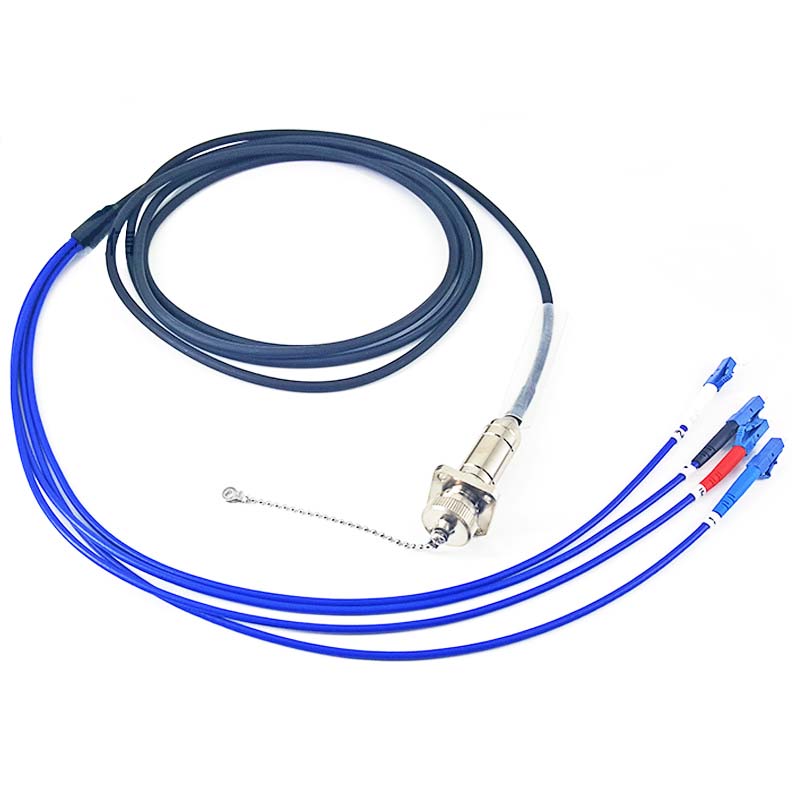

Preterminated Fiber Optic Cable Features
- 4 fibers singlemode or multi mode fiber

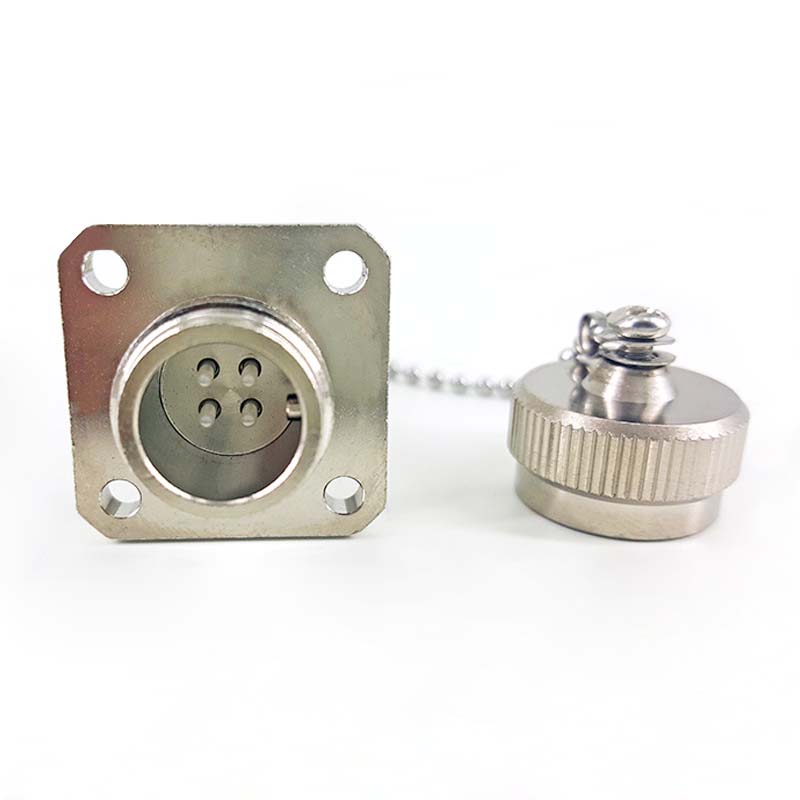

- Built-in socket with square or hexagonal flange
- Extension connector for cable chaining
- Screwed locking mechanism
- Easy and safe installation
- Water proof, dust proof and corrosion resistant
- Water proof protection caps
- EMI protected, RoHs compliant
- Fulfills performance standard IEC 61753-1 Cat.e
Preterminated Fiber Optic Cable Application
- Fiber optic communication applications in harsh outdoor environments
- Rapid connection between emergency communication equipment
- Military communication equipment connection
- Oil field and mine communication connection
- Remote wireless base stations
- Video surveillance system
- Railway signal control application
- Broadcasting and television, fiber optic channels
- EFP fiber optic transmission
- Intelligent substation internal communication
Metal ODC Connector Parameter
| Insertion loss | Single-mode | ≤0.7dB |
| Multi-mode | ≤0.5dB | |
| Return loss | Single-mode | ≥50dB |
| Mechanical properties Operating temperature | ODC Plug | ≤500N (Main Cable) |
| ODC Socket | ≤30N (Branch Optical Cable) | |
| Protection class | -40℃～85℃ | |
| Mechanical properties | IP67 | |
The ODC connector achieve an IP67 waterproof rating, providing excellent waterproof, dustproof, and corrosion-resistant protection, making them well-suited for outdoor use. The stainless steel connector material offers superior electromagnetic pulse protection and resistance to electromagnetic interference.

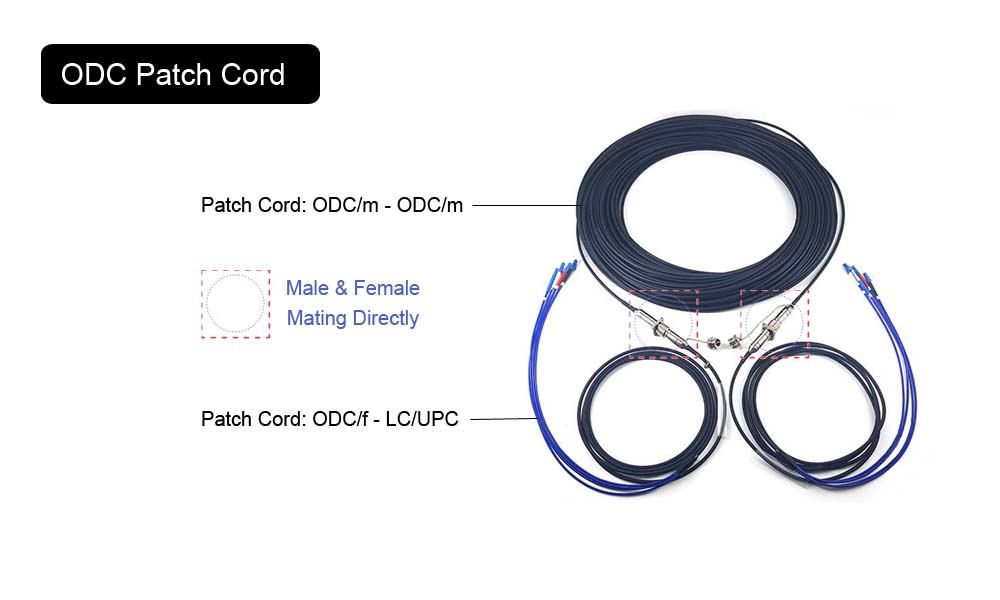

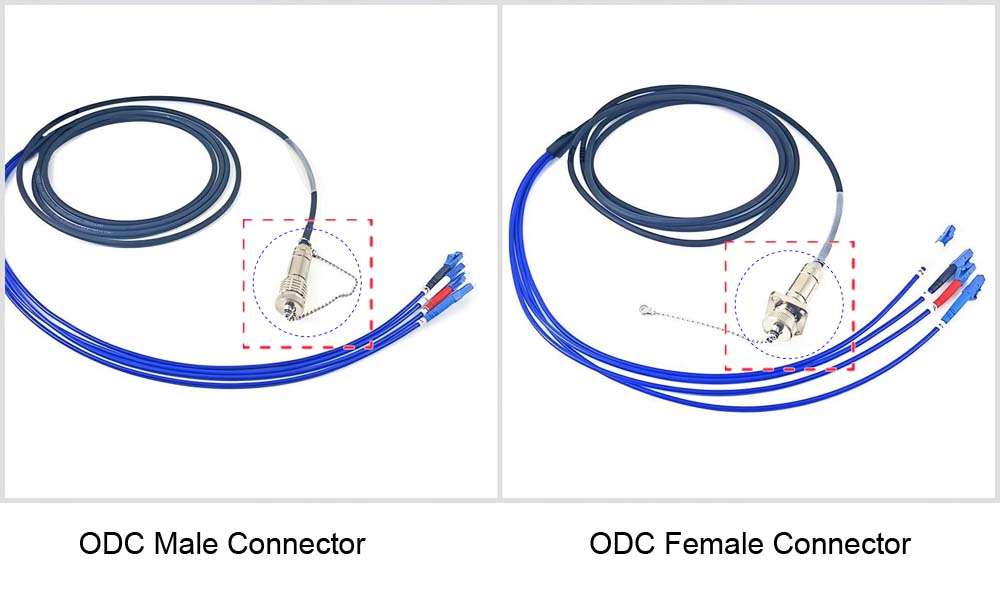

Yingda ODC metal housing connector can be male connector in square shape or female connector in round shape. All standard fiber optic connectors (such as LC, SC, etc.) are compatible. ODC connectors utilize a threaded locking mechanism to ensure a safe and reliable connection. There are guide pins and guide holes, the male and female connector can be easily and quickly installed with one-handed blind mating.
