Description
Fiber Optic Splice Closure Features
- The splice closure main body is made of high quality engineering plastic PP and glass fibr, good strength and anti aging

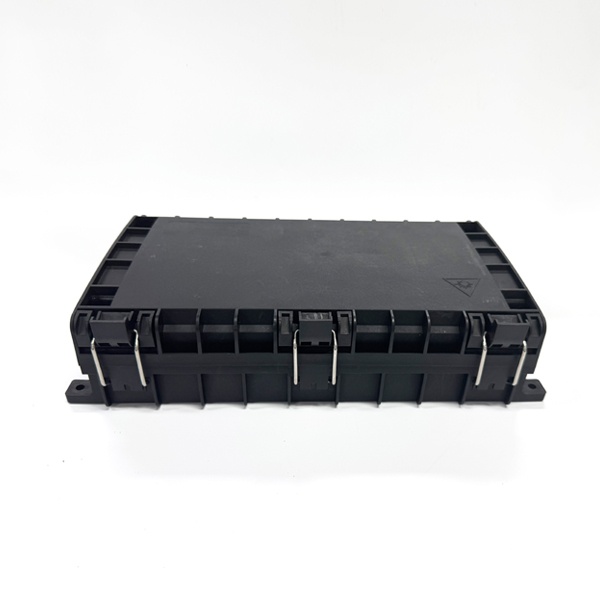

- 3 x stainless steel buckles one side, cover and bottom with hinge design, easy to open and close the box
- The whole FTTH splice closure box is enclosed with sealing ring, good sealing performance
- With rotate plate with different area for splitting, splicing, distribution, winding and surplus fiber storage, easy to install and maintenance
- The drop leaf can be installed 2 pc of 1*8 mini splitter or 1pc 1:16 splitter
- The distribution cable is flat drop cable to bring the fiber to 16 subscribers, 8 pcs at each sides.
- Feeder cable enter in the bottom layer, the flat drop cable exit from the top layer. Both have rubber seals and cable fixtures.
Fiber Optic Splice Closure Specification
| Model | GP-H16 |
| Dimension | mm |
| Max capacity | 24 cores |
| Material | PP+GF |
| Cable inlet | 3in 3out |
| Cable diameter | Ф8-Ф10mm |
| Drop cable port | 16pcs 2x3mm flat type |
| Sealing method | Mechanical sealing |
| Color | Black |
| Protection level | IP65 |
Fiber Optic Splice Closure Details
This splice closure is new model 2025, and with special 3 layer design, the splitting, distribution, storage, and storage area is different, and the cable enter and exit in different layers,dont ditrub each other.

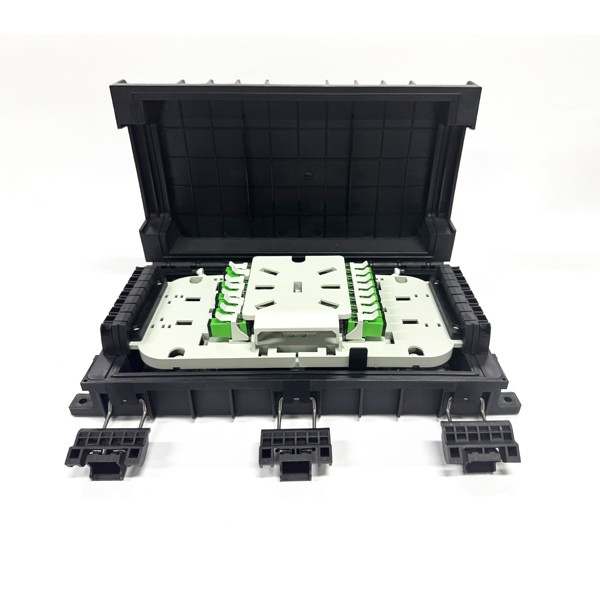

The top of the rotate plate are for fiber optic pigtails or splitter ouputs distribution with SC fast connector with drop cables. And in the middle of the sc adapters are winding tray.
The SC holders are separate with individual holders and and be adjustable with a little angle, which ease the plug in and plug out.

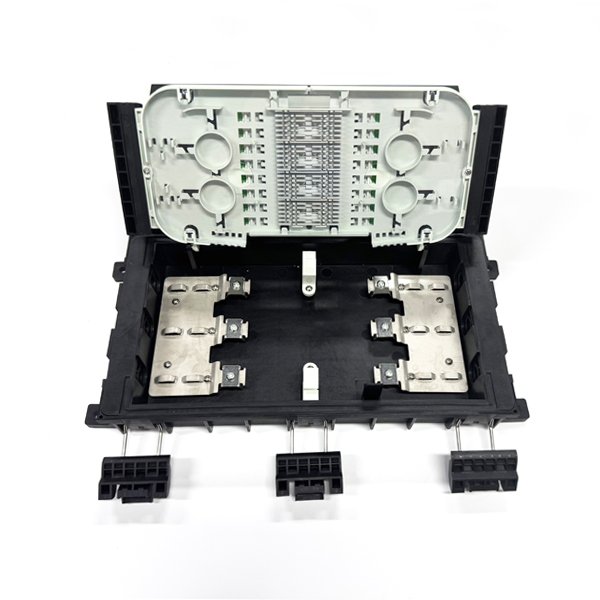

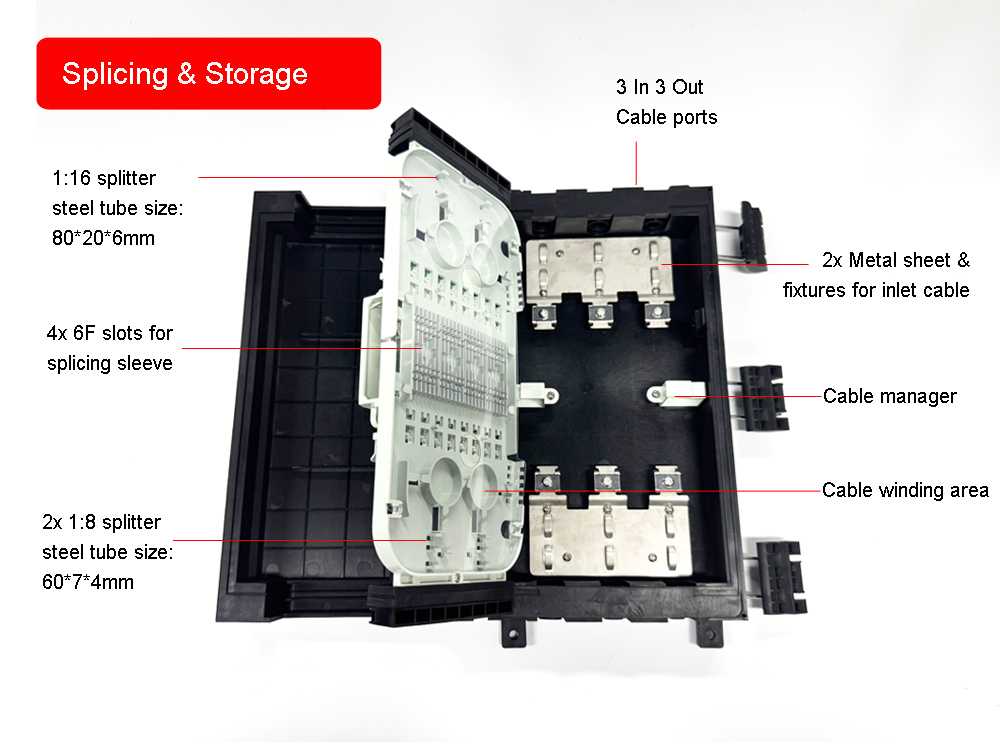

The back of the rotate plate are for splitting steel tube fixtion at both sides, and the middle for the single fiber splicing, max capacity 24 cores.The bottom of the closure is for feeder cable enter and exit, total 6 round ports with rubber seals, the main cable and go through the box without cutting off, and there is cable management rings, strength member fixture rods, and metal sheets for the cable clamps fixing.

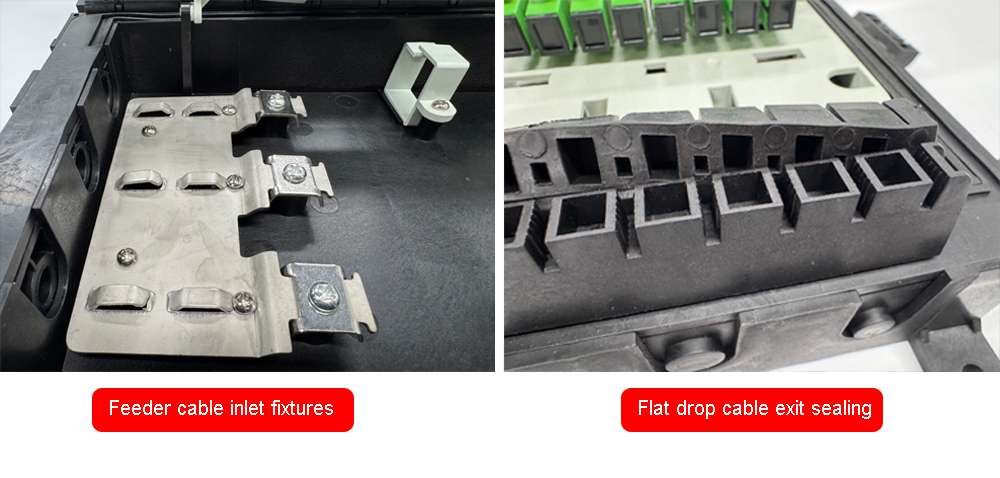

The bottom layer main cable entrance are with metal sheets and rubber seals, the metal kits inside of the box are stainless steel, with humanity design and fix on the bottoms, the upper layer above the cable entrance are cable exit ports for flat drop cable, there are rubber seals with flat holes and plastic slots alignment with the ports, which help hold the cables in place.

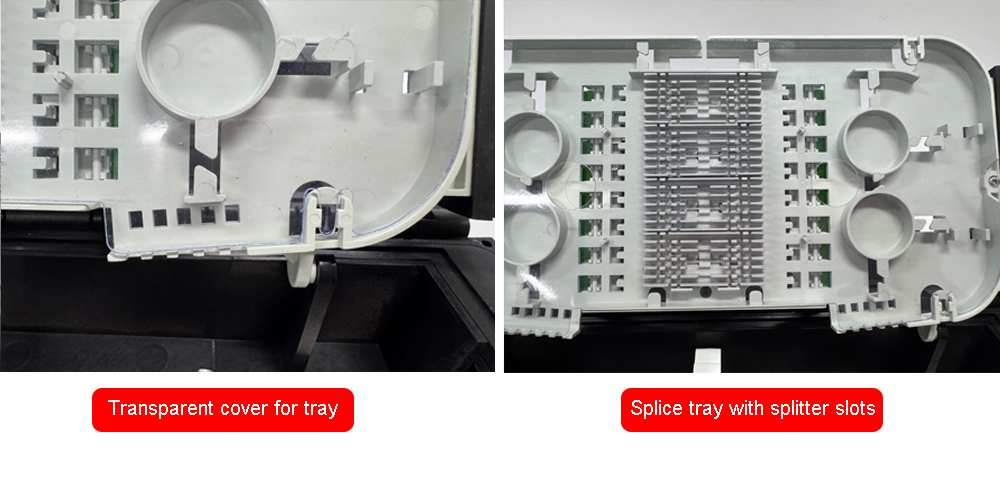

The back splitting tray with a transparent cover, which is not loose with clips in 4 corners, and the splicing slots clip into the tray by hand, with 4pcs 6core parts. The total plate are made of ABS material, gray color, fix on the box tray holders.
