Description
It is an indispensable tool for stripping sheath and strength member. It has the characteristics of small volume, light weight and easy to carry.

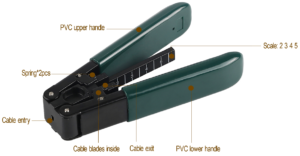

OFC Tool Kit Structure
OFC Tool Kit Features
- It does not damage the optical fiber, can cut horizontally or longitudinally.
- Light weight, small volume and simple operationand carry with.
- There are two straight blades in the transverse direction and one circular blade in the longitudinal direction.
- It is customized tostrip1-core,2-core drop cable to ensure that the optical fiber is not damaged.
- Ergonomic anti-skid handle, made of PVC, is comfortable to grasp and labor-saving in crimping.
- It can not only cut off the out sheath, but also the plastic or metal reinforced core at the same time.
- Carbon steelbody, good hardness, not easy to rust, firm and deformation free, durable and long service life.
- Sharp jaws, fast cutting speed.
- The latest upgraded return spring makes fiber stripping easier.
- Clearstripping scale, fast to fix length and cut, save time and material.
OFC Tool Kit Application
network cabling, optical cable construction, optical fiber to the home
OFC Tool Kit Technical Parameter
| ITEM | Drop cable stripper |
| Model | YDCS-23 |
| Fiber count | 1core, 2core |
| Applicable cable | 2.0*3.0mm drop cable, 2mm / 3mm indoor cable |
| Fiber coating diameter | Φ250um & φ900um |
| Fiber cladding diameter | 125um |
| Strength member wire | FRP / steel wire |
| Body Material | carbon steel |
| Net weight | 0.17kg |

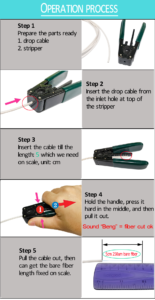

How to use this tool?
