2U Rack Mount Fiber Optic Patch Panel, 48/96 Port, SC/LC/ST Compatible, Metal Chassis, for Data Centers

GPRS-0248 is sliding type fiber optic patch panel that suitable for the protective connection of loose tube optical cables or bundled pigtails and jumpers, branch optical cables and jumpers, steel tube type PLC splitters and jumpers, jumpers and jumpers. It is 2U height for 48~96 fibers connection and distribution. Its bracket support 19inch or 21inch rack mounted application.

Description

Features

1) It is made of high-quality cold roll steel & the surface is sprayed with electrostatic powder.

2) The front door has a hinge, a flip-type structure with elastic door buckle locking method.

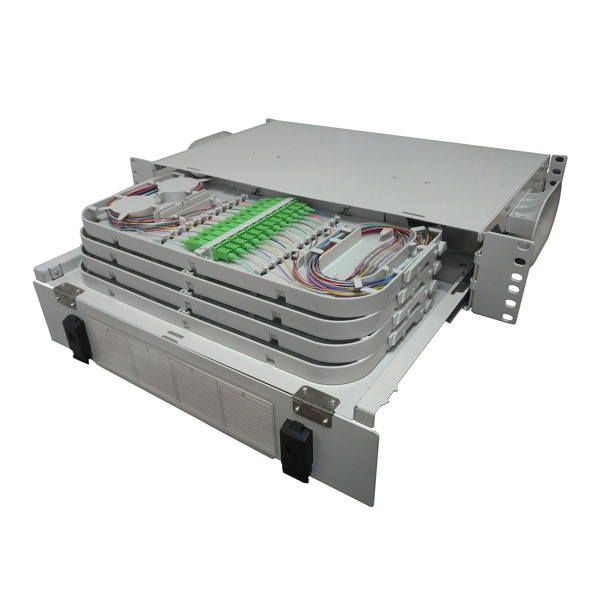

3) Metal pull-out tray with slide rail, stainless steel limit buckle on the side and limit belt on the back to ensure high reliability.

4) The fiber splice stray is made of high-quality plastic, including the fiber splicing module, fiber arrangement module, and adapter panel, which can be disassembled and interchanged.

5) The splice tray is installed on a stepped bracket, which can be superimposed according to the number of U. There are supporting members on the side of the tray, which can be flipped, and the fiber splicing is convenient.

6) There are horn-shaped fiber outlet ears on both sides of the box, which can well protect fiber cables and pigtails.

7) Pull-out chassis is suitable for standard 19 or 21 inch cabinet or rack installation.



Specification:

Model Dimension

(mm)

Material Splice tray Qty Splicing capacity Each splice tray adapter ports
GPRS-0248 440x277x88.9 Cold roll steel chassis +

ABS plastic splice tray

 4pcs Each tray with 12FO module, max. 48fibers;

Each tray with 24FO module, max.96 fibers.

12 FC simplex, 12 SC simplex, 12 LC duplex
