Description
24 Port ST Sliding Fiber Patch Panel is 19 inch metal sliding rail rack mount fiber optic patch panel, it is the auxiliary equipment for terminal wiring in optical fiber transmission communication network, and suitable for indoor optical cable splice directly and branch connection, and protection of the optical fiber. This fiber patch panel is loaded with 3pcs 1×8 mini splitters steel tube, all the optical splitters are fixed inside of the splice tray.
ST Sliding Fiber Patch Panel Features

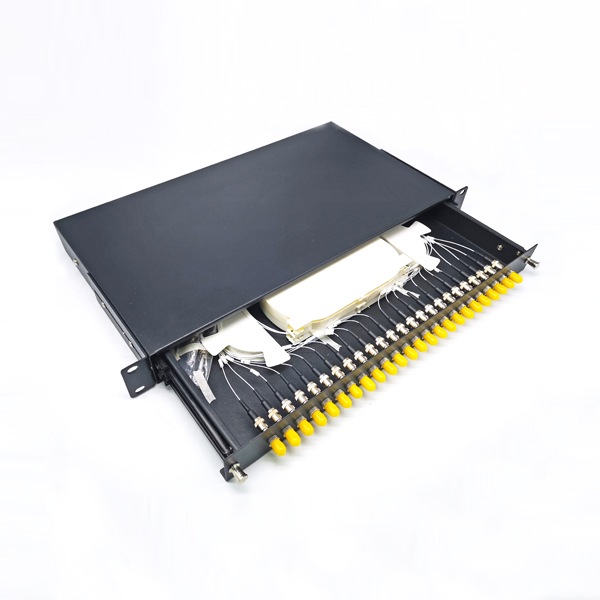

- Stainless steel metal slide tray, easy to slide out of the inner part for distribute,fusion and storage.
- Front door is locked by hinge, can be take off, which is dustproof and user friendly design.

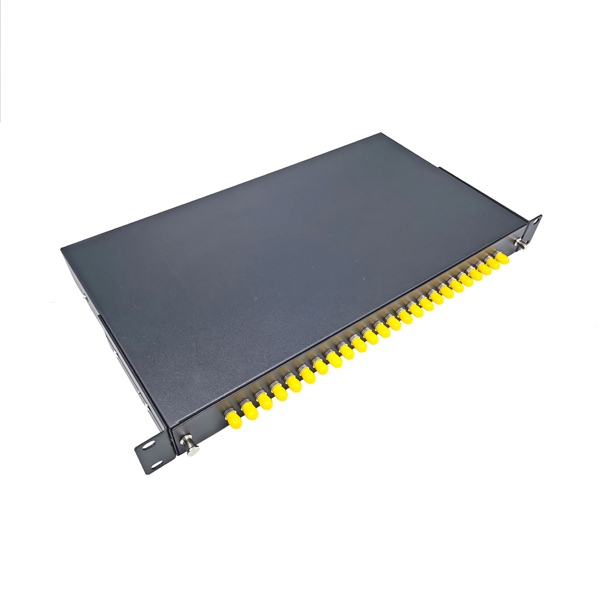

- 24 port ST port front adapter panel is fixed on the bottom, screws is provided, and there is 1pc splice tray maximum splicing 24 fibers.

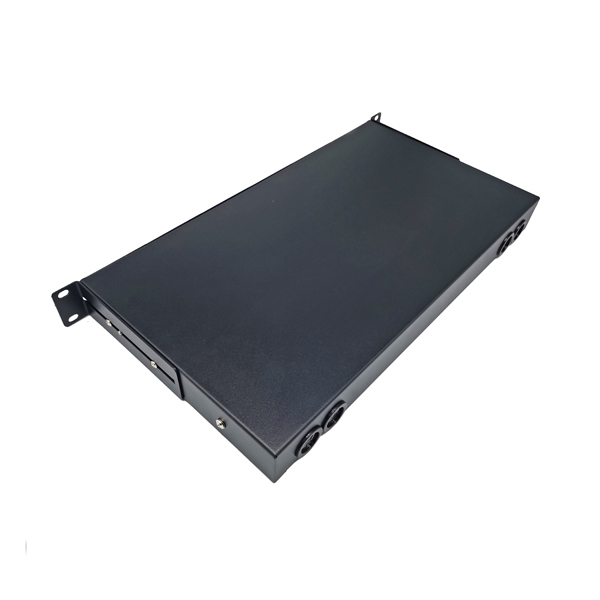

- Back with 4 pcs feeder cable entrance ports are seal with rubber and there are cable routing rods for better cable management.
- There are mounting ears at both sides for 19 inch rack ODF.
- This adapter plate is compatible with FC ST interfaces.
ST Fiber Patch Panel Specification
| Model | Dimension(W*D*H)mm | Max capacity(cores) | SC adapter qty |
| GPSR-1U-SC24 | 430*300*1U | 24 | 24SC (LC duplex) |
| GPSR-1U-FC/ST24 | 430*300*1U | 24 | 24FC/ST |
| GPSR-2U-SC48 | 430*300*1U | 48 | 48SC (LC duplex) |
| GPSR-2U-FC/ST48 | 430*300*2U | 48 | 48FC/ST |
| GPSR-3U-SC96 | 430*300*3U | 96 | 96SC (LC duplex) |
| GPSR-4U-SC144 | 430*300*4U | 96 | 144SC (LC duplex) |

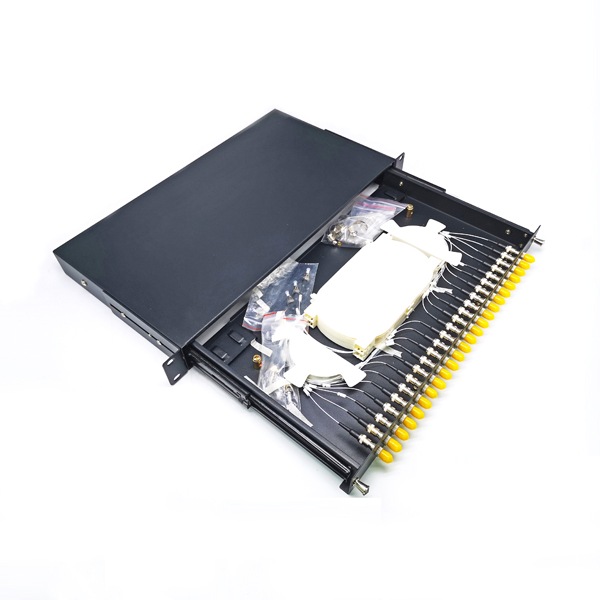

There is a splice tray with cover to hold the splitter steel tubes and pigtails storage and winding for fusion splicing. There is fusion slots in the middle of the tray.
The metal stainless steel sliding rail is fix at both sides, which ease fiber management, and easy to open and close.
Standard accessories for mounting the patch panel include mounting screws, nuts, nylon ties, sleeves, clamps, etc.
