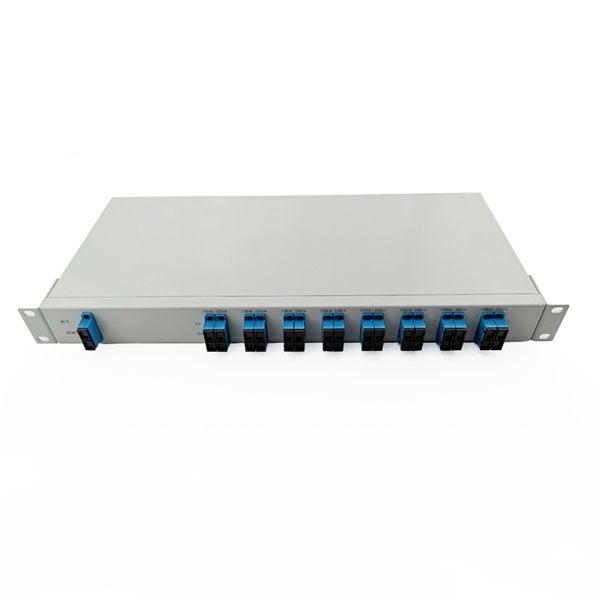

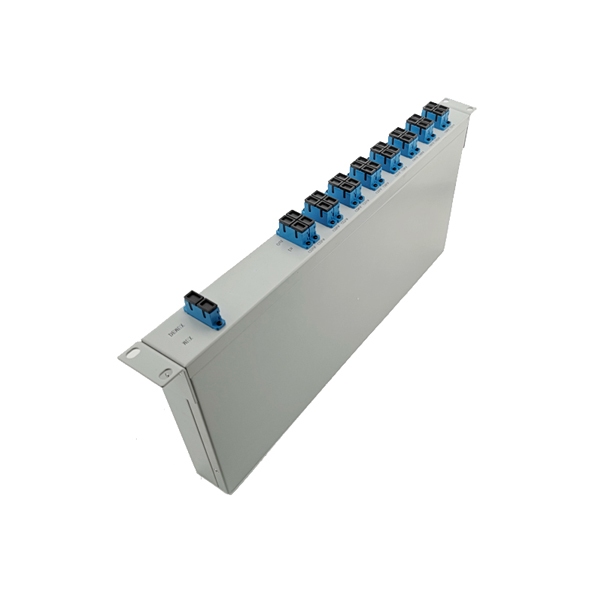

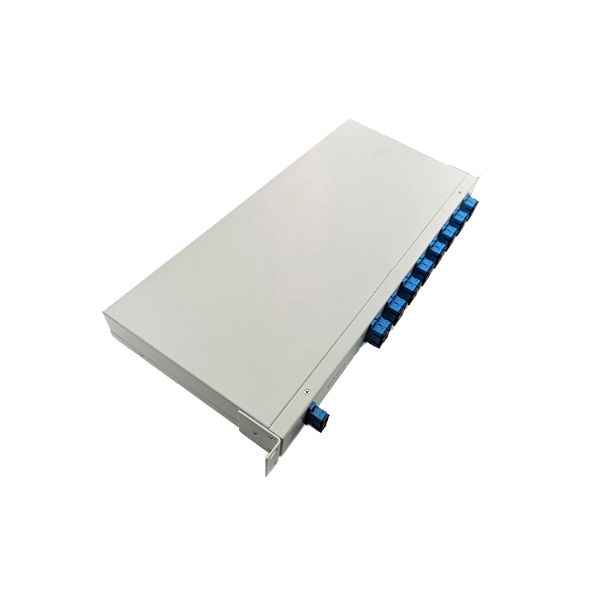

16CH EXP Passive DWDM fiber mux & demux module rack mount 1U with SC/UPC connector, C31 ~ C47 Wavelength

DWDM is dense wavelength division multiplexing, a fiber optics technology for connecting multiple channels over a dark fiber pair using a multiplexer. It maximizes fiber usage and help organizations meet growing demands without laying or leasing more fiber until it’s absolutely necessary.

Category Tags , , Brand:

Description

Features

  • Low Insertion loss and low PDL
  • High channel Isolation
  • Good channel-to-channel uniformity
  • High Reliability and Stability
  • Telcordia Compliant
  • RoHS Compliant



Applications

  • Broadband networks
  • PON Networks
  • CATV system
  • DWDM system



Compliance

  • Telcordia GR-1209-CORE-2001
  • Telcordia GR-1221-CORE-1999
  • ITU-T G.694.1
  • ROHS



Specifications

ParametersUnitValue
Operating Wavelength (nm)nm1525~1565
Channel spacingnm0.8
Channel Port/8CH24CH
Center Wavelength/C20~C27C20~C43
Pass bandnm±0.125
Center Wavelength Accuracynm±0.05
Port Insertion LossdB≤2.5≤3.3
Port  Link Loss(Remote+ HQ)dB≤3.3≤4.0
IsolationAdjacentdB≥30
Non-adjacentdB≥40
RippledB≤0.5
PDLdB≤0.2
RLdB≥40
DirectivitydB≥50
PowermW≤300
Fiber Type/G657A1
Fiber Lengthcm50±5
Connector/LC/UPC
Operating Temperature-20~+70
Storage Temperature-40~+85
Housingmm484x250x44
