Description
Ribbon Fiber Cable Structure
| Cable Count | Outside Diameter | Weight | Minimum allowable Tensile Strength (N) | minimum allowable Crush Load （N/100mm) | Minimum Bending Radius (MM) | Storage temperature | ||||
| （MM) | （MM) | （kg/Km) | short term | long term | short term | long term | short term | long term | （℃） | |
| 2 | 3.5×2.5 | 13.00 | 500 | 100 | 500 | 100 | 20D | 10D | -20+60 | |
| 4 | 3.5×2.5 | 13.00 | 500 | 100 | 500 | 100 | 20D | 10D | -20+60 | |
| 6 | 4.0×2.5 | 15.00 | 500 | 100 | 500 | 100 | 20D | 10D | -20+60 | |
| 8 | 4.5×2.2 | 15.00 | 500 | 100 | 500 | 100 | 20D | 10D | -20+60 | |
| 12 | 4.8×2.2 | 17.00 | 500 | 100 | 500 | 100 | 20D | 10D | -20+60 | |
SM Pigtail Specification
| Item | Value |
| Connector | SC LC FC ST E2000 DIN D4 SMA FDDI MTRJ MU MPO MTP LX.5 VF45, etc. |
| Operating wavelength | 1260-1650nm |
| Fiber type | G652D, G657A2, G657A1, G655, G657B3, OM1 OM2 OM3 OM4,OM5, etc. |
| Cable jacket | LSZH, PVC, PE, TPU, etc. |
| Cable type | Simplex, duplex (zip cord), Φ3mm,Φ2.6mm, Φ2.4mm, Φ2mm,Φ1.6mm, Φ0.9mm, etc. |
| Polish manner | UPC, APC（8°）, PC |
| Cable color | Blue, orange, green, brown, slate, white, red, black, yellow, violet, rose, and aqua |
| Fiber radius of curvature | ≥ 40 mm (G.652D and G.655C); ≥ 20 mm (only G.657A2) |
| Insertion Loss | ≤ 0.1dB (Master) ≤ 0.3dB (Standard) Tested by JDS RM 3750 |
| Return Loss | UPC ≥ 55dB,APC ≥ 60dB (typ.65dB)–Single mode UPC≥ 35dB (typ.38dB)-Multi mode Tested by JDS RM3750 |
| Repeat ability | ±0.1dB |
| Operating temperature | -40 ° C to 85 ° C |
| Geometry Requirement (For Single mode) | Ferrule End face Radius: 7mm ≤ R ≤ 12mm (APC) 10mm ≤ R ≤ 25mm (Standard) Apex Offset ≤ 30 μm (Master) Apex Offset ≤ 50 μm (Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1 |

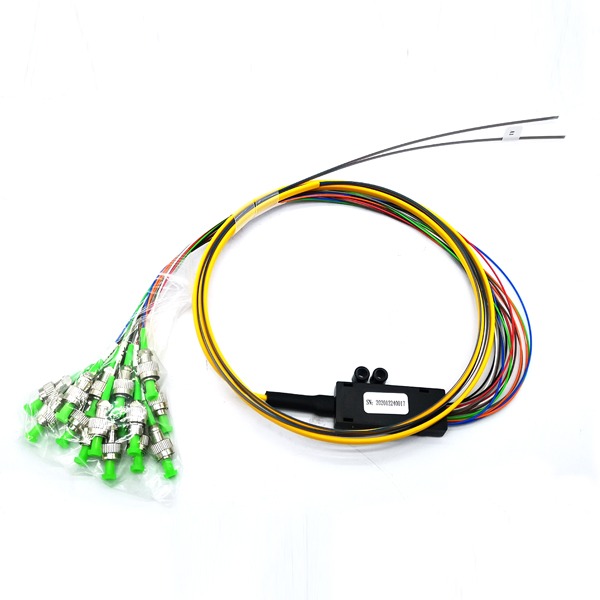

16 Ribbon Fiber SM Pigtail FC/APC Details
SM Pigtail with FC/APC connector green dust cap and boot are mostly used in fiber test instruments, 0.9mm pigtails with short boot, so when plug please take care. And we will pack the onnectors with a separate bag, so as not protect them, no loose.
This fiber SMpigtail are made from bare fibers 2 group of 8 coating fibers 250um, and mark with A1 A2 to distinguish 1-8 fiber and 9-16fibers.

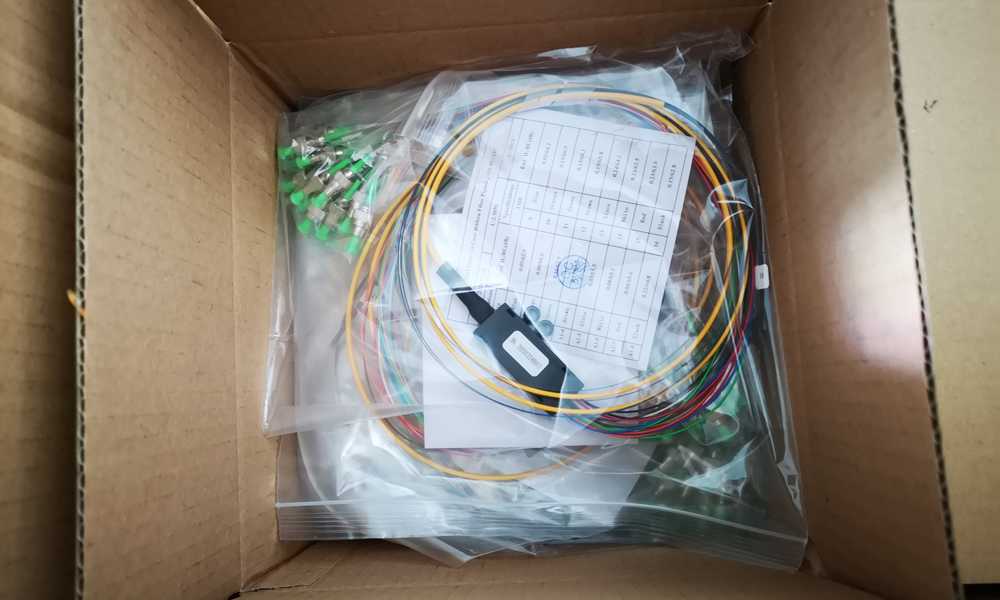

Yingda only offer quaified fibe pigtail patchcords for all customers, and you can find the test report in the individual pack bag with insertion loss, and return loss.
Except inner plastic bag for all F.O. pigtails, we will pack them in master carton boxes, which will provide protection for international transportation.
Custom package, sticker, labels or test report are optional.
SM Pigtail Features
- High repeatability and high return loss
- High stability and good interchangeability
- Low insertion loss and high reliability
- Three types of fiber end faces: PC, UPC, APC
- The entire series of optical fibers can be used: multi-mode (50/125, 62.5/125, OM3, OM4, OM5), single-mode (G.652, G.655, G.657, etc.)
SM Pigtail Application
- Fiber Optic Telecommunications
- LAN (Local Area Network
- FTTH (Fiber To The Home)
- CATV&CCTV
- High speed transmission systems
- Fiber optic sense
