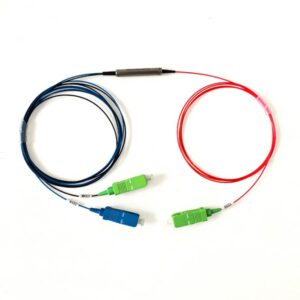

1310 1490 1550 nm Optical FWDM Module Splitter SC 900um SMF T1550nm R1310 1490nm

High isolation low cost FWDM device s based on environmentally stable Thin Film Filters technology. The flitter wdm device combines or separates light at different wavelengths in a wide wavelength range.

Category Tags , , Brand:
SEND INQUIRY

Description

Features

  • Low Insertion Loss
  • High Isolation
  • High stability and reliability



Application

  • Fiber Laser
  • Fiber Amplifier
  • Testing equipment



Specification

Parameter Unit Value
Pass band Wavelength range Nm 1550
Typ. Insertion loss dB 0.6
Max. Insertion loss dB 0.8
Typ. Isolation dB 40
Min. Isolation dB 35
Reflection band Wavelength range nm 1310&1490
Typ. Insertion loss dB 0.6
Max. Insertion loss dB 0.8
Typ. Isolation dB 40
Min. Isolation dB 35
Max. PDL dB 0.25
Max. PMO dB 0.1
Min. Return loss dB 50
Fiber type Corning SMF-28e
Max. Average optical power mW 300
Max tensile load N 5
Operating temperature ℃ -5~+70
Storage temperature ℃ -40~+85

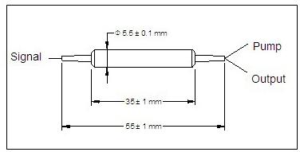

Dimension mm 5.5*35 steel tube or 100*80*10mm ABS box

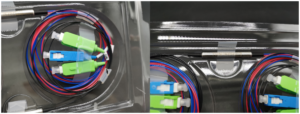

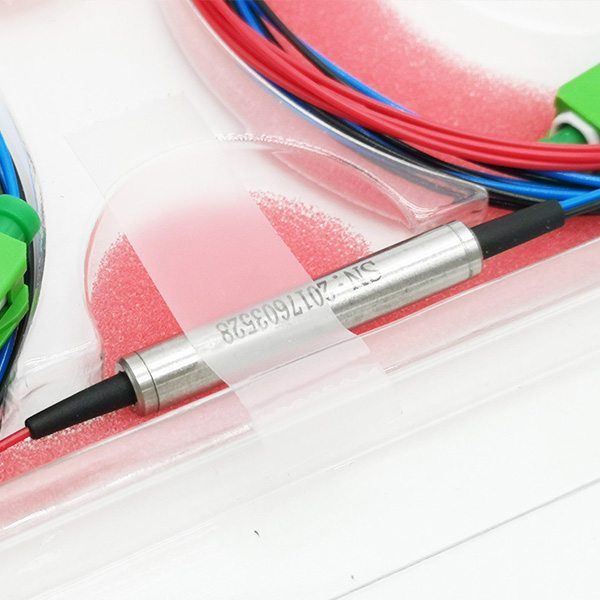

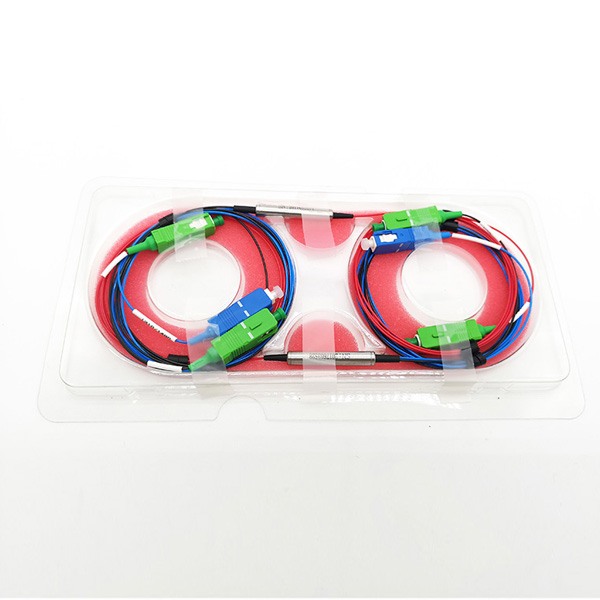

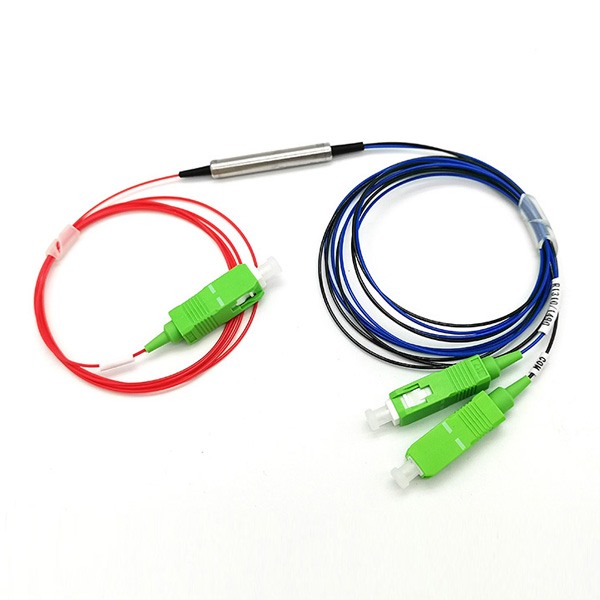

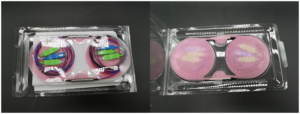

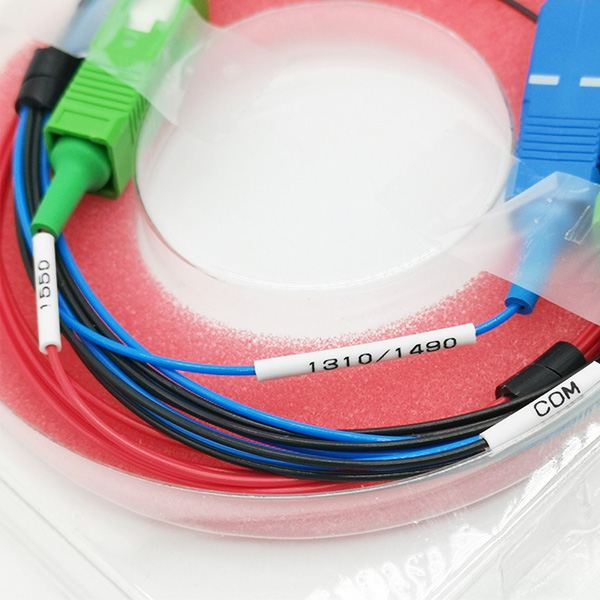

Detailed Display

1310 1490 1550 nm optical fwdm module splitter sc 900um smf t1550nm r1310 1490nm

1310 1490 1550 nm optical fwdm module splitter sc 900um smf t1550nm r1310 1490nm

1310 1490 1550 nm optical fwdm module splitter sc 900um smf t1550nm r1310 1490nm

1310 1490 1550 nm optical fwdm module splitter sc 900um smf t1550nm r1310 1490nm
