Description
Pigtail Fiber Connector Specification
| Item | Value |
| Connector | ST |
| Operating wavelength | 1260-1650nm |
| Fiber type | G652D, G657A2, G657A1, G655, G657B3, OM1 OM2 OM3 OM4,OM5, etc. |
| Cable jacket | LSZH, PVC, PE, TPU, etc. |
| Cable type | Simplex, duplex (zip cord), Φ3mm,Φ2.6mm, Φ2.4mm, Φ2mm,Φ1.6mm, Φ0.9mm, etc. |
| Polish manner | UPC, APC（8°）, PC |
| Cable color | Yellow, white, blue, orange, gray, green, etc. |
| Fiber radius of curvature | ≥ 40 mm (G.652D and G.655C); ≥ 20 mm (only G.657A2) |
| Insertion Loss | ≤ 0.1dB (Master) ≤ 0.3dB (Standard) Tested by JDS RM 3750 |
| Return Loss | UPC ≥ 55dB,APC ≥ 60dB (typ.65dB)–Single mode UPC≥ 35dB (typ.38dB)-Multi mode Tested by JDS RM3750 |
| Repeat ability | ±0.1dB |
| Operating temperature | -40 ° C to 85 ° C |
| Geometry Requirement (For Single mode) | Ferrule End face Radius: 7mm ≤ R ≤ 12mm (APC) 10mm ≤ R ≤ 25mm (Standard) Apex Offset ≤ 30 μm (Master) Apex Offset ≤ 50 μm (Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1 |
Pigtail Fiber Connector Details

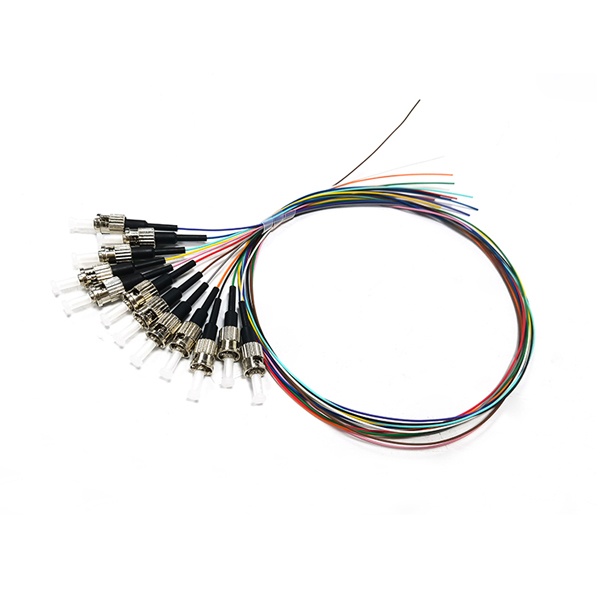

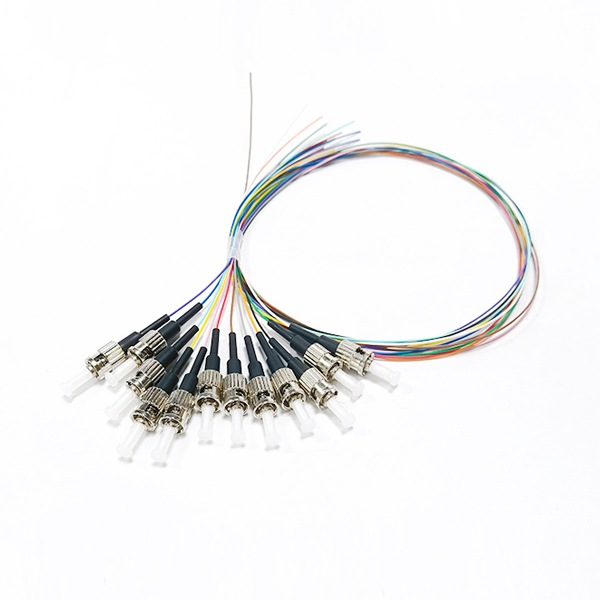

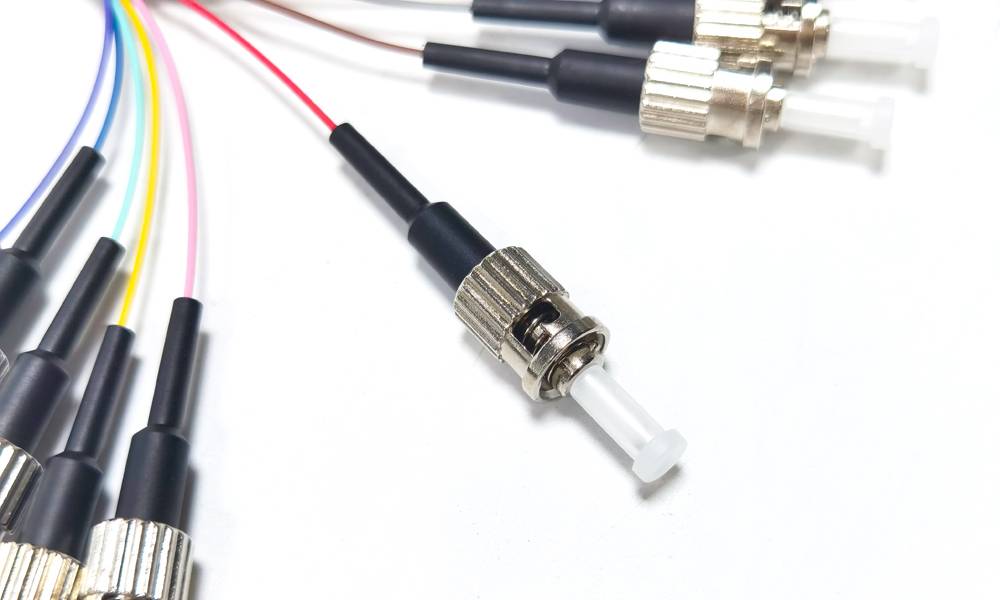

The ST connector adopts a snap-on structure, is made of metal material and a black plastic boot, which makes the fixation more stable and secure. It is suitable for fiber optic distribution frames and high-frequency vibration environments.

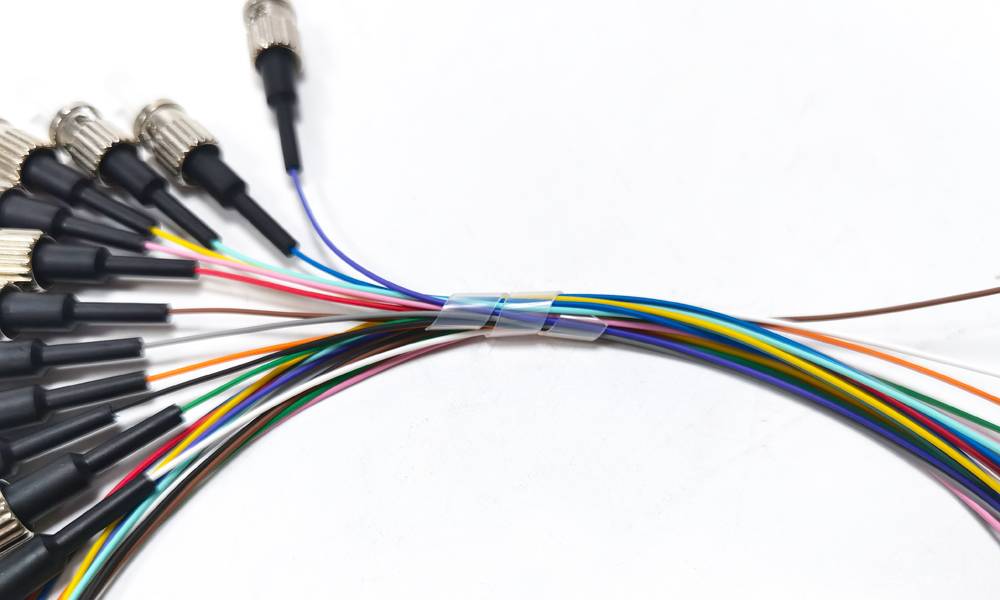

Multi-core pigtails are generally bound with a rolled ribbon or spiral tube at a distance from one end of the fiber optic connector. On the one hand, this can fix the optical cable to prevent it from shaking randomly, and on the other hand, it can keep the optical cable and the tail at a certain angle to prevent excessive bending and causing the optical fiber to break.

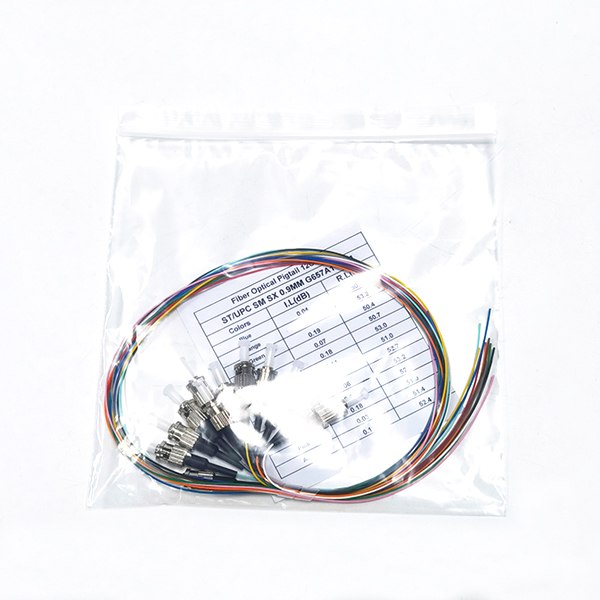

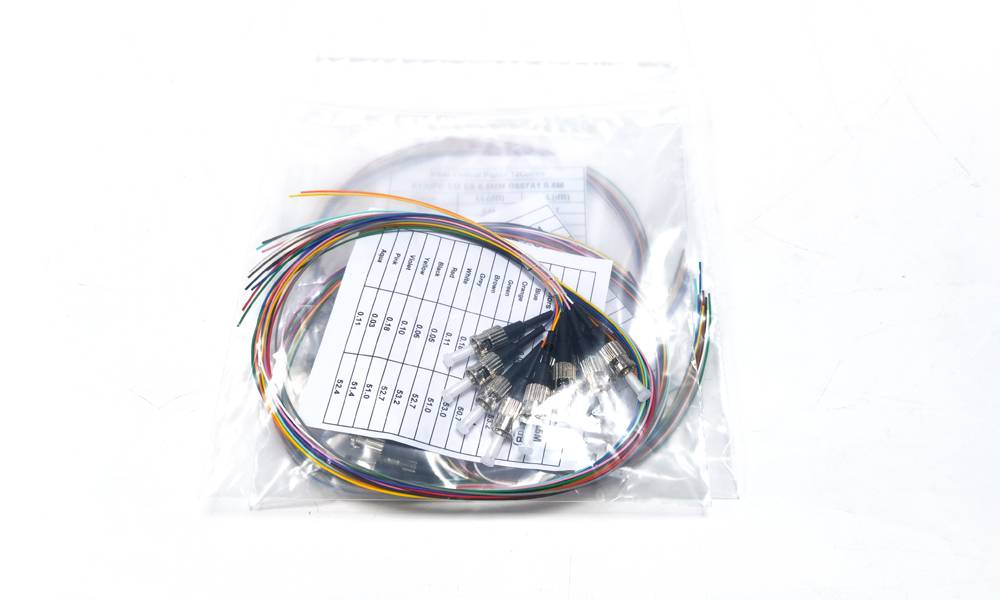

All pigtail fiber connectors whether single-core or multi-core, are packaged in individual PP bags and come with a fiber optic test parameter report. Only qualified fiber pigtails are shipped. Please feel free to purchase.
Pigtail Fiber Connector Features
- High repeatability and high return loss
- High stability and good interchangeability
- Low insertion loss and high reliability
- Three types of fiber end faces: PC, UPC, APC
- The entire series of optical fibers can be used: multi-mode (50/125, 62.5/125, OM3, OM4, OM5), single-mode (G.652, G.655, G.657, etc.)
Pigtail Fiber Connector Application
- Fiber Optic Telecommunications
- LAN (Local Area Network
- FTTH (Fiber To The Home)
- CATV&CCTV
- High speed transmission systems
- Fiber optic sense
