Description
GPSR Sliding Fiber Patch Panel (ODF box) is 19 inch standard size sliding drawer type rack mount fiber optic patch panel, it is the auxiliary equipment for terminal wiring in optical fiber transmission communication network, and suitable for indoor optical cable splice directly and branch connection, and protection of the optical fiber.
GPSR-2LC12 Sliding Fiber Patch Panel Features

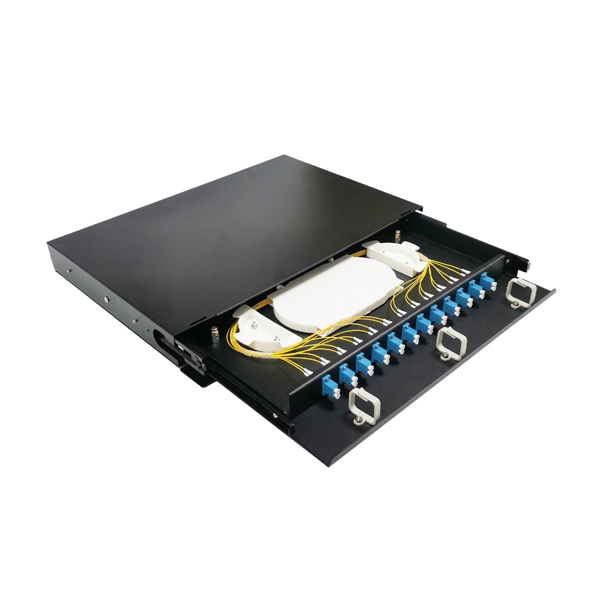

- Stainless steel metal slide tray, easy to slide out of the inner part for distribute,fusion and storage.
- Front door is locked by hinge, can be take off, which is dustproof and user friendly design.
- 12 port LC duplex port front adapter panel is fixed on the bottom, screws is provided, and there is 1pc splice tray maximum splicing 24 fibers.
- Back with 4 pcs feeder cable entrance ports are seal with rubber and there are cable routing rods for better cable management.
- There are mounting ears at both sides for 19 inch rack ODF.
- This adapter plate is compatible with SC LC interfaces.
GPSR-2LC12 Sliding Fiber Patch Panel Specification
| Model | Dimension(W*D*H)mm | Max capacity(cores) | SC adapter qty |
| GPSR-1U-SC24 | 430*300*1U | 24 | 24SC (LC duplex) |
| GPSR-1U-FC24 | 430*300*1U | 24 | 24FC |
| GPSR-2U-SC48 | 430*300*1U | 48 | 48SC (LC duplex) |
| GPSR-2U-FC48 | 430*300*2U | 48 | 48FC |
| GPSR-3U-SC96 | 430*300*3U | 96 | 96SC (LC duplex) |
| GPSR-4U-SC144 | 430*300*4U | 96 | 144SC (LC duplex) |
This fiber patch panel is drawer type patch panel, with metal sliding rails at both sides.
There are splice trays and cable wiring rods to hold the fibers in place, for storage, splicing and management.

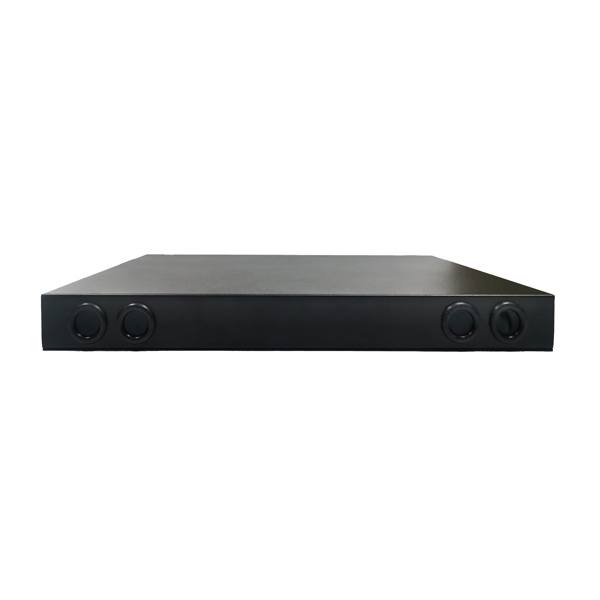

The feeder cable go in the patch panel from back of the box, and there is cable strength member holders inside of the box, and rubber seals waterproof protection.

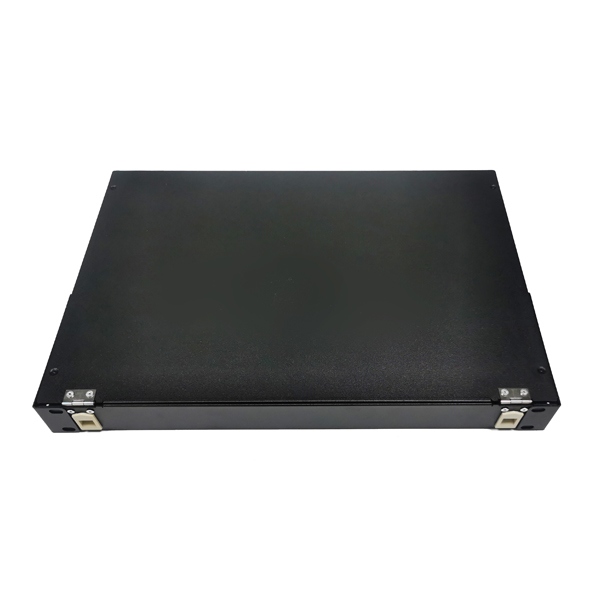

There are cable management area and cable fixtures in the front of the patch panel, and the front door is lock by buckles at both sides, press down can open and even take away. Meanwhile, the mounting kits for ODF will fix on both sides of the patch panel with screws, there is holes reserved for this function.
All fiber patch panels are configured with standard accessories for mounting the patch panel on the rack mount distribution frame, like: mounting screws, nuts, nylon ties, sleeves, clamps, etc.
GPSR sliding patch panel can be 1U, 2U, 3U, 4U height, and 1U maximum can hold LC 96 cores at most. This rack mount patch panel can be black color or white color, it is painting outside for better protection, so it is customize.
