Description
Features
- Applicable in the termination and 19” standard structure
- Rack mount in optical distribution frame ODF
- Suitable for FC ,SC, ST, LC, E2000 adapters
- 2mm Cold rolled steel sheet, with electrostatic spraying

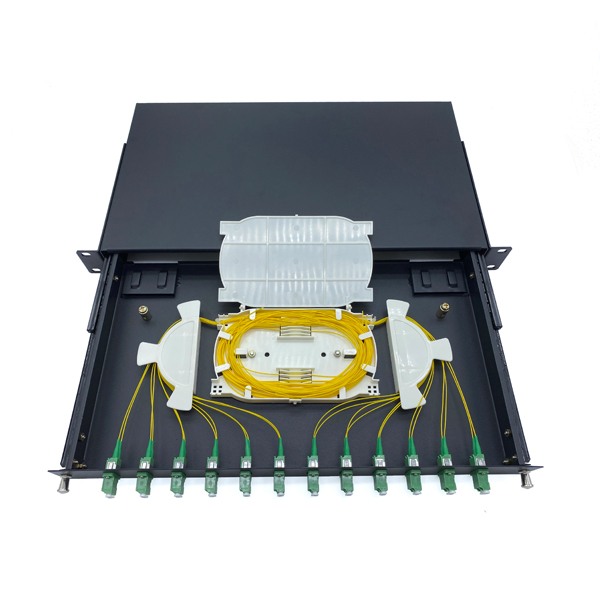

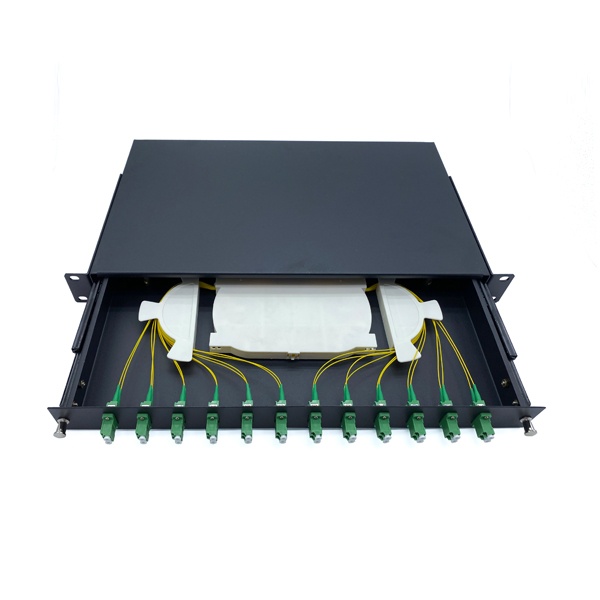

- Metal sliding tray of the splice tray and bottom, easy and fast to operate without open the cover

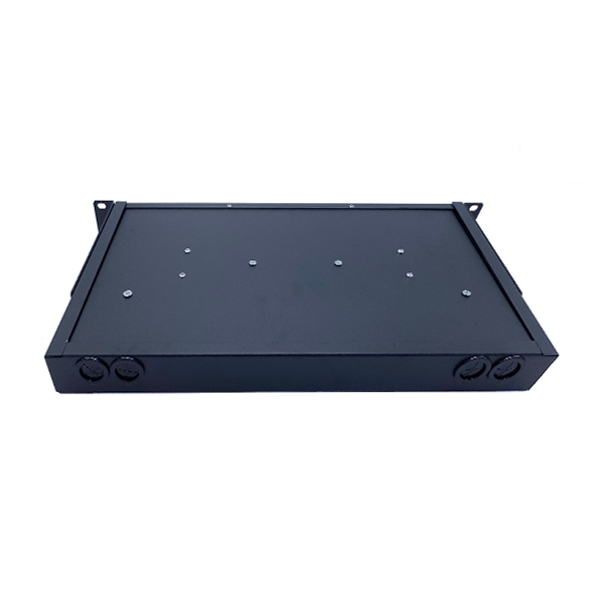

- 4 Cable entry ports at back, diameter can be customized, normally 20mm
- Box color can be customized, white, black, etc.
- Silk print or laser mark both available.
- All the metal parts are stainless steel for long life span guarantee.
Technical Specification
| Width | 482 mm |
| Depth | 300 mm |
| Height | 1U, 2U, 3U, 4U, etc. |
| Max capacity | 144 cores |
| Material | 1.2 mm cold rolled steel SPCC |
| Cable entry port | 4 round port with rubber φ20mm |
| Cable exit port | SC FC LC ST E2000 port |
| Adapter quantity | 144 pcs |
| Material coating | Powder |
| Operating temperature | -10~+85°C |
| Standards | TIA/EIA 568.C, ISO/IEC 11801, ENS50173, IEC60304, IEC61754, EN297-C, CEA/EIA-310-E, ANSI/TIA/EIA-606-A, GR-449-CORE, RoHS |
| IP Rating | IP30 |
| Color | White, black |
Patch Panel Dimension
| Model | Dimension(W*D*H)mm | Max capacity(cores) |
| GPSM-1U-SC24 | 482*300*1U | 24 |
| GPSM-1U-FC24 | 482*300*1U | 24 |
| GPSM-1U-2SC24 | 482*300*1U | 48 |
| GPSM-1U-E200024 | 482*300*1U | 24 |
| GPSR-2U-SC48 | 482*300*1U | 48 |
| GPSR-2U-FC48 | 482*300*2U | 48 |
| GPSM-2U-E200048 | 482*300*2U | 48 |
| GPSR-3U-SC96 | 482*300*3U | 96 |
| GPSR-4U-SC144 | 482*300*4U | 144 |
Connector specification
| Insertion loss | <0.3dB |
| Return loss | >65dB APC, >50dB UPC, >30dB PC |
| Mating durability | 500 times |
| Wavelength | 850-1550nm |
| Standards | IEC61300, IEC61754, ROHS, etc. |
