Description
Dust proof fiber optic patch panel are the auxiliary equipment for terminal wiring in optical fiber transmission communication network, which is suitable for indoor optical cable splice directly and branch connection and protective the fiber.
Rack Mount Fiber Patch Panel Features
- Dummy drawer optical fiber terminal box
- 19 inch rack mount and termination
- 30 degree angled adapter brackets, easier to plug in and out the adapter by fingers
- Suitable for FC, SC, ST, LC, E2000 adapters
- Cold rolled steel sheet, with electrostatic spraying, thickness can be 0.6mm, 0.8mm 1.0mm or 1.2mm
- Max capacity 48 Cores 1U SC Duplex adapter or pigtails
- Artistic appearance, easy for pasting signs or print customer logo or brand.
Rack Mount Fiber Patch Panel Specification
| Model | Dimension (mm) | Max capacity (core) | Carton size(mm) | Qty/ carton (pc) | G.W (kg) |
| GPRF-1U-SC24 | 430*300*1U | 24 | 485*420*350 | 5 | 25 |
| GPRF-1U-FC24 | 430*300*1U | 24 | |||
| GPRF-1U-2SC12 | 430*300*1U | 24 | |||
| GPRF-1U-2SC24 | 430*300*1U | 48 |

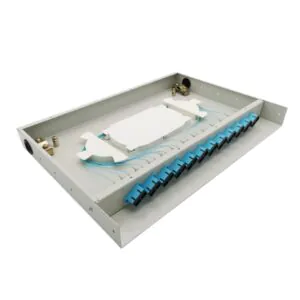

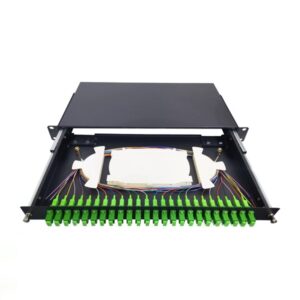

12 port rack mount patch panel will load 1 splice tray with 12 heat shrink protection sleeve slots, the tray is fixed on bottom with screws.
The front adapater plate is 30 degree angled, not horizontal, which is good for plug in and out the dust cap and the pigtails in following construction. 1U rack can maximum hold 24 SC duplex adapters 48 cores single fiber splicing capacity.
All the cable ports are at the back of the ODF, there is galvanized steel cable fixtures for each ports, better protection and management of fiber optic cable.
