Description

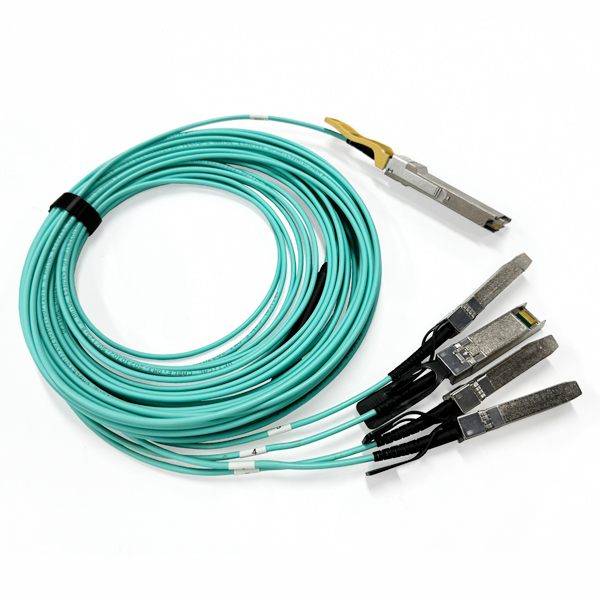

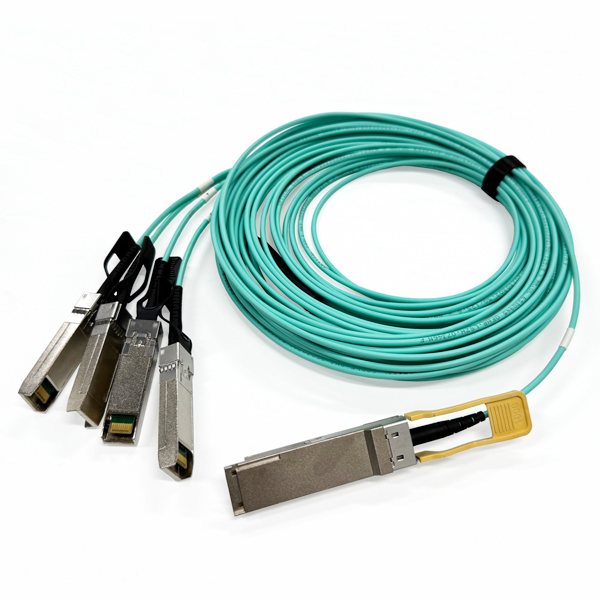

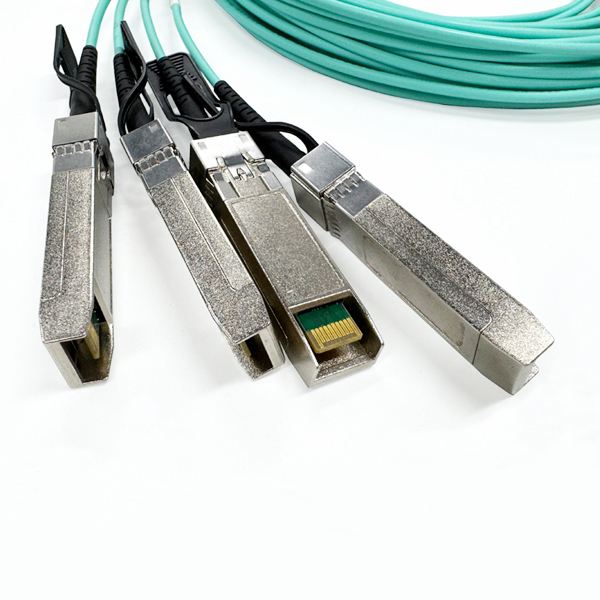

100G QSFP28 to 4 SFP28 AOC is suitable for stacking and clustering between short-distance big data devices, which can save space and reduce costs for data centers. It is a very cost-effective interconnection solution. AOC optical cable allows users to directly connect QSFP28 and SFP28 switches and network cards, and the cable length can be customized within 100 meters through OM3/OM4.
Features
- Hot-swappable QSFP28 and SFP28 form factors
- 4-channel full-duplex active optical cable (including one 100G QSFP28 module and four 25G SFP28 modules)
- 4-channel 850nm VCSEL laser array and PIN photodetector array
- Built-in CDR circuits for receive and transmit channels
- Compliant with QSFP28 MSA, SFP28 MSA, IEEE 802.3bm 100GBASE-SR4 Ethernet and IEEE 802.3by 25GBASE-SR Ethernet standards
- Maximum rate up to 103.125Gbps
- Interconnection up to 70m (OM3) or 100 (OM4) can be achieved through multimode fiber (cable length can be customized)
- The maximum power consumption of the 100G QSFP28 module is less than 2.5W
- Each 25G The maximum power consumption of the SFP28 module is less than 1W
- Operating temperature: 0-70℃
- Power supply voltage: 3.3V
- Compliant with RoHS6.0
Technical Parameter
| Product model | QSFP28-4SFP25G-AOC | Brand | YINGDA |
| Transmission rate | 100G | Warranty | 3 years |
| Transmission distance | 1-100m (optional) | Cable material | PVC environmentally friendly material |
| Packaging form | QSFP28 to 4 SFP28 | Operating temperature | 0~70℃ |
| Cable type | OM3&OM4 (optional) | Power | less than 2.5W |
