1x9 Passive optical splitter GPON PLC SC

Description

PLC SC Splitter Features

Low insertion loss and high return loss
PDL automatic screening system(Ultra low PDL is available)
High reliability and stability
Connector can up to grade B
100% 3D tested by Daisi and Sumix
High-low temperature cycle test
100% test before delivery
FTTH Cabling solution could be design

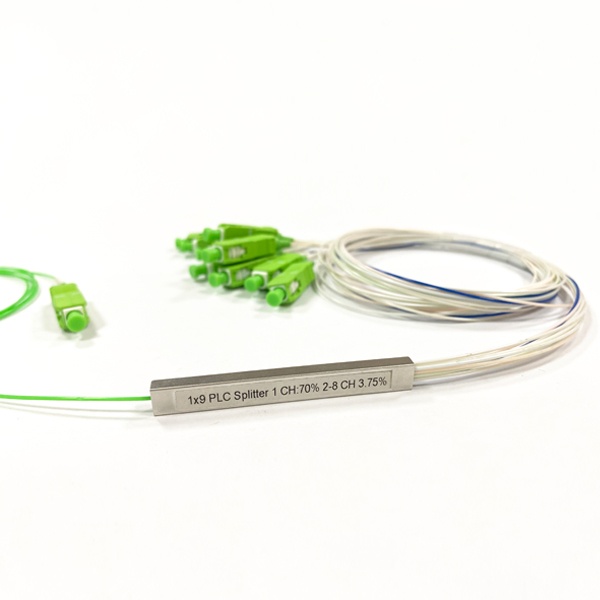

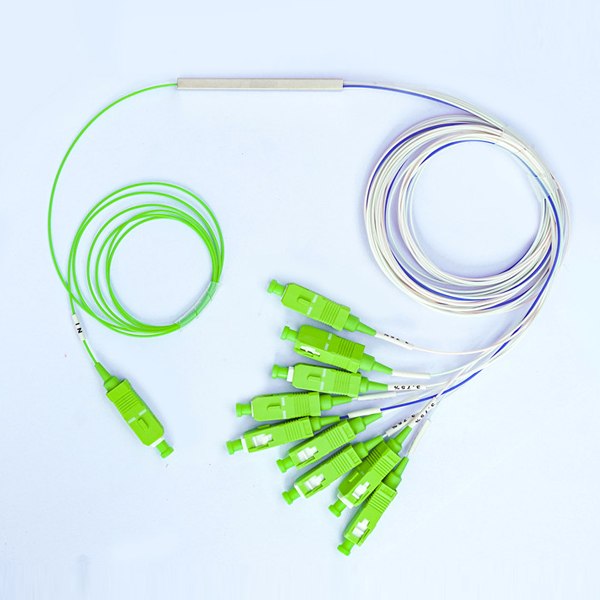

PLC SC Splitter 1×9 70%/30% Specification

Split ratio (%)		70/30
Operating wavelength(nm)		1260-1650
Fiber type		G657A or customized
IL max(dB)	channel 1	2.1
	channel 2-9	16.5
IL uni(dB)	Channel 2-9	1.8
Return loss (dB)		≥55
Directivity (dB)		≥55
PDL (max.)		0.3
Uniformity (max.)		0.8
Wavelength dependent loss (dB)		≤0.3
TDL (max.)		0.5
Operating temperature (℃)		-40 ~+85
Storage temperature (℃)		-40 ~+85
Dimension(mm)	Bare fiber steel tube	60x7x4
	900um Steel tube	60x7x4
	ABS box	120x80x18

Details of PLC SC Splitter 1×9 70%/30%

These optical fiber are typically made of high-quality silica glass, ensuring low optical loss during signal transmission. The fibers come with protective jackets to withstand mechanical stress and environmental factors.

The splitting chip (PLC chip) is at the core. It utilizes planar lightwave circuit technology to precisely split the incoming optical signal into nine output signals with a power distribution of approximately 70% to one output and 30% shared among the remaining eight outputs. This chip is engineered for high splitting accuracy and stability.

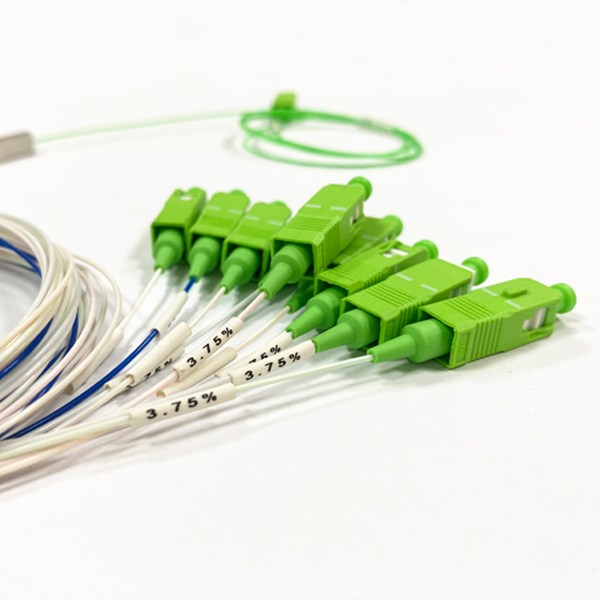

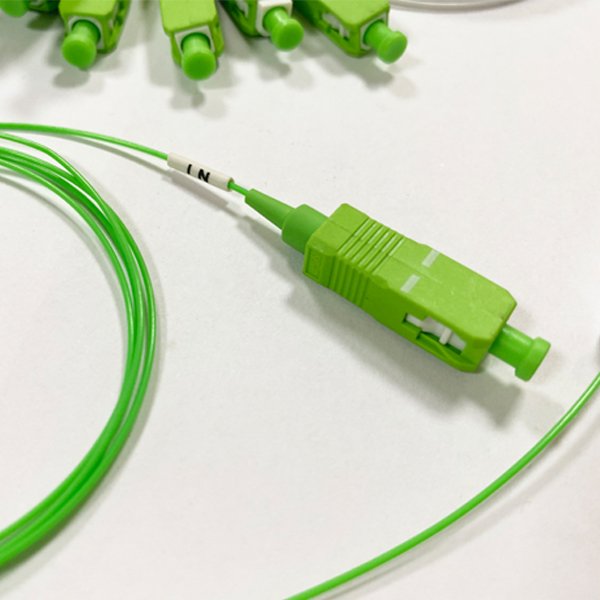

These SC connectors have a push-pull latching mechanism, enabling easy and secure connections. The green color of the connectors is a standard identifier for specific fiber types or connector genders, ensuring compatibility with other SC-compatible fiber optic equipment. The ferrules within the SC connectors are precision-polished to minimize insertion loss and back reflection, guaranteeing efficient optical signal transfer.
