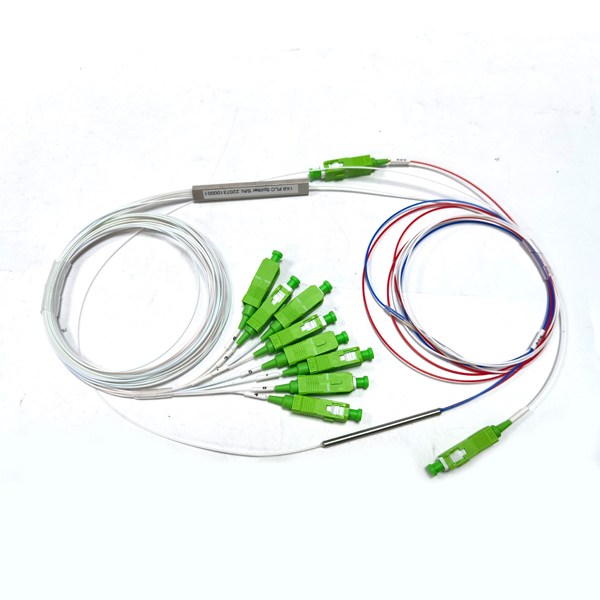

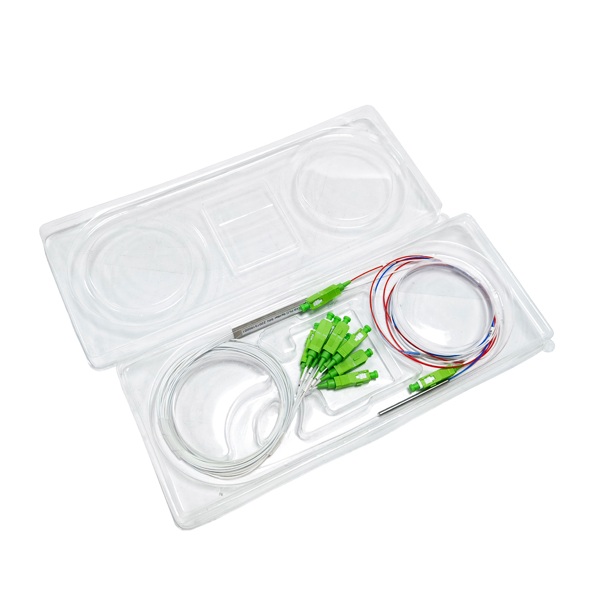

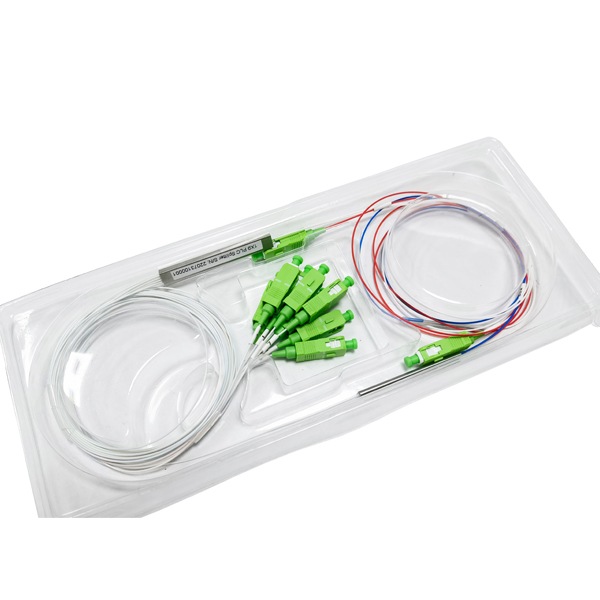

1×9 Fiber optic y splitter cable with SC APC connectors (one output of 1×2 FBT coupler 50:50 splice with input of 1×8 PLC Splitter) ,0.9mm 1mts

1:9 Fiber optic y splitter cable use a plc chip 1×2 fbt coupler and 1×8 plc splitter, in which one of the outputs of 1×2 fused togther with the input pigtail of 1×8 splitter to form 1×9 splitter. This unequal splitter is to divide optical signals to 9 channels in unequal or equal splitting ratio from 1% to 100%.

SKU YDPLC-MM-109-50-50-SASA (fusion) Category

Description

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations. Yingda full arrange PLC Splitters feature small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity.

Fiber Optic y Splitter Cable Features

• Low insertion loss and high return loss
• PDL automatic screening system(Ultra low PDL is available)
• High reliability and stability
• Connector can up to grade B
• 100% 3D tested by Daisi and Sumix
• High-low temperature cycle test
• 100% test before delivery
• FTTH Cabling solution could be design

Fiber Optic y Splitter Cable Application

Passive opticalnetwork like EPON, GPON, BPON, FTTX, FTTH, etc., and supports multiple users to share a single PON interface.

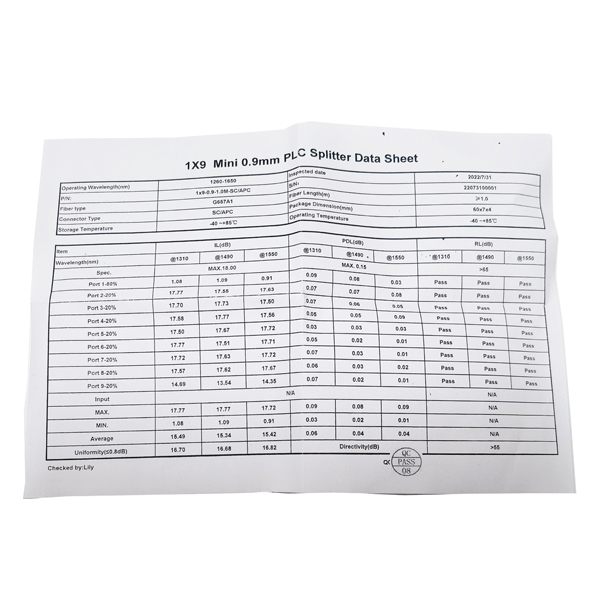

1×2 FBT coupler specification

GradeP GradeA Grade
Spectral ratio (%)1~501~50
Additional loss (typical value) (dB)0.070.1
Insertion loss (max. value) (dB)3.43.5
Polarization sensitivity (dB)0.10.15
Working wavelength (nm)1310±40,1550±40, 1585±40, or custom wavelength
Directionality (dB)≥55
Working temperature(℃)-20 ~ +85
Storage temperature(℃)-40 ~ +85
Fiber typeCorning single mode SMF-28,DS fiber or flexcore
Pigtail length (m)1
Port / Channel1×2 or 2×2,1X3, 1X4, etc
Package size (mm)Package D,E,F,G,H

1×8 PLC Splitter Specification

 Parameters1X8
Fiber lengthSMF-28e or customer decide
Working temperature (nm)1260~1650
Insertion loss (dB)typical10.0
maximum10.5
Uniformity loss (dB)maximum0.8
Return loss (dB)minimum50
Polarization dependent loss (dB)maximum0.3
Directivity (dB)minimum55
Wavelength loss (dB)maximum0.3
Temperature loss (-40~+85℃)maximum0.5
Working temperature (℃)-40~+85
Storage temperature (℃)-40~+85
Notes:
1.Not include connectors
2.Can make special items on customer request
