Description
1×64 PLC Splitter Module Features
- Low Insertion loss
- Low PDL
- Compact Design
- Good channel-to-channel uniformity
- High Reliability and Stability
- Conforms to Telcordia GR-1209&GR-1221, ROHS
1×64 PLC Splitter Module Specifications
1×N, 2XN PLC Splitter
| Split ratio | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 1×128 | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 | ||||
| Operating Wavelength (nm) | 1260-1650nm | ||||||||||||||||
| Fiber Type | G657A1 or customer specified | ||||||||||||||||
| Insertion Loss (dB)S Grade | 4.2 | 7.6 | 10.7 | 14 | 17.2 | 20.8 | 24 | 4.4 | 8 | 11 | 14.6 | 17.8 | 21 | ||||
| Insertion Loss (dB) P Grade | 4 | 7.4 | 10.5 | 13.8 | 17 | 20.4 | 23.7 | 4.2 | 7.7 | 10.8 | 14.1 | 17.4 | 20.7 | ||||
| Loss Uniformity(dB) | 0.6 | 0.8 | 0.8 | 1.0 | 2.0 | 2.0 | 2.0 | 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 | ||||
| PDL(dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | 0.5 | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | ||||
| Return Loss (dB) | 55 | ||||||||||||||||
| Directivity (dB) | 55 | ||||||||||||||||
| Wavelength Dependent Loss(dB) | 0.6 | 0.8 | 0.8 | 1.0 | 1.5 | 2.0 | 0.2 | 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 | ||||
1×64 PLC Splitter Module Details

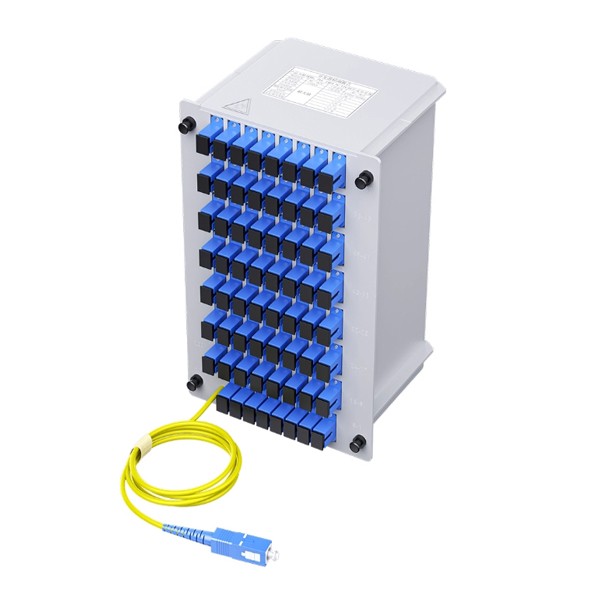

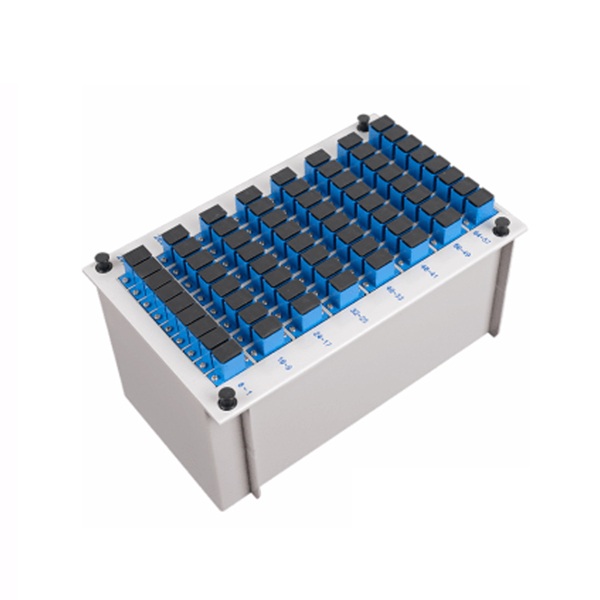

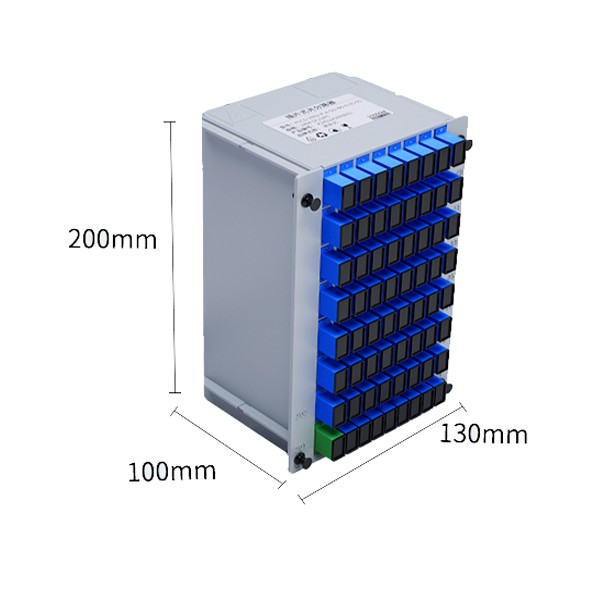

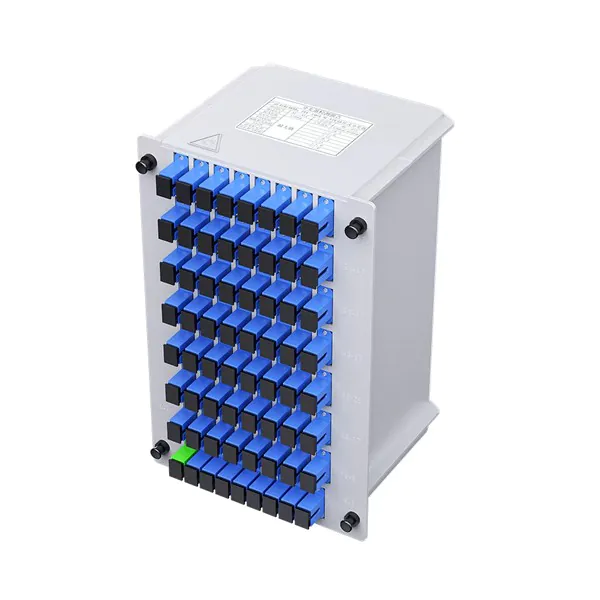

1×64 PLC Splitter cassette size is 130*100*200mm, 8 way 8 SC/UPC adapters, input SC/APC adapters. Compact size, light weight, high impact ABS material, gray color.
All yingda plc splitter cassette will undergo high strict ISO quality management, international and national standards, compliance with Telcordia, CE, TIA, IEC standards, 100% qualified, then can deliver to end users.

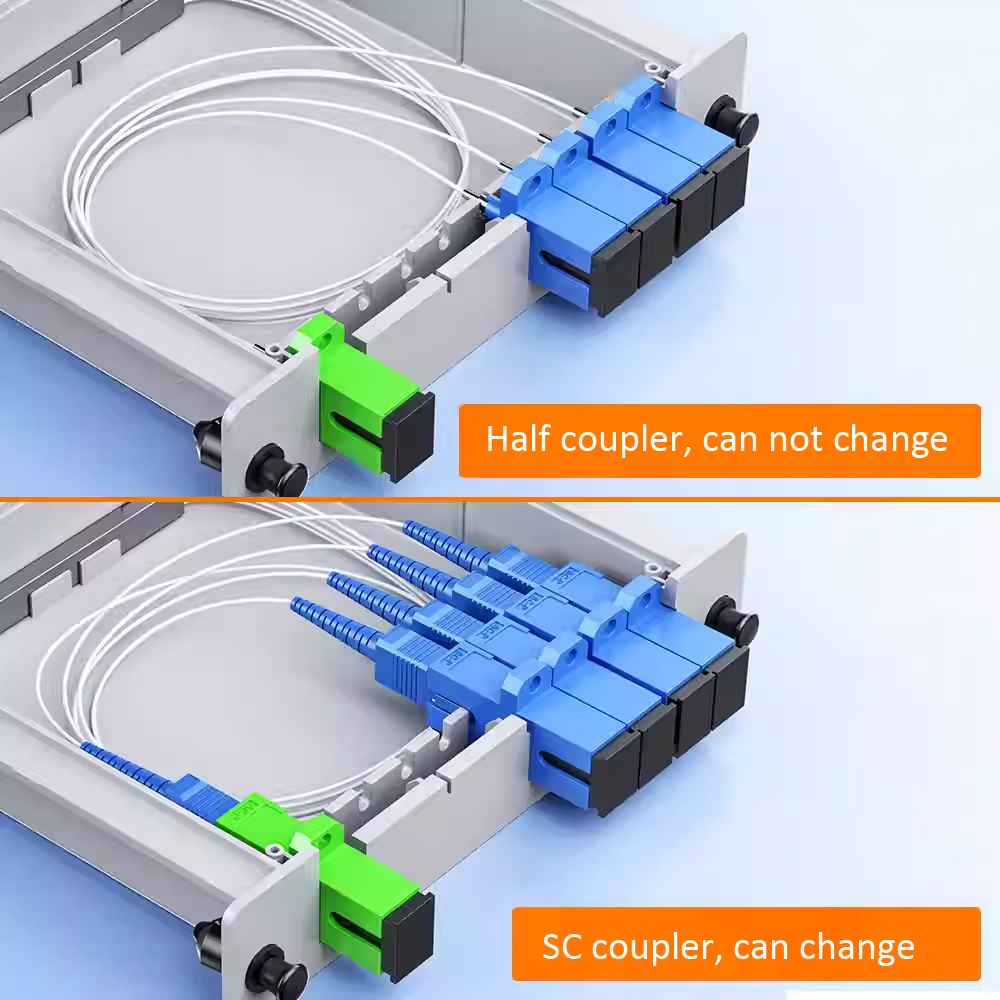

There are 2 internal design for the cassette type splitter, standard is sc pigtails connected with sc couplers, while the upgrade version is half couplers with pigtails bulkhead, which can not changed after configuration.

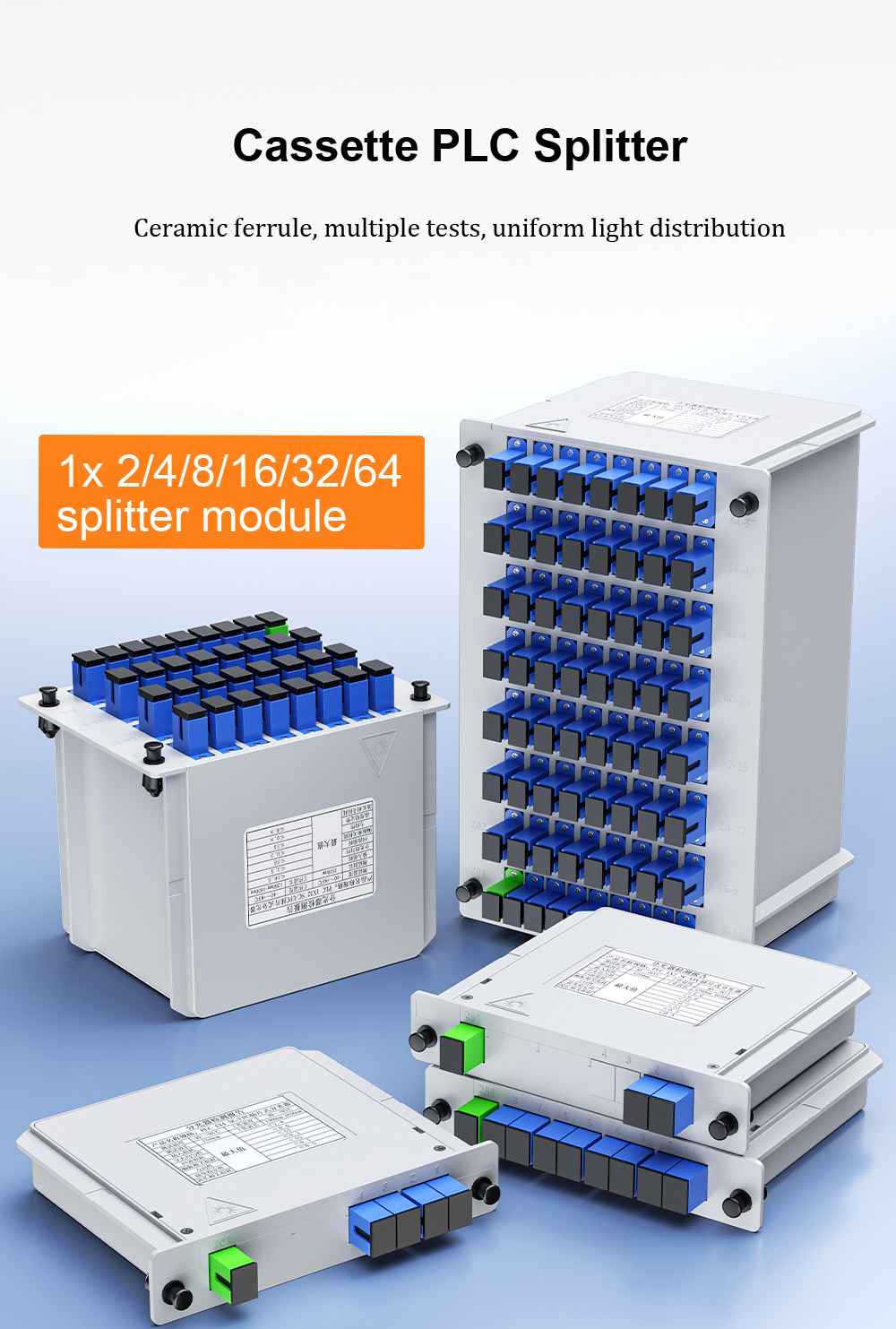

Yingda custom all types of plc splitters in cassette module, from 1×2, 1×4, 1×8, 1×16, 1×32, 1×64 to 2×2, 2×4, 2×8, 2×16, 2×32 splitters, all is balaned splitter or unbalanced splitter with ceramic ferrule, high precise with low loss.
