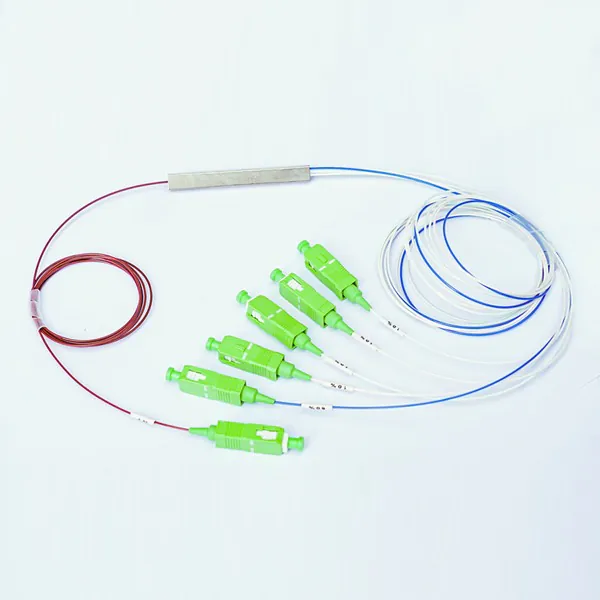

This Unbalanced PLC Splitter 1:6 with 60%/40% split ratio and connectors is ideal for optical communication. Featuring a precision PLC chip, it splits optical signals into 6 outputs with uneven power distribution. Neatly routed fibers and reliable connectors ensure minimal signal loss. Perfect for passive optical networks (PONs) and scenarios needing unbalanced power allocation, it enables efficient and stable optical signal transmission.
| Split ratio (%) | 60/40 | |
| Operating wavelength(nm) | 1260-1650 | |
| Fiber type | G657A or customized | |
| IL max(dB) | channel 1 | 2.7 |
| channel 2-9 | 15.1 | |
| IL uni(dB) | Channel 2-9 | 1.8 |
| Return loss (dB) | ≥55 | |
| Directivity (dB) | ≥55 | |
| PDL (max.) | 0.3 | |
| Uniformity (max.) | 0.8 | |
| Wavelength dependent loss (dB) | ≤0.3 | |
| TDL (max.) | 0.5 | |
| Operating temperature (℃) | -40 ~+85 | |
| Storage temperature (℃) | -40 ~+85 | |
| Dimension(mm) | Bare fiber steel tube | 60x7x4 |
| 900um Steel tube | 60x7x4 | |
| ABS box | 120x80x18 | |
This splitter 1:6 60%/40% features a planar lightwave circuit (PLC) chip at its core, ensuring precise and stable optical signal splitting. There is one input port and six output ports. The split ratio between the output ports is 60% and 40%, meaning the optical power is distributed unevenly among the six outputs as per this proportion.
The connectors are of a type suitable for optical fiber connections, enabling quick and reliable mating with other optical components. The optical fibers are protected and routed neatly, ensuring minimal signal loss and optimal performance in optical communication systems. This splitter is commonly used in passive optical networks (PONs) and other fiber optic applications where unbalanced power distribution is required.
 |
 |
 |
