Description
SC APC Splitter Features
- Low insertion loss and high return loss
- PDL automatic screening system(Ultra low PDL is available)
- High reliability and stability
- Connector can up to grade B
- 100% 3D tested by Daisi and Sumix
- High-low temperature cycle test
- 100% test before delivery
- FTTH Cabling solution could be design
SC APC Splitter Specification
| Split ratio (%) | 80/20 | |
| Operating wavelength (nm) | 1260-1650 | |
| Fiber type | G657A or customized | |
| IL max(dB) | channel 1 | 1.8 |
| channel 2-9 | 18.6 | |
| IL uni(dB) | Channel 2-9 | 1.8 |
| Return loss (dB) | ≥55 | |
| Directivity (dB) | ≥55 | |
| PDL (max.) | 0.3 | |
| Uniformity (max.) | 0.8 | |
| Wavelength dependent loss (dB) | ≤0.3 | |
| TDL (max.) | 0.5 | |
| Operating temperature | -40 ~+85 | |
| Storage temperature | -40 ~+85 | |
| Dimension (mm) / LXWXH | Bare fiber steel tube | 60x7x4 |
| 900um steel tube | 60x7x4 | |
| ABS box | 120x80x18 | |

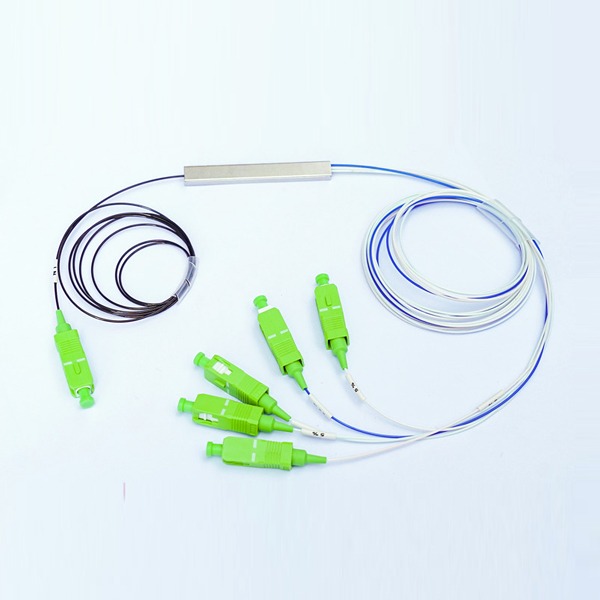

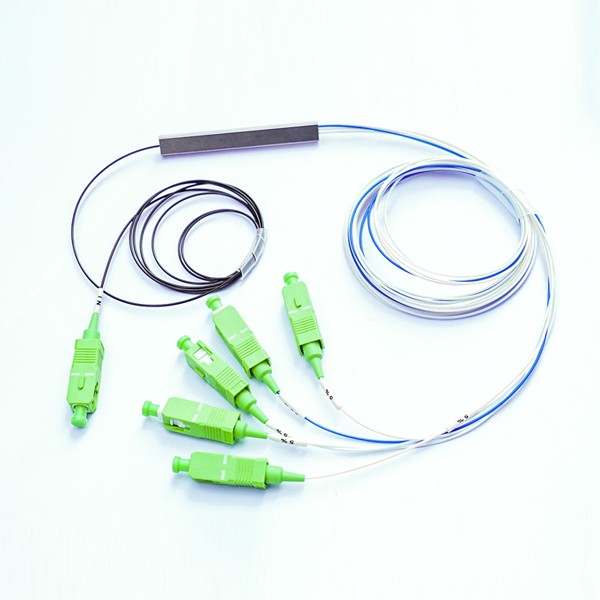

Details of SC APC Splitter 1:5 80%/20%
The Unbalanced SC APC Splitter 1:5 80%/20% is a fiber optic component designed for splitting an optical signal into five output signals with an unequal power distribution of 80% and 20%. It features SC APC connectors, which are known for their angled physical contact that minimizes back reflection, ensuring high-performance optical signal transmission. The splitter consists of a main body that performs the splitting function, with one input fiber and five output fibers. The fibers are typically made of high-quality optical glass to ensure low signal loss.
The 80%/20% splitting ratio means that when an optical signal enters the input port, approximately 80% of the signal power goes to one output port, and the remaining 20% is divided among the other four output ports (with each of these four receiving around 5% of the original signal power). This type of splitter is commonly used in optical communication networks where unequal distribution of signal power is required, such as in some passive optical network (PON) architectures or for feeding different devices with varying signal strength needs.
