Description
Features
- Up to 1.0Gb/s bi-directional datarate
- Hot-pluggable SFP
- Fully metallic case for low EMI
- Low power consumption(0.5W typical)
- Compact RJ-45 connectorassembly
- 10/100/1000Mbps compliant in hostsystems with SGMII Interface
- 100Mbps compliant in host systems with 100Base-FXinterface
- Compatible with RoHS andlead-free
- Case operatingtemperature: Commercial 0°C to +70°C; Industrial -40°C to +85°C
Application
- Giga 1.25 G SFP To RJ45 Module 100M
Pin Description
| Pin Descriptions | ||||
| Pin | Signal Name | Description | Plug Seq. | Notes |
| 1 | VeeT | Transmitter Ground | 1 | |
| 2 | TX FAULT | Transmitter Fault Indication | 3 | Note1 |
| 3 | TX DISABLE | Transmitter Disable | 3 | Note2 |
| 4 | MOD_DEF(2) | SDA Serial Data Signal | 3 | Note3 |
| 5 | MOD_DEF(1) | SCL Serial Clock Signal | 3 | Note3 |
| 6 | MOD_DEF(0) | TTL Low | 3 | Note3 |
| 7 | Rate Select | Not Connected | 3 | |
| 8 | LOS | Loss of Signal | 3 | Note4 |
| 9 | Veer | Receiver ground | 1 | |
| 10 | Veer | Receiver ground | 1 | |
| 11 | Veer | Receiver ground | 1 | |
| 12 | RX- | Inv. Receiver Date Out | 3 | Note5 |
| 13 | RX+ | Receiver Date Out | 3 | Note5 |
| 14 | VeeR | Receiver ground | 1 | |
| 15 | VccR | Receiver Power Supply | 2 | |
| 16 | VccT | Transmitter Power Supply | 2 | |
| 17 | VeeT | Transmitter Ground | 1 | |
| 18 | TX+ | Transmit Date In | 3 | Note6 |
| 18 | TX- | Inv. Transmit Date In | 3 | Note6 |
| 20 | VeeT | Transmitter Ground | 1 |
General Specification
| Parameter | Symbol | Min | Typical | Max | unit | Notes/Conditions |
| Data Rate | BR | 10 | 1000 | Mb/sec | IEEE 802.3 compatible. See Notes 2 through 4below | |
| Cable Length | L | 100 | m | Category 5 UTP.BER<10-12 |

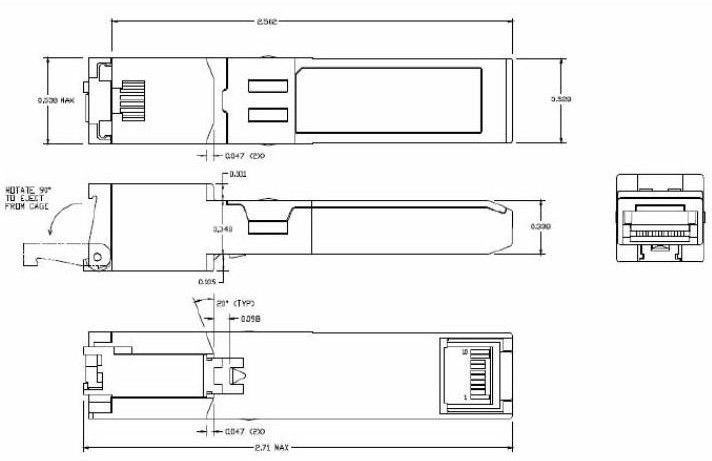

Mechanical Specification (Unit:mm)

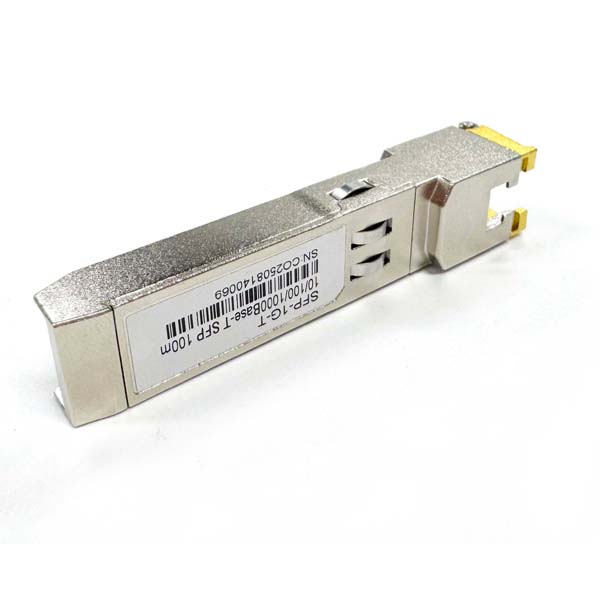

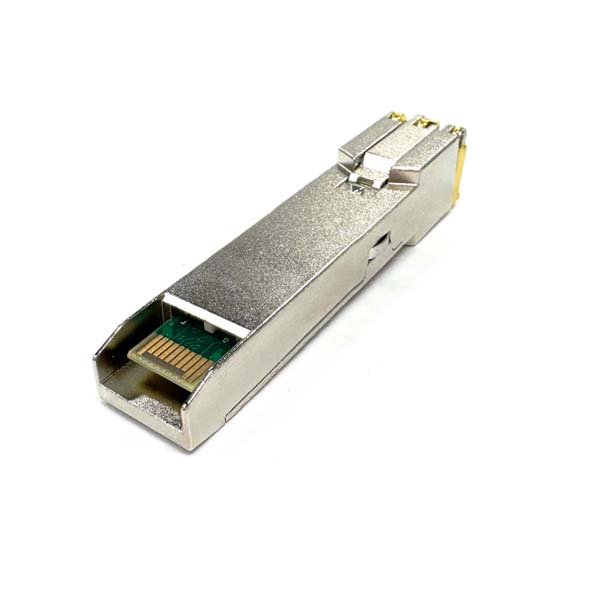

1.25 G SFP To RJ45 Module 100M Details
Yingda 1.25 G SFP to J45 Module is suitable for RJ45 patch cords one side for cate 5e, cat 5, cat 6, cat 6e, the other side is electronic interface, which can plug and play into media converter, switch, OLT fiber optic equipment. Best FTTX optical device.

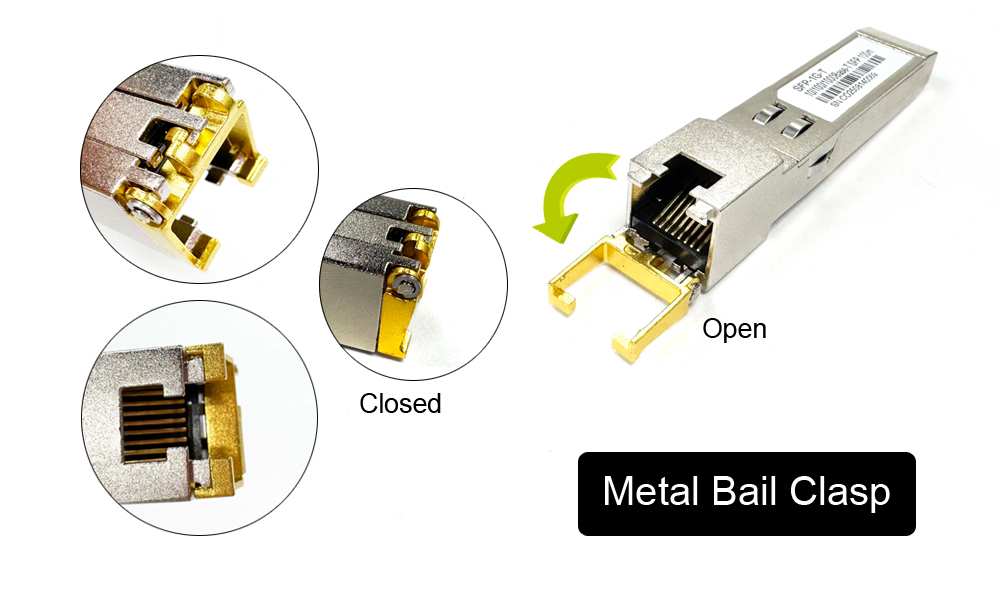

1.25G Copper SFP Transceivers use metal bail clasp to for pulling the optical module outside of the SFP Port, it can turn 90 degree and then pull out of the module horizontally and softly.

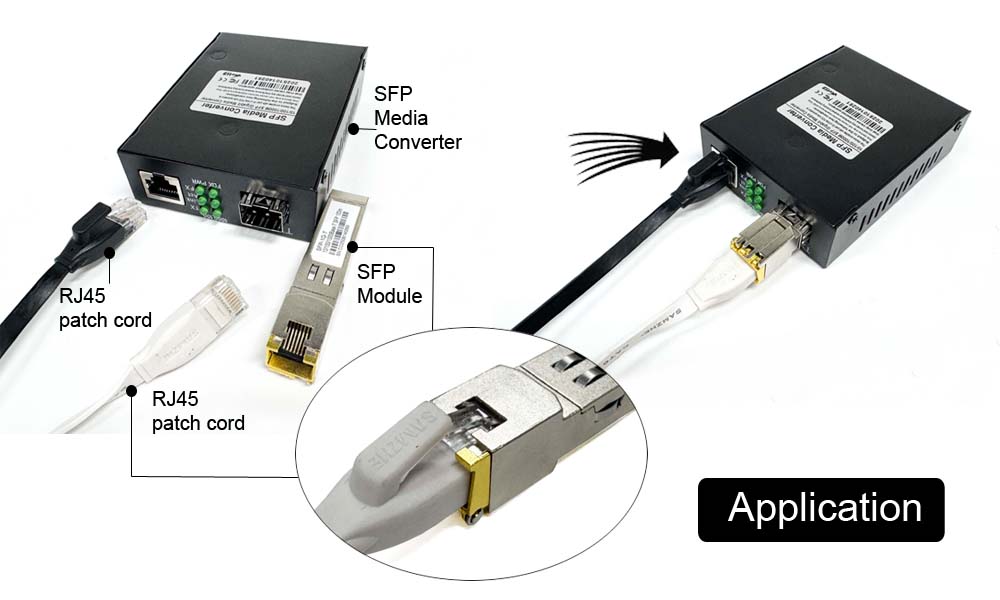

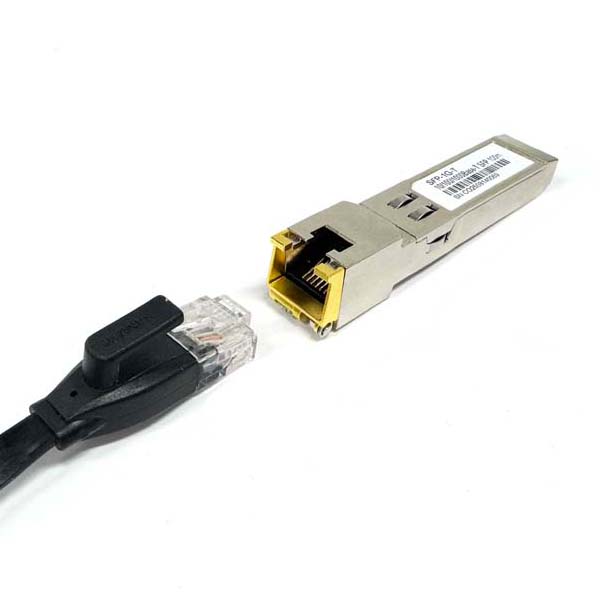

We can directly connected with twisted paird rj45 patch cables, and then plug into the SFP media converter for end electronic signals transmission and connection.
