Description
1×2 Fiber Optic Splitter Features
- Low Insertion loss
- Low PDL
- Compact Design
- Good channel-to-channel uniformity
- High Reliability and Stability
- Conforms to Telcordia GR-1209&GR-1221, ROHS
1×2 Fiber Optic Splitter Specifications
1×N, 2XN PLC Splitter
| Split ratio | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 1×128 | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 | ||||
| Operating Wavelength (nm) | 1260-1650nm | ||||||||||||||||
| Fiber Type | G657A1 or customer specified | ||||||||||||||||
| Insertion Loss (dB)S Grade | 4.2 | 7.6 | 10.7 | 14 | 17.2 | 20.8 | 24 | 4.4 | 8 | 11 | 14.6 | 17.8 | 21 | ||||
| Insertion Loss (dB) P Grade | 4 | 7.4 | 10.5 | 13.8 | 17 | 20.4 | 23.7 | 4.2 | 7.7 | 10.8 | 14.1 | 17.4 | 20.7 | ||||
| Loss Uniformity(dB) | 0.6 | 0.8 | 0.8 | 1.0 | 2.0 | 2.0 | 2.0 | 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 | ||||
| PDL(dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | 0.5 | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | ||||
| Return Loss (dB) | 55 | ||||||||||||||||
| Directivity (dB) | 55 | ||||||||||||||||
| Wavelength Dependent Loss(dB) | 0.6 | 0.8 | 0.8 | 1.0 | 1.5 | 2.0 | 0.2 | 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 | ||||
1×2 Fiber Optic Splitter Details

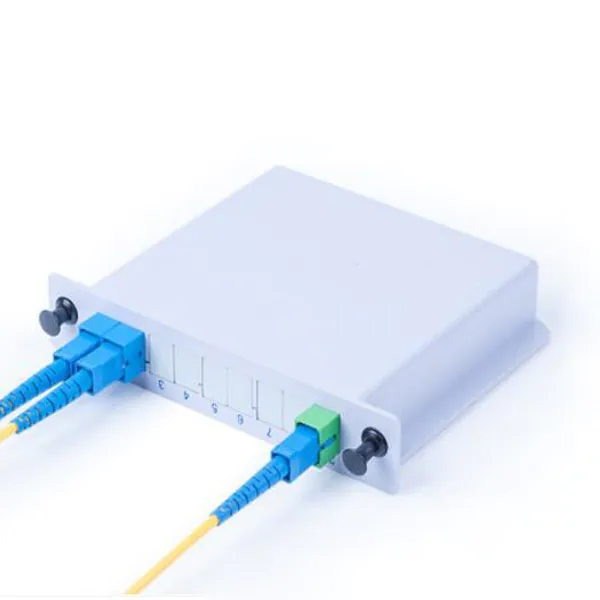

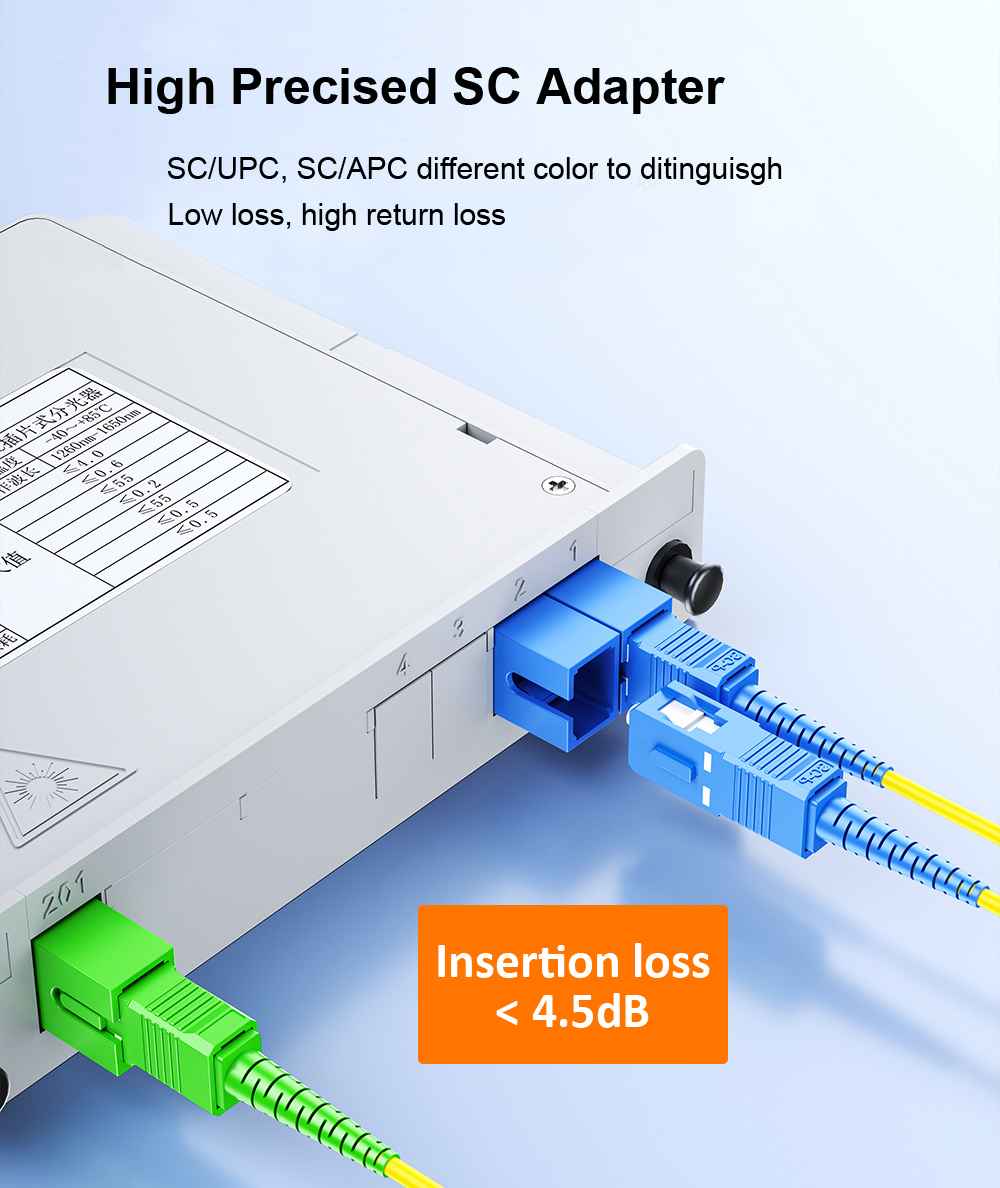

1×2 fiber optic splitter adopt high precise sc adapters for input and outputs, high return loss, durable performance use, low loss at 4.5dB loss each splitter.

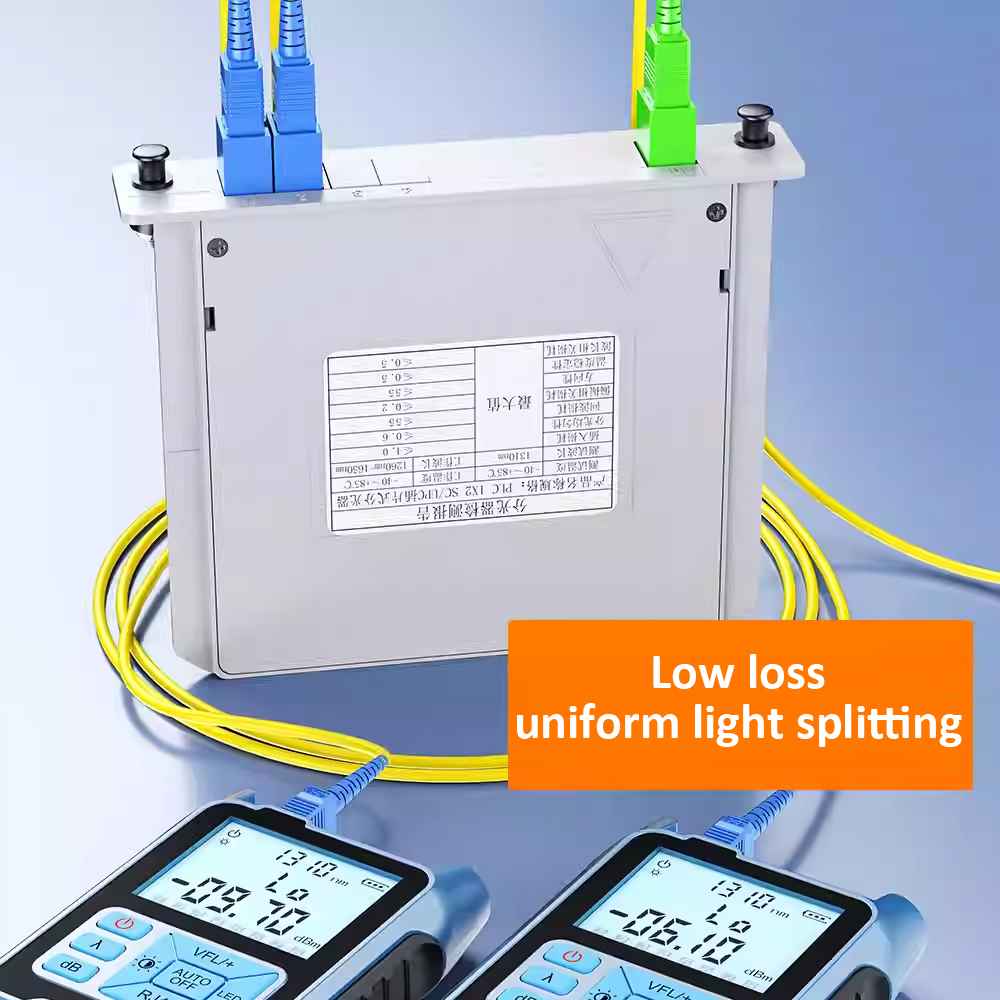

Yingda will test all cassette splitters during mass production, and delivery after qualified 100%, each splitter will be ship with a english test reports to describe each port loss.

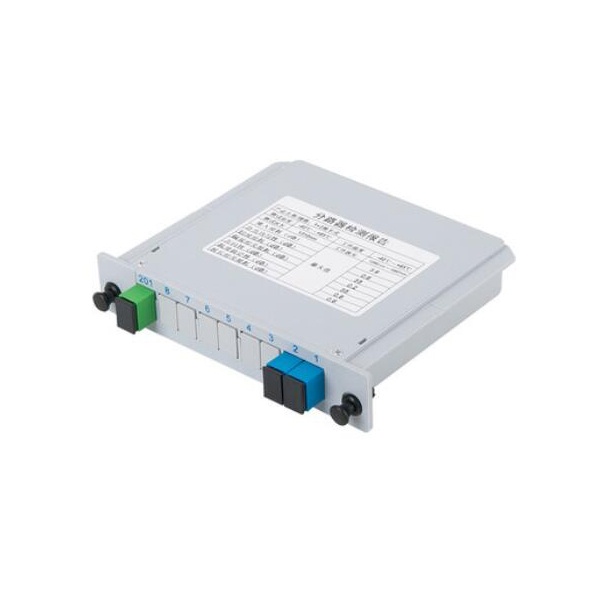

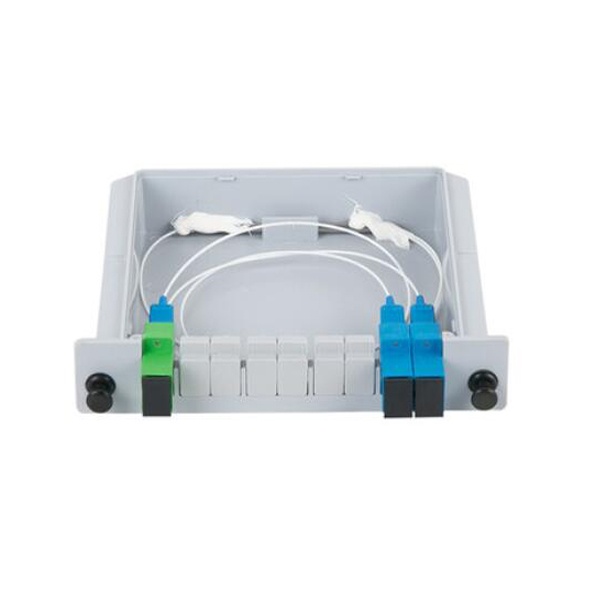

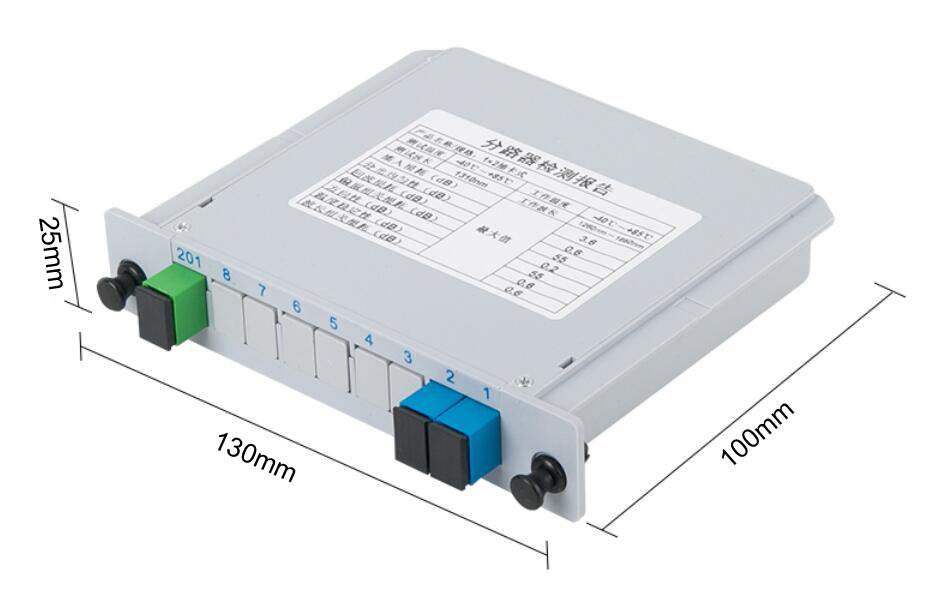

The 1 to 2 optical splitter module are made of high impact ABS housing materials, gray color, module sizse:130*100*25mm, with mounting rivets on both sides of the box for installation on fiber splitter box, distribution boxes. There is number mark for input and outputs, fast and easy installation.

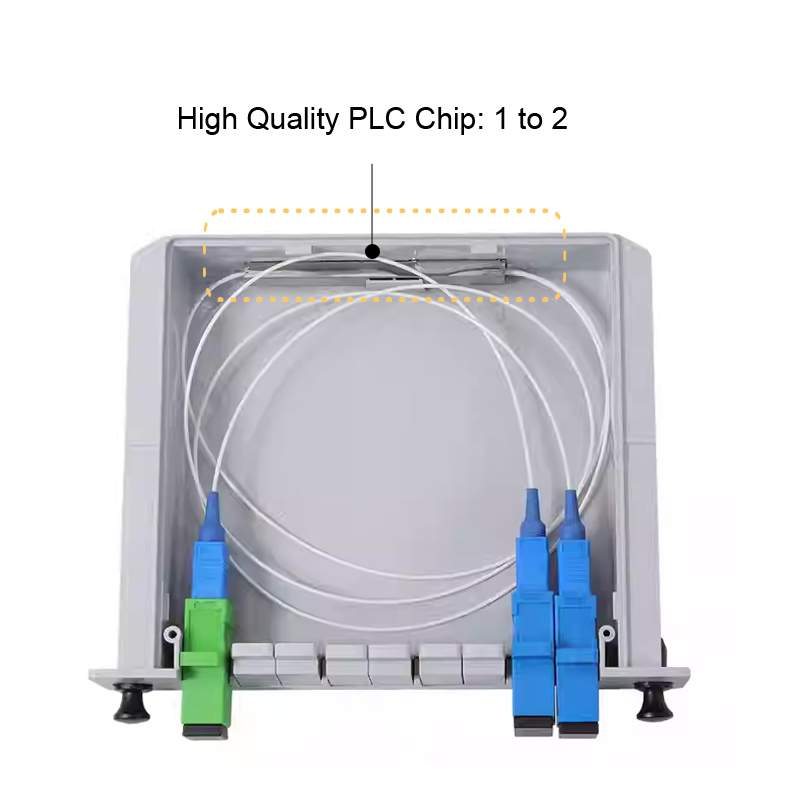

Yingda adopt high quality planar lightwave circuit PLC chip 1×2 for the splitter, the steel tube will be protected and hold tightly on the internal with quality adhesive glue, which will keep in place after long time transportation.

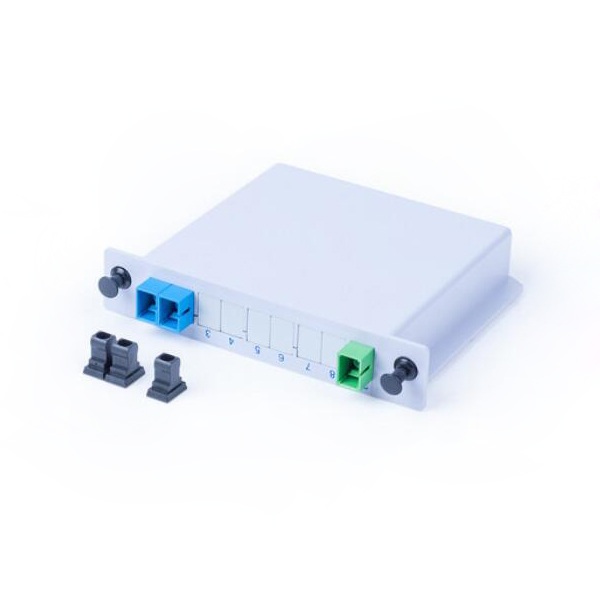

All ports that are not in use will be blocked with plugs to prevent dust from entering.
