Description
LGX Box PLC Splitter Features
- Low insertion loss and high return loss
- PDL automatic screening system(Ultra low PDL is available)
- High reliability and stability
- Connector can up to grade B
- 100% 3D tested by Daisi and Sumix
- High-low temperature cycle test
- 100% test before delivery
- FTTH Cabling solution could be design

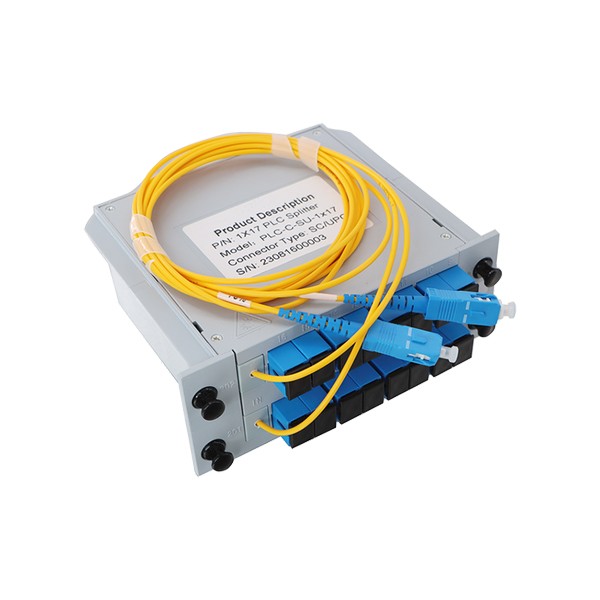

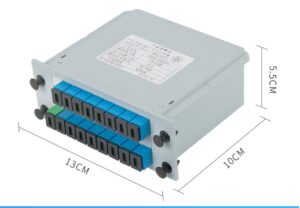

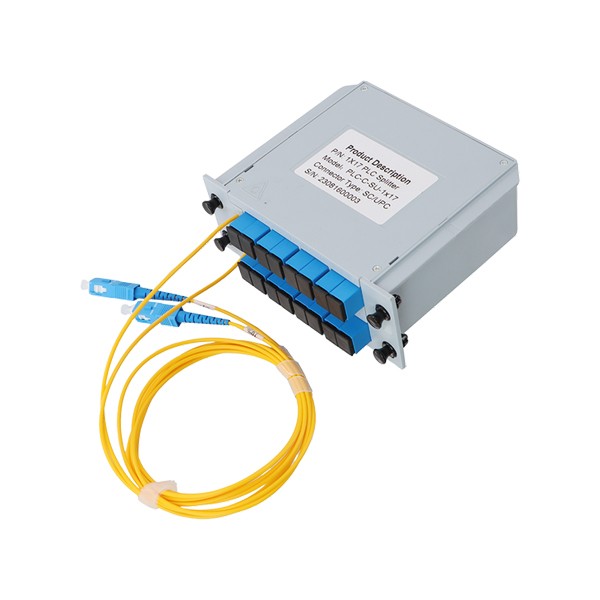

LGX Box Module Size: 130*100*55mm
- The splitter 1×12, 1×16, 1×17 or 2×12, 2X16 series use the same size of LGX module, only change the front adapter ports interface and marks.
- Connectors can be SC/APC, SC/UPC, LC/APC, LC/PUC.
- There will be stickers with product details, optical performances for your record.
LGX Box PLC Splitter Specification
| Split ratio (%) | 75/25 | 67/33 | 50/50 | 5/95 | 85/15 | 80/20 | 60/40 | 40/60 | ||
| Operating wavelength (nm) | 1260-1650 | |||||||||
| Fiber type | G657A or customized | |||||||||
| IL max(dB) | channel 1 | 1.9 | 2.5 | 3.9 | 16.3 | 1.7 | 1.8 | 2.8 | 4.6 | |
| channel 2-5 | 14.8 | 13.1 | 10.5 | 7.5 | 16.5 | 15.1 | 12.0 | 9.8 | ||
| IL uni(dB) | Channel 2-5 | 0.9 | 0.9 | 0.9 | 0.9 | 1.8 | 1.8 | 1.8 | 1.8 | |
| Return loss (dB) | ≥55 | |||||||||
| Directivity (dB) | ≥55 | |||||||||
| PDL (max.) | 0.2 | 0.3 | ||||||||
| Uniformity (max.) | 0.8 | |||||||||
| Wavelength dependent loss (dB) | ≤0.3 | |||||||||
| TDL (max.) | 0.5 | |||||||||
| Operating temperature | -40 ~+85 | |||||||||
| Storage temperature | -40 ~+85 | |||||||||
| Dimension (mm) / LXWXH | Bare fiber steel tube | 60x7x4 | ||||||||
| 900um steel tube | 60x7x4 | |||||||||
| ABS box module | 120x80x18 | |||||||||

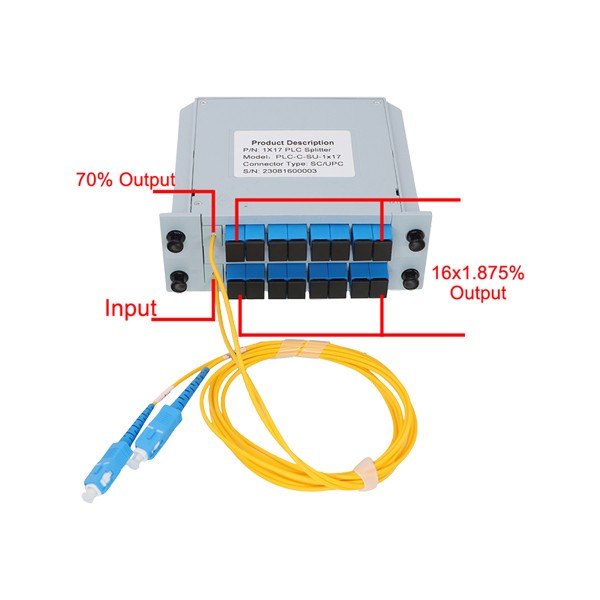

LGX Box PLC Splitter Splitting Ratio Drawing

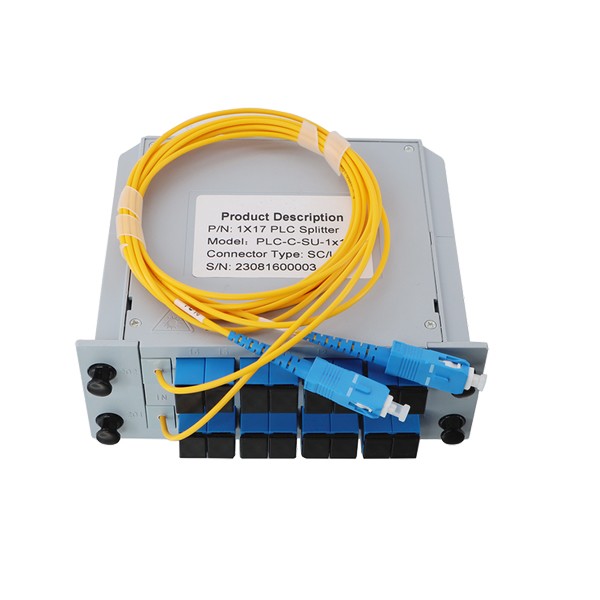

This type of splitter is specially designed for FTTH, GPON network.
The splitter input is 1piece SC pigtail1.5meter G657A1 LSZH 2mm instead of SC coupler, and output channel 1 is the same with SC/UPC pigtail 1.5m G657A1 LSZH 2mm with power meter 70% input optical signal, while output channel 2-17 is with fiber optic couplers instead, each load 1.875% input optical signals.
