Multiport Service Terminal (MST) Box is an essential component of fiber optic networks. It provides a distribution point for fiber optic cables deployed to homes or businesses.

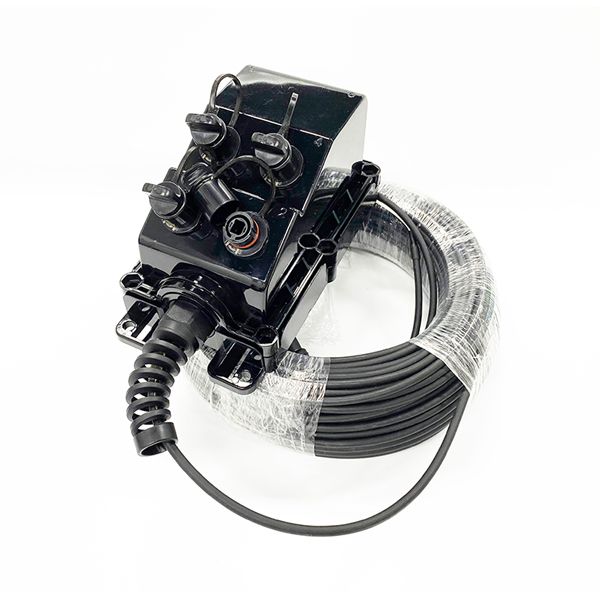

The FiberHub box mix fiber distribution, splitting,splicing and protection in a box. Per-assembled with waterproof connectors, it can reduce connecting nodes and signal loss but improve the installation efficiency. The high strength material, armored cable, and arc interface design make the MST box can stand 1200N pulling force long term. This FiberHub is very suitable for field use like below 4 applications:
Yingda custom manufacture all types of multiport service terminal boxes for outdoor fiber distribution hub with interface like ODVA, H connector (OptiTap compatible), Mini SC, AARC, PTLC, PTMPO or power adapters. The cable ports can be 2 port, 4 port, 6 port, 8 port or 12 ports, with the highest IP68 waterproof grade, you can mount it on wall, overhead wires or electronic poles. All MST Box meet IEC61753-1 standard.
✅ High compatibility: Can assembly various of hardened waterproof plugs ODVA, Supertap (OptiTap compatible), Mini SC, AARC, PDLC, ODC, Fullx, etc.
✅ Flexible configuration: Factory-terminated with PLC splitter, fiber sleeve, fiber adapter or MPO/MTP breakout cable or empty with standard accessories.
✅ Certified & Reliable: Meet IEC 61300 series and Telcordia GR-326-CORE / GR-3120-CORE standards
✅ Stable performance: Stable low insertion loss and return loss ensures signal integrity over long distance and multiple connection in long run.
✅ Tailor Customization: Cable input and output can be customize from optical cable port to optical interface MPO, SC LC dual connectors.
✅ Large capacity: 2, 4, 6, 8, 12, 16 ports with single fiber splicing 24 cores
✅ Multi-function: Mix splitting, splicing, distribution and storage in a box.
✅ Best protection: IP68 waterproof, suitable for underground or underwater, manhole, handhole, outdoor pole, wall or overhead lines.
✅ Installation method: Wall mount, aerial mount, pole mount, manhole, pedestal or underground
✅ Cost effective: Pre-terminated connectors help save 40% operating time than fiber splicing.
✅ Strong enough: Robust material, unique structure ensure intact working under 1200N pulling force long term

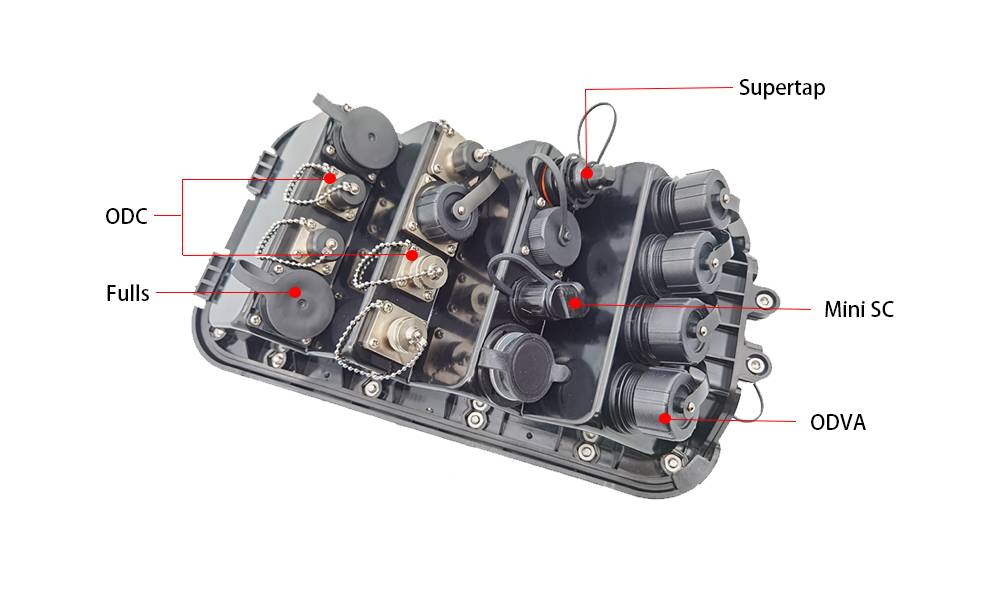

For multiport service terminal box, Yingda support below interfaces:
You can only use one type of interface or hybrid interfaces.
The same for the cable entrance design.
Inside of the waterproof plug, there are mostly 3 types of optical connectors used: SC connector, dual LC connector, MPO connector. And in practical applications, we must also pay attention to distinguishing between male and female connectors as well.
Regarding the cable entrance for the multiport service terminal box, Yingda support different hardened adapter interface or only cable ports for the different cascading applications, please specify your requirements in advance, or ask the MST ordering guide if you are new comer in MST fiber.
Yes, of course, you can use MPO to SC breakout cable or MPO to LC breakout cable as well,8 cores, 12cores, 24 cores MPO cable assembly all ok.
It will take about 10-20 days according to your order quantity and detail configuration, please talk to sales team in details.
Multiport service terminal box price varify on different configuration, please specify the cable ports inlet outlet, waterproof plug types and internal splitter or breakout cable in details, then we can offer the best price to you by mail.
Yes, black box suggest to print white logo, please share your logo files to us by mail. We will send you samples for your reference.
MST is short for multiport service terminal box.
MST fiber box can help distribute, split, splice or store the optical fibers in fiber distribution hub with pre-connected wateproof plugs, which reduce installation time and and signal loss, and provide best protection in outdoor harsh environment fiber optic deployment.
