Cassette Splitter

Top Quality Cassette Splitter Factory

Cassette splitter is a kind of optical passive splitter with plastic or metal module package. The module size can be customized. It is easy pluggable, modular management and high compatibility, and widely used in various fiber networking scenarios.

The main application scenarios of cassette splitters:

China Leading Cassette Splitter Manufacturer

Yingda can provide cassette PLC splitter with various splitting ratios: 1:2, 1:4, 1:8, 1:16,1:32,1:64, 1:128, 2:2, 2:4, 2:8, 2:32, 2:64 with balanced splitting power. All fiber splitters meet IEC, ROHS, Telcordia GR1209&GR1221 standards. If any special needs, contact our sales staff directly.

Yingda is a Chinese cassette type splitter manufacturer integrating R&D, production and sales. It is committed to providing customers with stable quality. No matter how the market changes, quality is always the first priority.

With long-term stable supply chain support and mature cost control, Yingda share the extra benefits with customers and promise to provide customers with the best quality and most competitive price and services, so that customers can stand out from many competitors.

Custom GPON Splitter Design

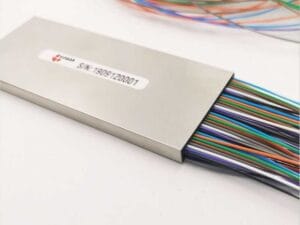

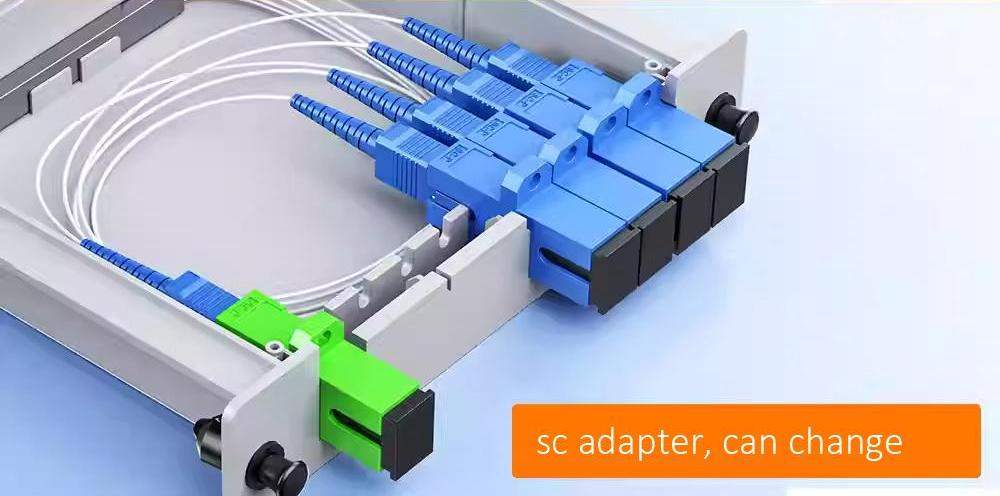

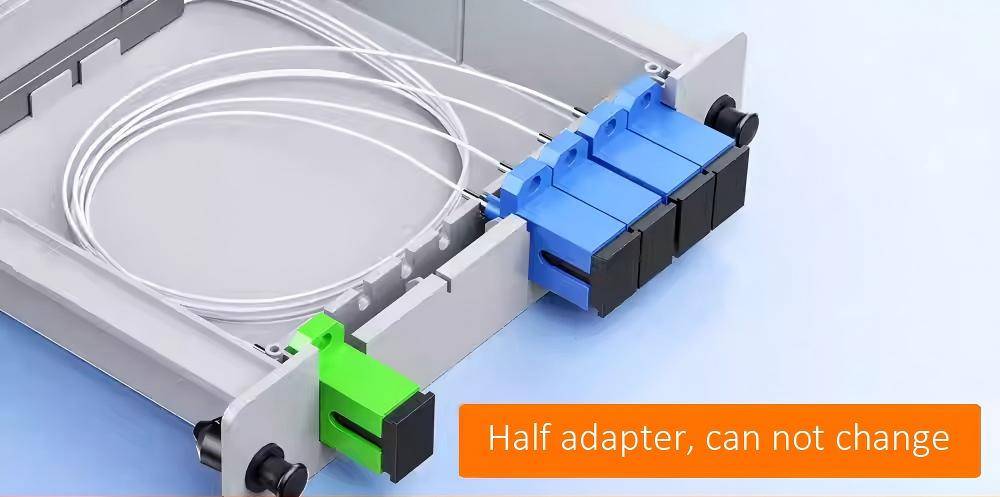

The standard cassette splitter hold steel tube splitter inside, and the input and output pigtails will be insert into the sc adapters on the adapter panel. Input use green housing, output use blue housing to distinguish, so the human eyes can differ. However, due to market competition and cost requirements, there is now a new alternative solution: half-adapter assembly (left image) instead of fiber optic connectors and adapters (right image).

Custom Cassette Splitter Input / Output Types

Yingda cassette type splitter input and output can be adapters or pigtails, the old design is sc adapter, now we can use pigtails with connector for direct connection, no need one more adapter and pigtails,  or use pigtails without connectors for direct fusion splicing, both type are cost effective and flexible.

The pigtails now used most are 2.0mm yellow cable or 0.9mm loose tube with SC LC connectors.

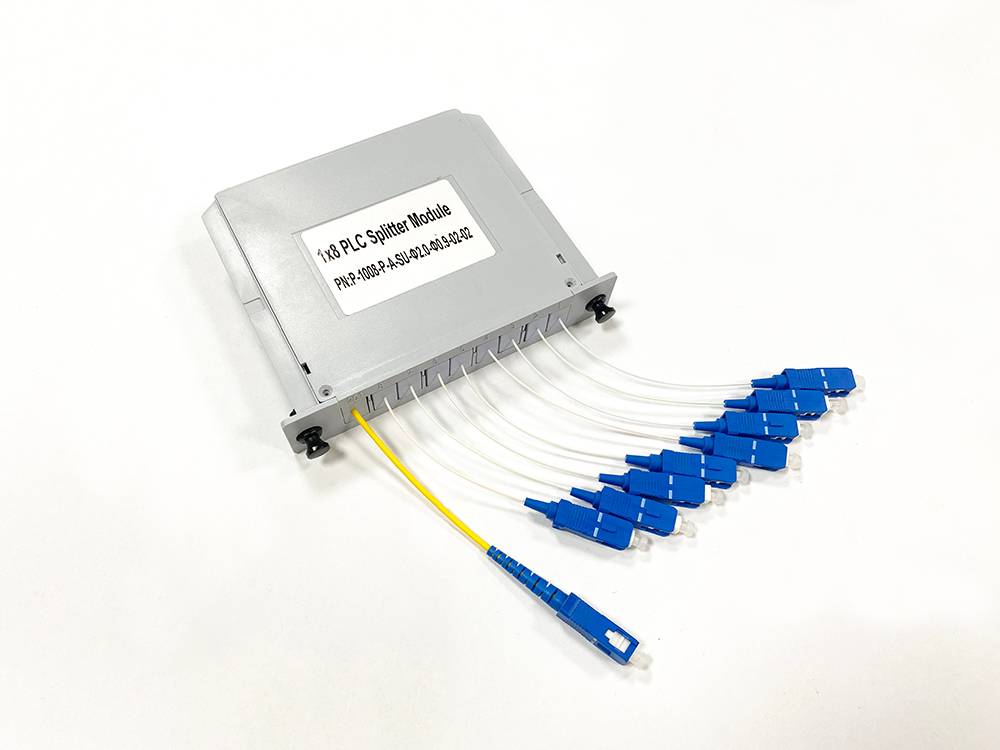

custom input and output of splitter 1 to 8, input 2mm pigtails yellow with sc upc connector, output pigtails sc upc 900um white color
1:8 Cassette splitter input SC/UPC pigtail yellow 2mm, Output SC/UPC pigtails white 900um

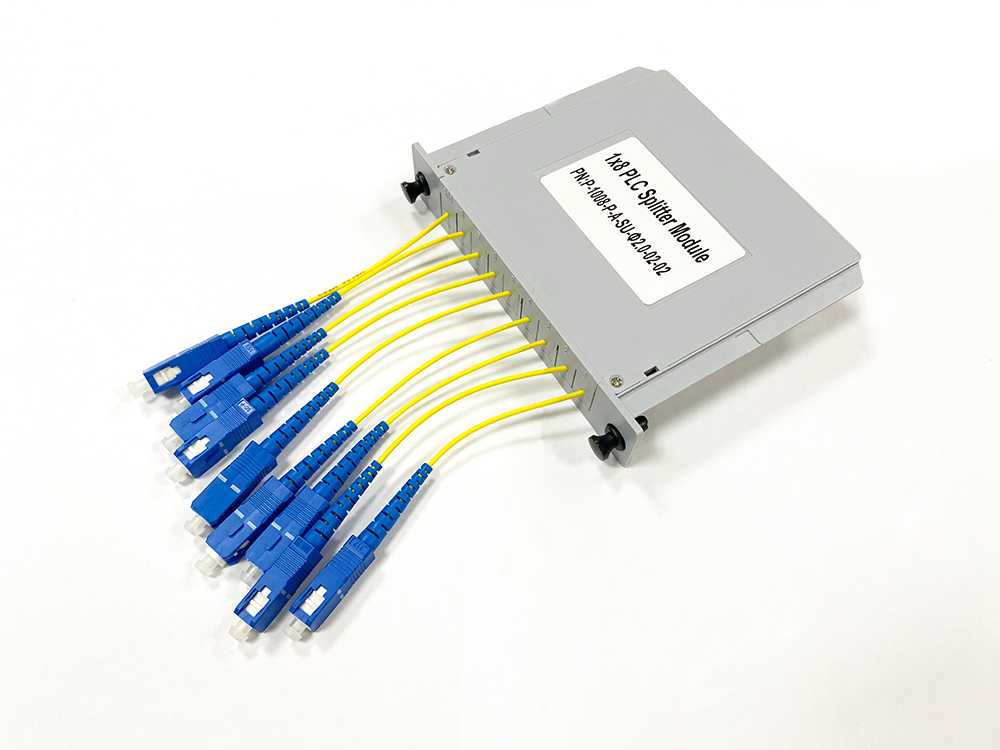

custom input and output of splitter 1 to 8, input 2mm pigtails yellow with sc upc connector, output pigtails sc upc 2mm yellow color
1:8 Cassette splitter input SC/UPC pigtail yellow 2mm, Output SC/UPC pigtails yellow 2mm

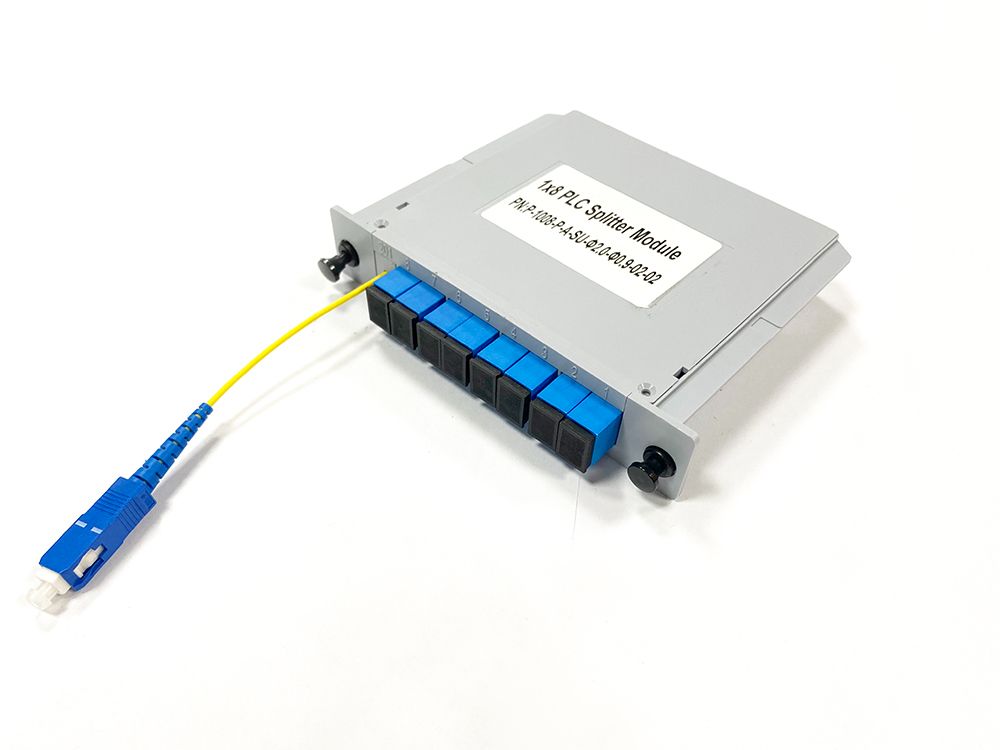

custom input and output of splitter 1 to 8, input 2mm sc upc pigtail yellow, output sc upc adapters
1:8 Cassette splitter input SC/UPC pigtail yellow 2mm, Output SC/UPC adapters

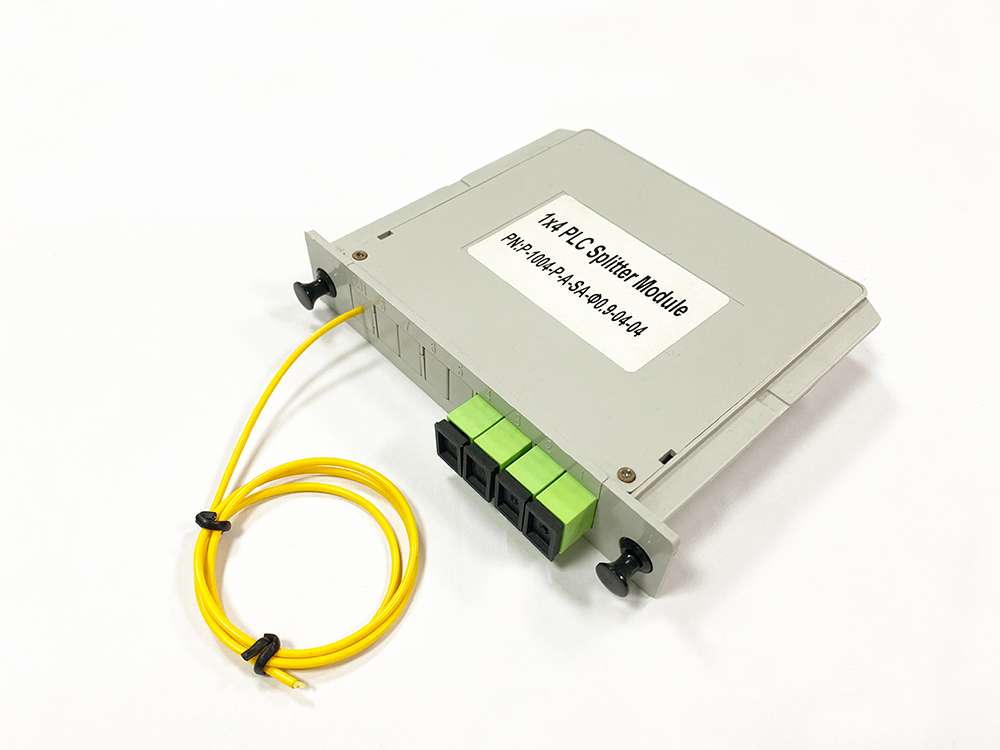

custom input and output of splitter 1 to 4, input 2mm pigtails yellow without connector, output sc apc adapter
1:8 Cassette splitter input 2mm pigtail yellow without connectors, Output SC/APC adapters

Custom Cassette PLC splitter 1x32

1X32 splitter module can be vertical design or horizontal design, suitable for different applications, the same as 1X64 splitter modules. Welcome inquiry.

fttp fttx outdoor fiber splitter 1x32, input sc/apc connector, output sc/upc adapters,steel tube splitter inside

1x32 Fiber Splitter Cassette (horizontal)

Adapter panel: 2x 16 SC/UPC for output, 1xSC/APC input, module size:255*100*50mm

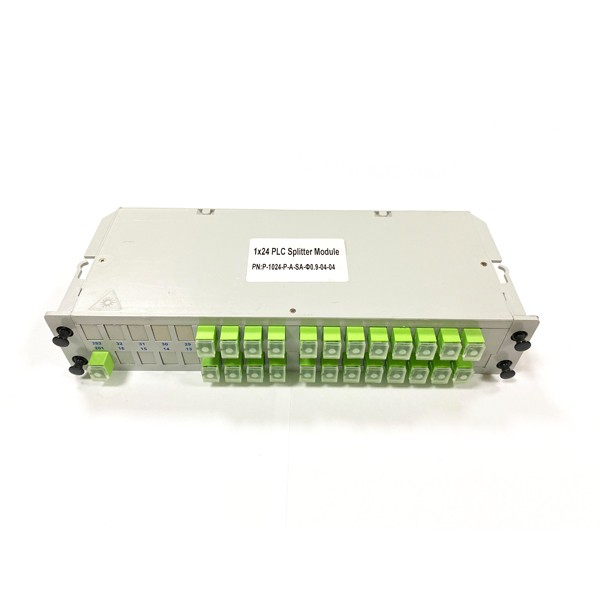

1x24 cassette splitter sc apc

1x24 Splitter Cassette (horizontal)

Adapter panel: 2x 12 SC/APC, 1xSC/APC input, module size: 255*100*50mm

fttp 1 32 splitter for optical passive network, sc/upc connectors, with 4 ways 8 sc adapters

1x32 Optical Splitter Cassette (vertical)

Adapter panel: 4x 8 SC/UPC, 1xSC/APC input, module size: 130*100*100mm

Buying FAQ For Cassette Splitter

Yes, we can add logo on the top stickers of the splitter module.

If it is standard configuration, we have stock, no qty request. But the freight cost will be too much to afford, so suggest to buy local if only only pieces.

Yingda are direct factory of plc splitter, our price is much competitive, and fast delivery with stable quality.

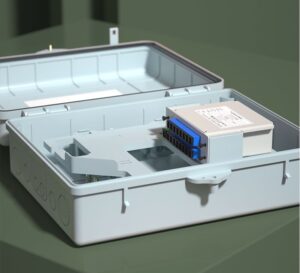

Most of the time, the cassette splitter will be installed in a fiber splitter box, wall mount distribution box. If you buy separately, will pack in plastic bags with test report, then in master shipping boxes.

It will take about 10-15days for production, if any special request, please talk to us in advance.

Yes, Yingda can custom SC LC ST FC connectors for splitter cassette, only change the front adapter panel ports, it is ok. In odder to identify the input and output, we can put different color like blue, green, red dust cap or different color housing.

splitter cassette interface type


Timely Delivery

High productivity efficiency, skilled front-line operators and strict production control ensure timely delivery.

Quality Assurance

High-precision testing equipment and top industry quality control system ensure high quality standards.

Competitive Price

Long-term stable supply chain and cost control that changes in line with market trends ensure the best price
