Armored Fiber Patch Cable

Best Armored Fiber Patch Cable Manufacturer

Armored fiber patch cables are fiber optic patch cables with armored fo cables. Armored fiber optic cable feature a stainless steel protection layer, high tensile strength and rat-resistant. So they are suitable for harsh environments where ordinary fiber patch cables are vulnerable. Their primary applications are as follows:

  • Building cabling: Armored fiber patch cable provide flexible and durable connectivity solutions within complex building environments.
  • Optical connections for key equipment in computer rooms: For example, interconnecting servers in data centers, armored patch cable can withstand equipment compression and high-density cabling.
  • Field operations:When deployed outdoors overhead or on the ground, armored fiber optic patch cables  are tensile strength, moisture resistance, and sun protection to ensure stability.
  • Sensing and detection:Armoured fibre patch leads resist mechanical damage in harsh environments, such as industrial sensors.
  • Fiber-to-the-home (FTTHnetwork): Armored optical cables are rodent- and trample-resistant at the access point in homes or businesses.
  • Rodent-proofing: Armored fiber cablesare used in granary surveillance systems and other

World Lead Amored Fiber Patch Cable Supplier

Yingda manufactures a wide range of armored fiber patch cable with different structures. Our production and testing standards primarily cover physical specifications, appearance requirements, classification parameters, length and attenuation testing, end-face 3D inspection, optical performance testing, connectivity, and durability testing.

International standards include IEC 60793, IEC 60794, CEI 61754, EN standards, ITU-T, ISO/IEC 11801, and IEEE standards.

Armoured Fiber Optic Patch Cord LC LC Single Mode
armored patch cord outdoor lc/apc lc/apc smf corning g657 a2 simplex lszh uv 3mm 20m, one side with woven net pulling eye , blue color, white printing
  • LC to LC patch cord 10 meter
  • 1 Core armoured cable G657A2 Corning fiber 3mm blue
  • IL≤0.3dB, RL≥60dB
  • One side pulling eye for duct, conduit cabling
Indoor Armored Fiber Patch cord SC APC
single core armored fiber patch cord with drum 10m, 20m, 30m, 50m per roll, pre terminated fiber connectors sc lc st fc, 3mm white smf with pulling eye
  • Armored fiber SC to SC patch cord
  • 1 Core Armoured cable Corning G.657A2 fiber 3mm white
  • IL≤0.3dB, RL≥50dB
  • Both side pulling eyes with aramid yarn for duct, conduit cabling
FC to FC single mode armored fiber optic cable
fc fc patch cord apc green, blue fiber optic cable smf single mode g657a1 3.0mm 10m simplex 9um
  • FC fiber patch cord single mode
  • 1 Core armoured cable Cornig G.657B3 fiber 3mm blue
  • IL≤0.3dB, RL≥60dB
  • 1 Year guarantee, individual pack
Outdoor 4 Core Armored Cable SC to SC
4 core armored fiber jumper cable with sc st fc lc, tpu cable sheath, black, anti uv, very soft, outdoor use, pack with cable car for fast deploying
  • SC SC single mode patch cord multi fibers
  • 4 Core armored cable G657B3 fiber 3mm black
  • IL≤0.3dB, RL≥50dB
  • Handheld cable reel pack for safe deploying in field
FC to ST Armored Patch Cable TPU 50m
12 fibers outdoor armored patch cable cords fc st, smf 9/125um os1 tpu jacket, black, wrap with plastic film
  • Indoor outdoor armored fiber patch cord FC ST
  • 12 core armoured fiber optic cable black
  • IL≤0.3dB, RL≥50dB
  • Plastic film wrap for long distance connection
MPO/MTP to LC Steel Armored Fiber Optic Cable
12 fibers mpo/mtp to lc breakout cable with armor spiral tube
  • MPO to LC breakout cable multimode rose red
  • Fanout pigtails LC/PC with spiral tube armored fibre OM4 50/125um aqua
  • LC connector: IL≤0.3dB, RL≥35dB
  • MPO connector:IL≤0.70dB, Elite:≤0.35dB, RL≥35dB
LC FC Fiber Patch Cord With Armoured Fibre Cable
outdoor armored patch cord single mode 24 cores blue lszh, fanout 0.9mm fiber pigtails lc/upc fc/upc, with heat shrink tube
  • LC/UPC to FC/UPC breakout cable
  • Single mode armored fiber cable 24 cores blue G.657A1
  • IL≤0.3dB, RL≥50dB
  • 1 Year guarantee, individual pack
Armoured ST to SC Multimode Fiber Patch Cable
2 cores armored st sc multimode patch cord, mm duplex slzh 30m gray with stainless steel spiral tube for outdoor ruse
  • ST SC multimode patch cord
  • duplex zipcord armored cable
  • OM1 62.5/125um  gray
  • IL≤0.3dB, RL≥50dB
  • 1 Year guarantee, individual pack
Armoured Fiber Optic Patch Cord SC SC
single core armored fiber patch cord with drum 10m, 20m, 30m, 50m per roll, pre terminated fiber connectors sc lc st fc, 3mm white smf with pulling eye
  • SC/UPC to SC/UPC simplex patch cord
  • 1 core armored fiber optic cable white 3mm G.657 fiber
  • IL≤0.3dB, RL≥50dB
  • Cardboard cable reel for fast cabling
Armoured Fiber Optic Patch Cord SC SC Duplex
armored fiber jumper sc/apc sc/apc duplex sm g657b3 lszh, 3.0mm blue 1 meter
  • SC SC duplex patch cord
  • Armored cable 2 core with breakout kit, 3mm blue uni-tube
  • IL≤0.3dB, RL≥50dB
  • A / B mark on each sides for better clarification
Armored LC to LC Single Mode Fiber Patch Cable
8 core armored fiber optic patch cable lc upc lc upc singlemode g.652d pvc blue sheath, 15 mts
  • Single mode patch cord LC PC LC PC
  • Mini armored cable 8 cores with breakout kit, blue 3mm
  • IL≤0.3dB, RL≥50dB
  • Number mark on each sides for better clarification
LC APC Patch Cord With Armored Optical Cble
12 core armored patch cable lc apc lc apc single mode g.657 opnr riser, 2.5 mts, outdoor tpu sheath
  • LC APC to LC APC patch cord SM
  • Mini 12 core armoured fiber optic cable with breakout kit, black 3mm
  • IL≤0.3dB, RL≥60dB
  • Number mark on each sides for better clarification

Armored Patch Cable Structures

The most commonly used armored patch cables are simplex or duplex patch cord. Duplex armored cables come in two configurations: two tubes with two cores, and a single tube with two cores. The single tube with two cores is relatively cheaper.

Duplex or multi-core armored patch cables with connectors are subject to frequent pulling during use, making the split cables susceptible to breakage and poor tensile strength. Therefore, break out kits are often added to protect the branch points and provide greater tensile strength.

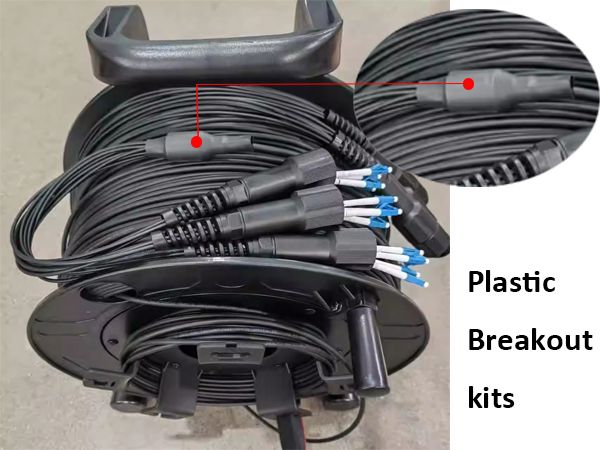

plastic breakout kit
plastic breakout kit

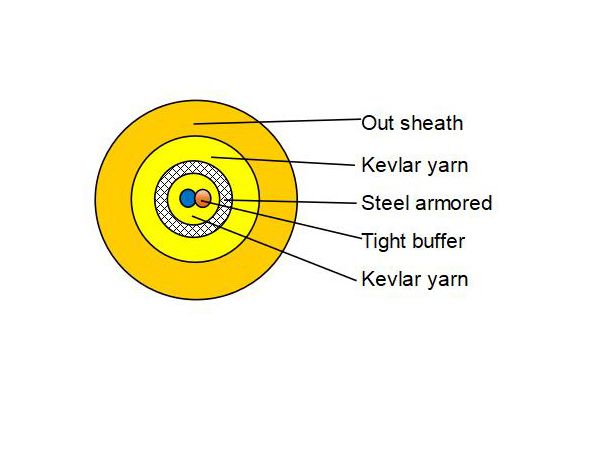

duplex armored cable in a unitube
duplex armored cable in a unitube

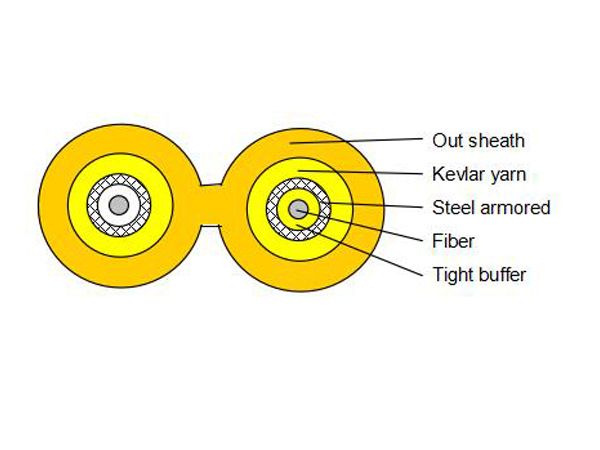

duplex armored cable zipcord
duplex armored cable zipcord

Armored Fiber Patch Cable Color

Armored fiber optic patch cables can use either single-mode or multimode fiber, which is easily discernible. The international standard for the sheath color of armored patch cables is blue for single-mode fiber and gray for multimode fiber.

The specific fiber type is also visible in the markings printed every meter on the cable sheath.

  • Descriptions with 9/125um, 9um, OS1, OS2, SM, Singlemode, G.657, and G.652 indicate single-mode fiber
  • Descriptions with 50/125um, 62.5/125um, 50um, 62.5um, MM, Multimode, OM1, OM2, OM3, OM4, and OM5 indicate multimode fiber.

The cable sheath color can also be customized to meet customer requirements, such as black, white, green, etc. SEND INQUIRY.

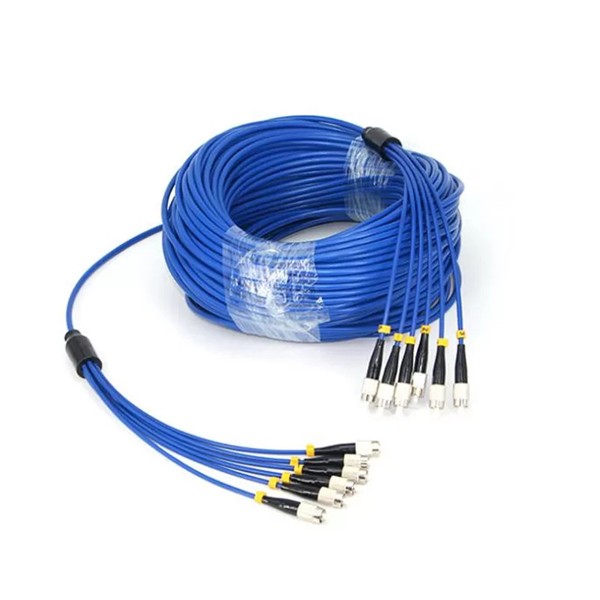

6 core armoured fiber optic cable single mode fc to fc
6 core armoured fiber optic cable single mode fc to fc

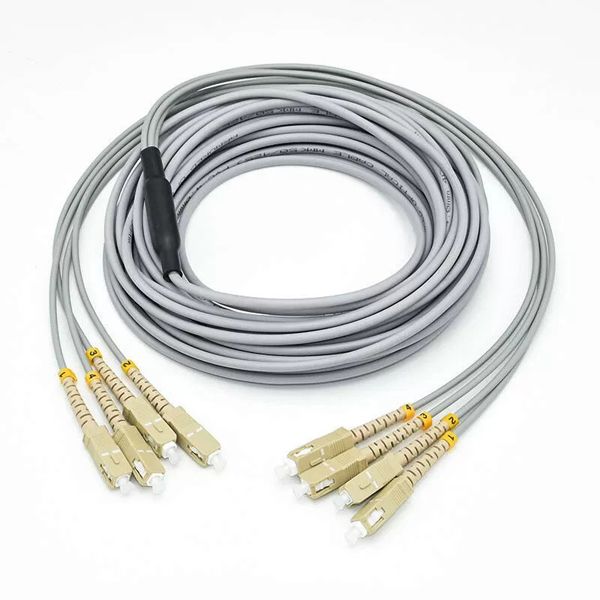

4 core armored multimode fiber optic cable sc to sc
4 core armored multimode fiber optic cable sc to sc

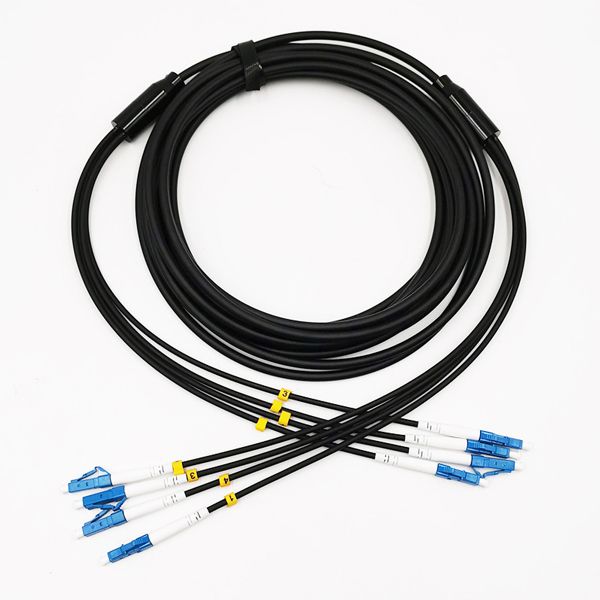

4 core singlemode armoured patch cord lc upc to lc upc
4 core singlemode armoured patch cord lc upc to lc upc

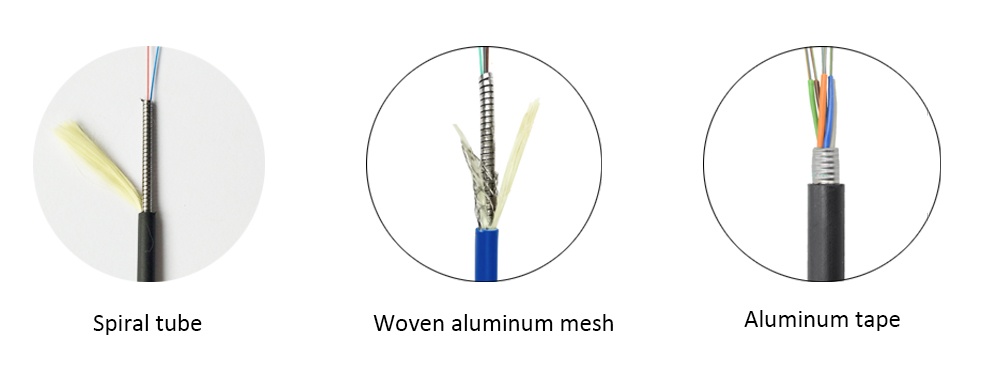

Armor Types of Fiber Patch Cable

A common form of armored patch cables is spiral stainless steel armor, which incorporates a layer of armor between the optical fiber, aramid yarn, and PVC outer sheath. This increases the cable’s tensile strength and is suitable for rodent protection and high-mechanical-stress environments.

Another type of armor is a braided metal mesh of aluminum or steel strips, which provides compressive strength and electromagnetic shielding, and is commonly used in industrial environments. These two types of armored cable structures can be combined to create a variety of designs.

Custom Armoured Patch Cord

Yingda can pre terminated armored fiber optic cable with different types of fiber optic connectors SC LC FC ST,etc. And in order to protect the fiber connectors during installation, Yingda can customize protection elements on the connector parts, such as pulling eyes, plastic spiral tubes, metal connector housing, cable reels for pulling.

Cable Sheath Pulling Eye

Woven net with heat shrink tube and glule inside, hook is cable sheath with kelvar yarns.

Woven Net Pulling Eye

Woven net with heat shrink tube and glue inside, custom length and diameter.

Pushable Metal SC Connector

Pushable SC metal housing, max. 8mm pipe, put on the plastic housing and white main body after pull out cable.

Copper Pulling SC LC Connector

Universal metal housing for SC LC connector, max.10mm diameter conduit or duct.
Armored Fiber Patch Cables Buying FAQ

Yingda accept start with small order to build up trust, but only focus on wholesaler, distributor or ISP, no retailer. Because the international freight cost for only few pieces are too high to afford, suggest you to buy local.

Yingda are fiber patch cord factory, no middle man, competitive price help you win more market.

It depends, our production time is fast, daily 10000pcs connectors.

Please leave your delivery address and details, then will check with if can door to door service or not.

It depends, please let us know your company details, then we will check with our agent in your country and let you know.

We only do TT, no credit, hope understanding and support. Then we can focus on our product quality more to help build long term business partnership.

Suggest to use G.657A instead of G.652D, an furthermore, if extremely limited space, suggest to use G.657B3, which bend radius is the smallest to 5mm.

Singe mode fiber optic patch cable is suitable for long distance transmission, especially G.652D.
