At present, the types of 400G QSFP-DD optical modules on the market include 400G SR8, 400G DR4, 400G FR4, 400G LR4, 400G LR8, etc. With the development of optical communication technology, the market size of optical modules continues to grow. 400G QSFP-DD packaging has the advantages of low power consumption, small size, and high speed, which effectively improves network capacity and meets user needs. It has become one of the most popular optical modules in hyperscale data centers and is also the preferred solution for medium and long distances in 400G data centers.
400G QSFP-DD FR4 Product Features
400G QSFP-DD FR4 is a full-duplex transceiver integrated optical module, which adopts hot-swappable QSFP-DD package, complies with QSFP-DD MSA and IEEE 802.3cu 400GBASE-FR4 Ethernet standards, adopts dual LC optical ports, and can reach a transmission distance of up to 2km through single-mode fiber (SMF), with a maximum power consumption of less than 10W.

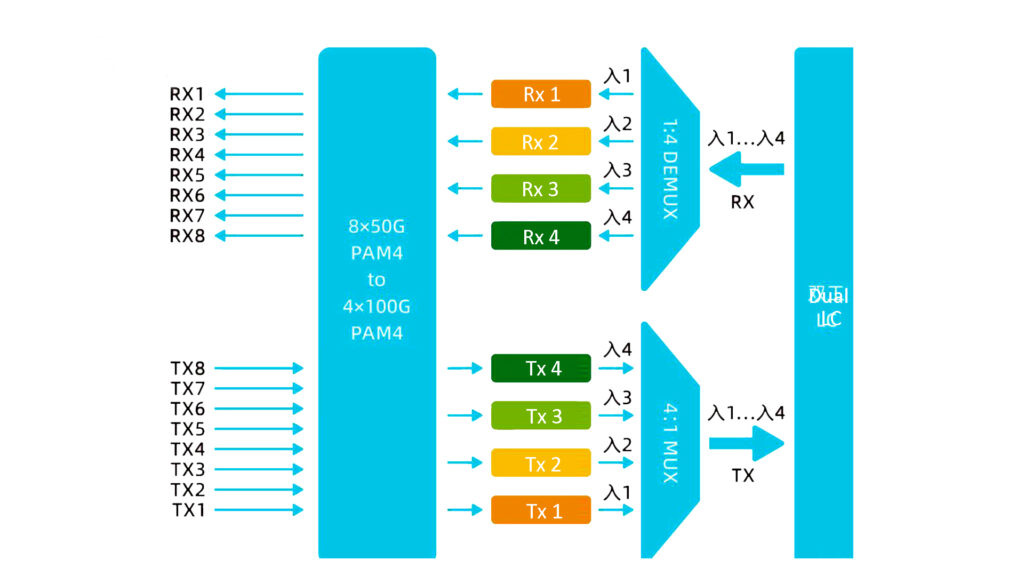

Working Principle
400G QSFP-DD FR4 transceivers adopts 4 CWDM wavelengths with uncooled EML lasers, and achieves a single-fiber 400G transmission rate through DEMUX/MUX modules. The module converts 8 channels of 53.125Gb/s electrical signals into 4 channels of 106.25Gb/s optical signals, and multiplexes them into a single channel for 425Gb/s optical transmission. Likewise, it demultiplexes a 425Gb/s input optical signal into 4-channel optical signals and converts them into 8-channel output electrical signals at the receiving end.

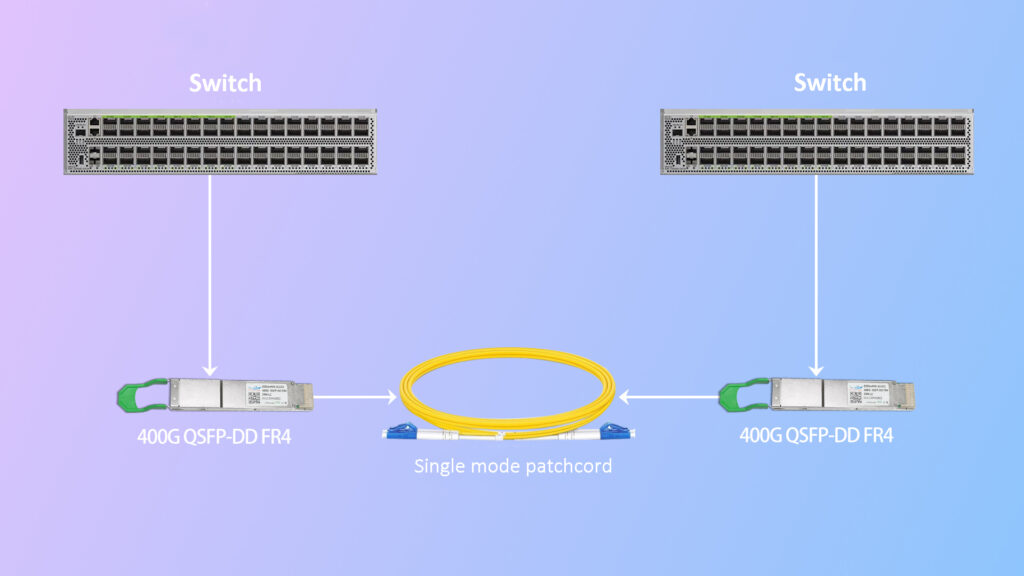

Application
As data centers have an increasing demand for higher-speed optical transceivers, 400G PAM4 modulation products have become a trend in the future data center market. As a medium- and long-distance transmission solution for 400G QSFP-DD optical modules, 400G QSFP-DD FR4 optical modules are widely used in 400G Ethernet, data centers, cloud computing and other scenarios.

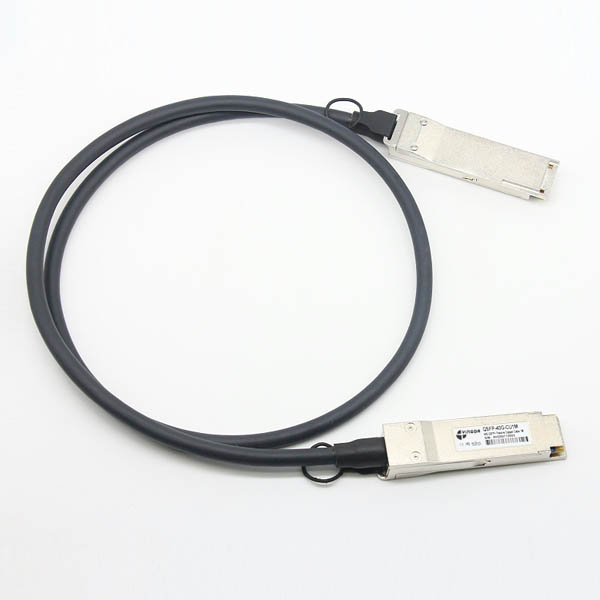

Yingda provide all types of AOC active optical cables and DAC direct attach cable instead of 400G QSFP-DD transceivers, which is more cost saving and effective except optical transceivers, contact us for best AOC cable price.
