In the ever-evolving world of high-performance optical networks, MPO cable play a pivotal role in enabling efficient, high-density fiber optic connections. These connectors are used to facilitate fast and reliable signal transmission across fiber optic networks, with applications spanning from data centers and telecommunications networks to industrial and enterprise-grade solutions. This article will provide an in-depth comparison of two widely used types of MPO —MPO 8 and MPO 12. We will explore their differences, similarities, technical parameters, and practical applications, offering insights into which connector type best suits specific needs.
Understanding MPO 8 Fiber Optic
MPO 8 connectors are designed for medium-density fiber optic connections, offering a balanced combination of performance, capacity, and cost-effectiveness. They are ideal for situations where the transmission capacity requirements are high, but the physical space for installation is limited.
Structure and Working Principle of MPO 8

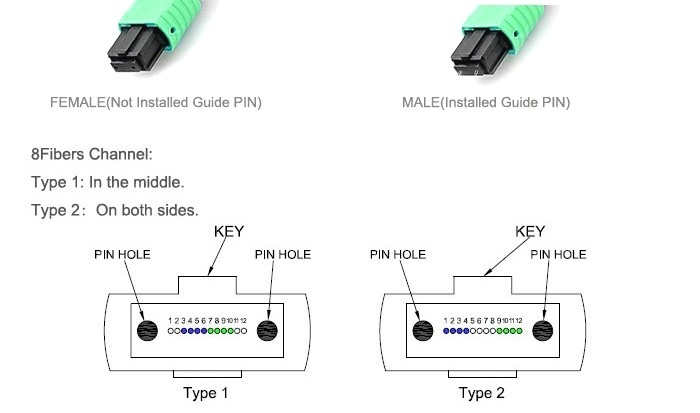

The MPO 8 connector consists of eight independent fiber cores arranged side by side. Each fiber core is housed within a modular arrangement, which is precisely aligned to ensure stable optical signal transmission.
The key components of an MPO 8 include:
- Fiber Arrangement Module: This module houses the optical fibers and ensures that each fiber is correctly aligned during the connection process.
- Metal Shell: A robust outer casing protects the connector from physical damage and helps maintain alignment.
- Precise Mechanical Docking: The optical fibers are docked and connected via mechanical precision, ensuring low insertion loss and high-quality signal transmission.
The working principle of the MPO 8 connector involves docking and connecting all eight optical fibers simultaneously. This allows for high-speed, multi-channel signal transmission, typically used in bidirectional synchronous communication.
Key Technical Specifications of MPO 8
MPO 8 connectors come with a set of performance characteristics that make them suitable for various medium-density applications.
Some of the key technical parameters include:
- Number of Fiber Cores: MPO 8 connectors feature 8 independent fiber cores, making them a versatile solution for medium-density optical transmission applications.
- Optical Insertion Loss: The typical optical insertion loss of an MPO 8 connector ranges from 0.2 to 0.5dB. This low insertion loss ensures that the signal quality remains high and that the loss of signal strength during transmission is minimized.
- Return Loss: Return loss refers to the amount of light that is reflected back into the fiber connector. MPO 8 connectors generally have a return loss between 45 and 60dB, indicating excellent reflection characteristics and minimizing signal degradation.
- Operating Temperature: MPO 8 connectors can function within a temperature range of -40°C to +75°C, making them highly suitable for deployment in outdoor or harsh environmental conditions.
- Durability: These connectors are designed to withstand over 300 connection and disconnection cycles, which ensures that they can be used reliably over long periods.
Applications of MPO 8
MPO 8 connectors are commonly used in medium-density optical communication systems, such as small data centers, telecommunication networks, and enterprise-level optical networks. They provide a cost-effective and high-performing solution for applications that do not require the highest fiber density but still demand high-speed signal transmission.
Understanding MPO 12 Fiber Optic
MPO 12 represent an evolution of the MPO 8 , offering higher fiber density and more substantial transmission capacity. These connectors are used in high-bandwidth, high-density environments, where large amounts of data need to be transmitted quickly and reliably.
Structure and Working Principle of MPO 12

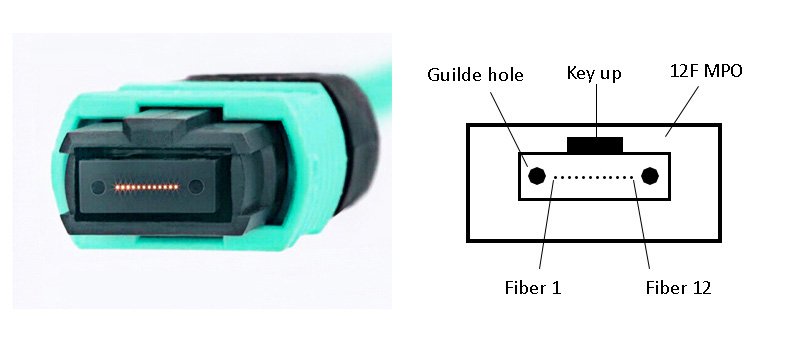

The MPO 12 connector features 12 independent fiber cores, arranged in a similar fashion to the MPO 8 connector but with a higher fiber density.
Key features of the MPO 12 include:
Fiber Arrangement Module: Like MPO 8, the MPO 12 has a precision-engineered fiber arrangement module, but it accommodates 12 fiber cores for increased transmission capacity.- Metal Shell: The metal shell of the MPO 12 connector provides durability and helps maintain fiber alignment, ensuring minimal signal loss.
Mechanical Docking: The connector uses high-precision mechanical docking to ensure that all 12 fiber cores are connected simultaneously, facilitating reliable, high-speed transmission.
The MPO 12 operates on the same principles as MPO 8, but it supports higher fiber density, allowing for bidirectional transmission of 12 optical signals at once.
Key Technical Specifications of MPO 12
- Number of Fiber Cores: MPO 12 connectors feature 12 independent fiber cores, making them ideal for high-density optical transmission applications, such as large data centers, 5G base stations, and high-performance network installations.
- Optical Insertion Loss: Like the MPO 8, the typical insertion loss for MPO 12 connectors ranges from 0.2 to 0.5dB, which ensures optimal signal quality and low transmission loss.
- Return Loss: MPO 12 connectors have a return loss value of 45 to 60dB, offering excellent reflection characteristics and ensuring that the signal quality is not compromised.
- Operating Temperature: The operating temperature range for MPO 12 connectors is also -40°C to +75°C, making them suitable for deployment in challenging environments and outdoor applications.
- Durability: MPO 12 connectors typically withstand more than 500 connection and disconnection cycles, making them even more durable and reliable than MPO 8 connectors.
Applications of MPO 12
MPO 12 connectors are commonly used in high-density applications where high bandwidth is essential. These connectors are widely deployed in large data centers, telecommunications infrastructure, 5G networks, and enterprise-grade optical networks. They are perfect for situations where maximizing fiber density is crucial for managing large-scale data traffic.
Key Differences Between MPO 8 and MPO 12
While both MPO 8 and MPO 12 connectors share similar construction principles, they differ in several important ways, including the number of fiber cores, physical dimensions, performance, and application scenarios.
Number of Fiber Cores
The most apparent difference between MPO 8 and MPO 12 is the number of fiber cores:
MPO 8 contains 8 fiber cores, making it suitable for medium-density applications where the demand for bandwidth is moderate.
MPO 12, on the other hand, features 12 fiber cores, enabling higher data transmission capacity. It is ideal for high-density environments that require massive bandwidth, such as large data centers and 5G networks.
This increased fiber density in MPO 12 provides more transmission channels and greater bandwidth, making it more suited for large-scale applications where high-speed, high-volume data transfer is essential.
Physical Size and Dimensions
Another key difference between MPO 8 and MPO 12 is their physical size:

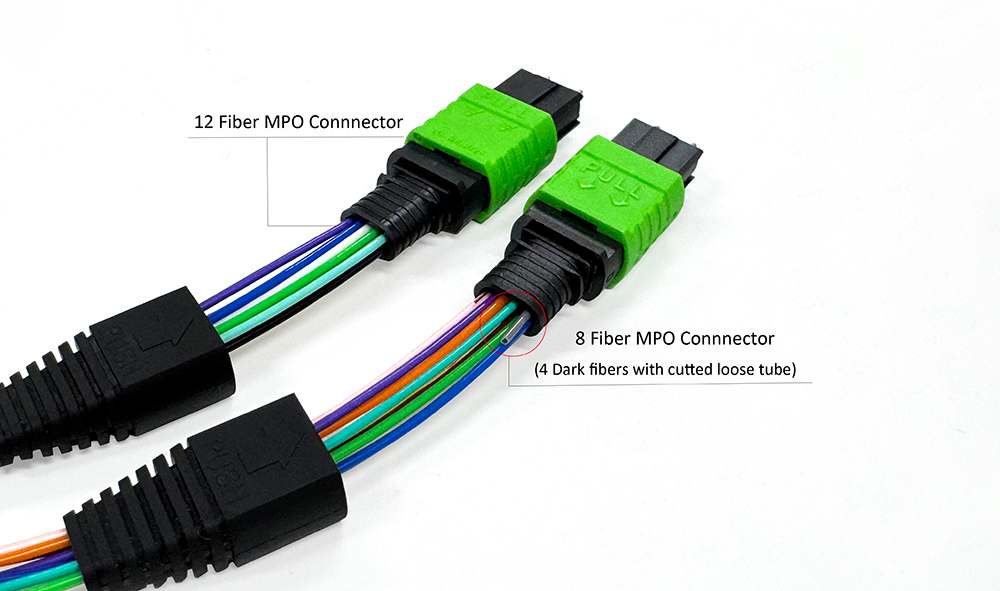

MPO 12 connectors are slightly larger and heavier than MPO 8 connectors due to the additional fiber cores.
The larger size of MPO 12 may pose installation challenges in certain spaces with limited physical room, such as dense server racks or small enclosures. However, the increased fiber capacity makes MPO 12 a more efficient choice for larger, more complex systems.
Despite its larger size, the MPO 12 connector can still fit into the same types of ports and infrastructure used by MPO 8, but extra care may be needed during installation to ensure proper management of the larger fiber bundle.
Performance Indicators
Both MPO 8 and MPO 12 connectors are designed to offer low insertion loss and high return loss, ensuring efficient and high-quality data transmission. However, MPO 12 connectors typically exhibit better overall performance due to the higher fiber density and additional channels:
Insertion Loss: Both connectors generally have an insertion loss range of 0.2 to 0.5dB. However, due to the more advanced design of MPO 12, its performance tends to be slightly better, providing more stable signal transmission.
Return Loss: Both connectors maintain return loss values between 45 and 60dB, ensuring excellent signal quality and minimal interference.
Application Scenarios
MPO 8 connectors are best suited for medium-density applications, such as small to medium-sized data centers, enterprise networks, and optical communication systems that don’t require ultra-high bandwidth.
MPO 12 connectors are designed for high-density applications, including large data centers, 5G networks, and applications requiring high-bandwidth optical transmission.
How to Choose Between MPO 8 and MPO 12
When selecting between MPO 8 and MPO 12 connectors, it is crucial to consider factors such as the application scenario, fiber layout constraints, and the performance requirements of the system.
Choosing Based on Application Scenarios
Medium-Density Applications: For smaller data centers, office buildings, and enterprise networks, MPO 8 connectors offer a cost-effective solution with adequate capacity for moderate data traffic.
High-Density Applications: For large data centers, 5G base stations, and high-performance networks, MPO 12 connectors provide the necessary fiber density and bandwidth to handle large-scale data transmission.
Choosing Based on System Performance
Transmission Capacity: If your application requires high transmission capacity and bandwidth, MPO 12 is the better choice due to its higher fiber core count.
Signal Quality: While both connectors offer high return loss and low insertion loss, MPO 12 connectors are generally better suited for applications where the transmission quality needs to be top-notch.
System Reliability: MPO 12 connectors typically have a higher mechanical durability, supporting more connection cycles. If system reliability and longevity are important, MPO 12 offers greater resilience.
Choosing Based on Installation Constraints
Consider the physical space available for installation. If your system is in a constrained or densely packed environment, MPO 8 might be more suitable, while MPO 12 may require more careful planning during installation due to its larger size.
Conclusion
MPO 8 and MPO 12 connectors each have distinct advantages depending on the specific needs of your optical network. MPO 8 is an excellent choice for medium-density applications where cost-efficiency and moderate bandwidth are required, while MPO 12 is the connector of choice for high-density, high-bandwidth environments such as large data centers and 5G networks.
Choosing the right MPO connector involves balancing fiber density, performance requirements, and physical space constraints. By understanding the differences and applications of both MPO 8 and MPO 12 connectors, you can make an informed decision that ensures optimal performance and scalability for your optical communication system.
