In the era of big data, high-density, high-bandwidth applications are becoming more and more common, and passive optical cables or copper wire systems emerge. In order to ensure transmission stability and flexible applications, users urgently need a new type of product as the main transmission medium for high-performance computing and data centers.
Compared with traditional cables, optical transmission cables have the advantages of high transmission speed, long transmission distance, low energy consumption, and easy use.
What is an AOC cable?
AOC is short for Active Optical Cable. Active optical cable is a high-speed cable that integrates photoelectric conversion technology. It refers to a communication cable that requires the use of external energy to convert electrical signals into optical signals or convert optical signals into electrical signals during the communication process. The optical transceivers at both ends of the optical cable provide photoelectric conversion and optical transmission functions.
AOC cable structure and technology
AOC consists of optical fiber, photoelectric converter (Transceiver) and connector. Optical fibers are responsible for long-distance transmission of signals, photoelectric converters convert electrical signals into optical signals, and connectors ensure compatibility with other devices.
AOC Cable Advantage
- High rate: Supports 10G, 25G, 40G, 100G, 200G, 400G, 800G or even higher transmission rate.
- Long distance: Compared with copper cable, AOC can achieve longer transmission distance.
- Low power consumption: Compared with copper cables of the same performance, AOC consumes less power.
- Low latency: Provides stable low latency performance.
- Easy to deploy: lightweight and flexible, easy to install and manage.
Common interfaces of AOC cables
AOC cable usually use SFP+, SFP28, QSFP+, QSFP28, QSFP-DD, QSFP56, OSFP and other interfaces, and are compatible with mainstream equipment on the market, including: Huawei, Cisco, HP, ZTE, HBC, Ruijie, Brocade, Juniper, D-link, Intel, Dell, IBM, H3C, etc.
AOC Cable Application
It is mainly used in the field of data communications, especially in scenarios such as data centers, high-performance computing, and enterprise networks, to provide ultra-high-speed point-to-point connections. Compared with traditional passive copper cables, AOC cables combine the high-speed transmission characteristics of optical fiber and the ease of use of copper cables, making them ideal for high-speed, long-distance, and low-latency connections.
- Data center: high-speed connections between servers and switches.
- High-performance computing: high-speed data exchange within supercomputers.
- Enterprise network: high-performance local area network construction.
- Cloud services: high-speed, long-distance connections in cloud data centers.
Reminder
- Appropriate length: Choose the best length according to actual needs to avoid wasting resources caused by being too long.
- Compatibility confirmation: Ensure that the AOC cable is compatible with the interface of the target device. Which brands are compatible: Cisco, Arista, Dell, Juniper, Nvidia, Mellanox, Huawei, HP, ZTE, HBC, Ruijie, Brocade, D-link, Intel, IBM, etc.
- Environmental factors: Although AOC SFP cables are less sensitive to the environment than copper cables, care must be taken to avoid excessive bending radius.
With the continuous advancement of technology, the performance of AOC will be further improved, providing strong support for building efficient, stable, and energy-saving network systems. When selecting AOC cables, factors such as speed, length, and cost should be comprehensively considered based on specific application scenarios and needs to ensure efficient operation of the network.
FAQ
What kind of optical cable is 25G SFP28-AOC?
SFP28 25G AOC Active optical cables is hot-plugged optical fibre connectors with low power consumption and are suitable for short distances transmission. AOC sfp+ cable are suitable for connections within a rack or between adjacent racks. OM3 has a transmission distance of more than 70 meters and OM4 has a transmission distance of more than 100 meters.
What is the advantage of SFP28-25G-AOC active optical cable?
SFP28 25G AOC cable is high speed optical cable, which meet the needs of internal interconnection in data centers and enterprise campus network upgrades. It adopts AOC photoelectric integrated design, low-latency transmission, ultra-stable, effectively reduces signal loss, low-power, energy-saving and environmentally friendly, and greatly reduces operation and maintenance costs. Built-in optical fiber, light weight, strong flexibility, easy wiring and no space required, plug and play, quick deployment and worry-free.
What are the main recommended 200G 400G 800G AOC models?
Distinguish from the speed:
200G AOC cable: 200G to 200G, 200G to 2x100G, the longest distance is 0.5 meter to 3 meters.
400G AOC cable: two types of packages QSFP112, OSFP, maximum distance from 0.5 meters to 2 meters, can be made into 400G to 400G, 400G to 2x200G or 4x100G.

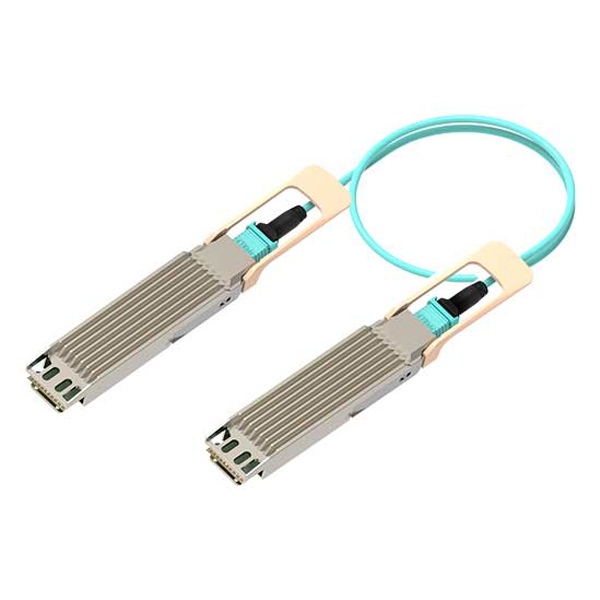

800G AOC cable: The transmission distance is 0.5meter, 1meter or 2 meters, and the longest distance is 2 meters. . It can be divided into 800G to 2x400G, or 800G to 800G.
What kind of cable is used for 400G optical transceivers? SR4 or SR8?
- 400G QSFP56-DD-SR8 is 8 transmitters and 8 receivers = 8*56G, using 16 fiber MPO patch cord, which must be APC end-face and must be MPO 16 connector.
- 400G QSFP56-DD-SR4– is 4 transmitters and 4 receivers = 4x112G, using 8 fiber MPO patch cords which must be APC end face and are MPO 8 connectors.
QSFP-DD optical modules are divided into QSFP-DD-SR4 and QSFP-DD-SR8. What is the difference between SR4 and SR8?
400G optical transceivers are available in two packages: QSFP-DD and OSFP. Among them, QSFP-DD is divided into SR4 and SR8, SR4=4*112G, SR8=8*56G, and the single wavelength transmission rate are different.
What is the difference 200G AOC cable vs DAC cable?
AOC cable and DAC cable are suitable for different application scenarios. DAC is a transmission used within the cabinet, and AOC is interconnected across cabinets or between cabinets.
DAC has low power consumption, does not require photoelectric conversion, has lower cost, and is suitable for short-distance transmission, such as less than 3 meters.
AOC is medium to long distance transmission about 5-20 meters, suitable for cross-cabinet applications.
Why can AOC cable of Yingda pass-through rate reach 99%?

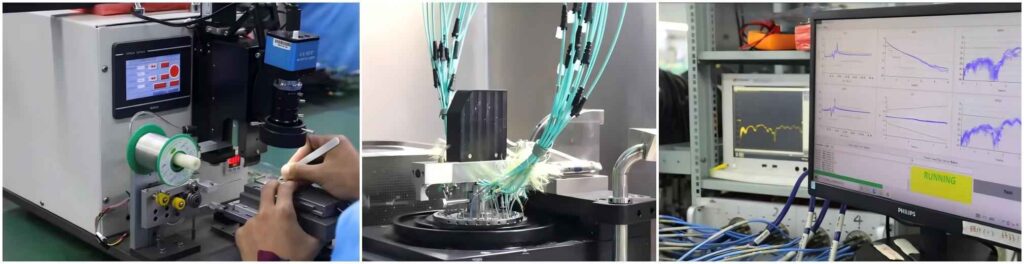

In addition to the importance of a stable optical engine, the fiber polishing process is very important, and the fiber end face must be well controlled. Yingda adopt famous brand polishing machines, and skilled workers to polish and grinding the optical connectors, which ensure high quality end face.
What are the characteristics of 10G-SFP+AOC cable?
10G-SFP-AOC1M has a transmission rate of up to 10Gbps, easily meeting high-speed transmission requirements. Low power consumption design, saving energy costs. Optical cable is a must-have for low-power anti-interference transmission. Its excellent anti-interference performance ensures stable data transmission. It is small in size and light in weight. It is perfectly suitable for high-password wiring in data centers. Whether it is a data center or an enterprise network, it can show its talents.
How to ensure product AOC quality?

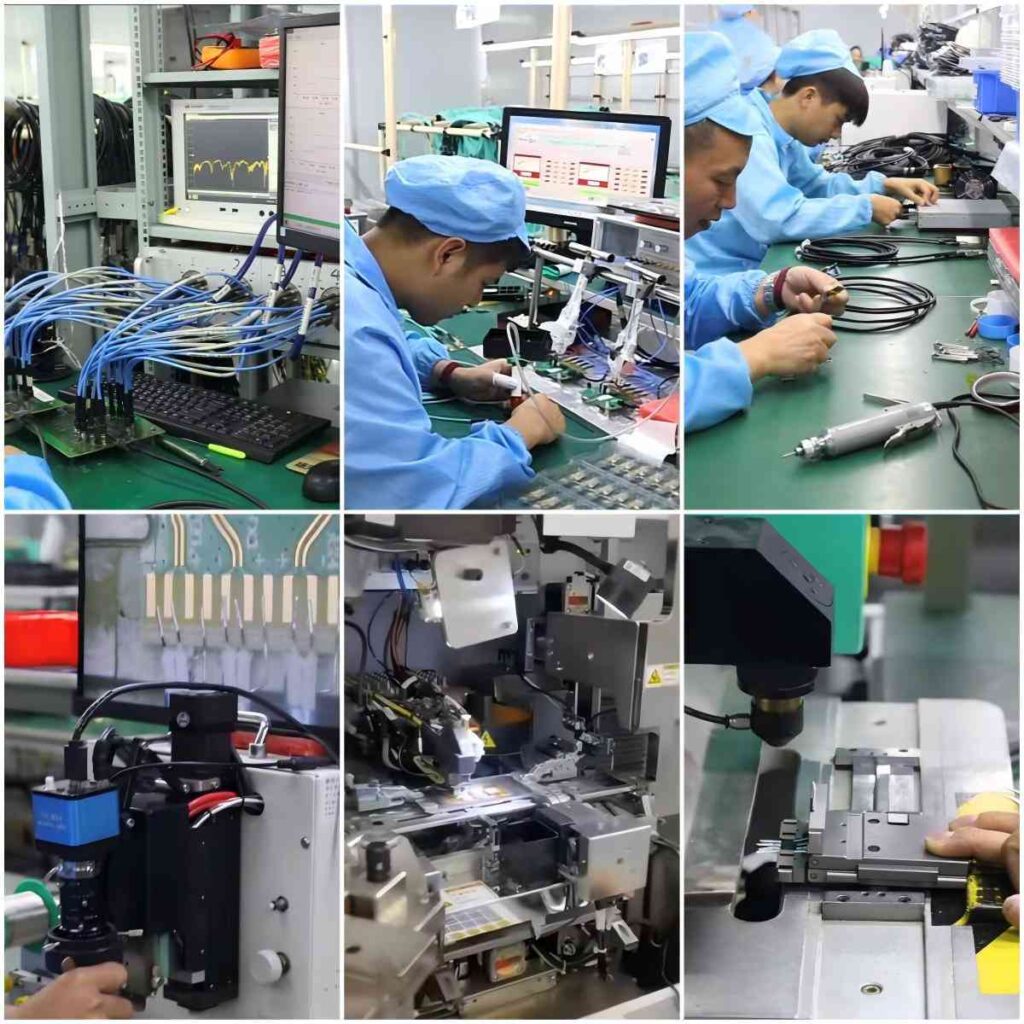

YINGDA AOC cable go through 28 strict tests, 99.9% pass rate, daily on-site inspections to observe employee status, environment, product production process and emphasis on detailed control.
Yingda 10G optical modules mainly perform comprehensive testing like optical power testing, eye diagram testing, wavelength testing, crosstalk testing,etc, ensure stable and reliable performance with advanced testing equipment and rich testing experience workers.
New product launch 800G QSFP-DD AOC cable
This aoc cable package is QSFP-DD, which is mainly used on domestic Huawei, H3C, and ruijie 800G switches, or on deepseek all-in-one machines to cope with the domestic all-in-one machine market. It can be used from 5 meters to 30 meters to 50 meters.
Which brands are YINGDA’s AOC cables compatible with?
The optical transceivers and AOC cables produced by Yingda are compatible with routers, switches, network cards and other products on the market, such as: Cisco, Arista, Dell, Juniper, Nvidia, Mellanox, HPE, ZTE, Huawei, Ruijie, H3C, etc.
What are the advantages of 800G-AEC cables compared with AOC and DAC?
The transmission distance of AEC products can be from 2 meters to 7 meters, the power consumption is at least 30% lower than AOC or 800G optical module + MPO jumper, and the price is 50% lower. AEC has great advantages in transmission distance of 2-7 meters.
ODFP-800G-AEC Cable | New Product Release
ODFP-800G-AEC Cable supports 800G Ethernet and IB network, with ultra-high speed; adopts advanced technology, low power consumption and ultra-energy saving, hot-plugged design. It is easily compatible with various switches. Regardless of data center or AI computing scenarios, it can show its talents and help network performance leap forward. network upgrade,
Why choose Yingda optical module instead of original optical module?
Yingda’s optical modules (optical transceivers) are low price, high quality, we have a complete upstream and downstream supply chain, independent research and development, efficient production capacity, 24-hour production and delivery, safe inventory, and the cost of compatible optical modules is more than 50% cheaper than original optical modules.
200G QSFP56-2X100G QSFP56 AOC cable
The 200G QSFP56 to 2 x 100G QSFP56 active optical cable use one or two of the channels and adopts the QSFP56 packaging. It is a common connection method in computing centers with a maximum transmission rate of 200G. This AOC cable is mainly used for Mellanox 8790 or 8700 switches with NVIDIA CX6 network cards.
400G OSFP-SR8-2xQSFP56 AOC cable
This 400G AOC cable is plugged into the 800G 9790 9700 switch, and the other end is plugged into the CX6 or CX7 network card. This is widely used in China’s computing centers.

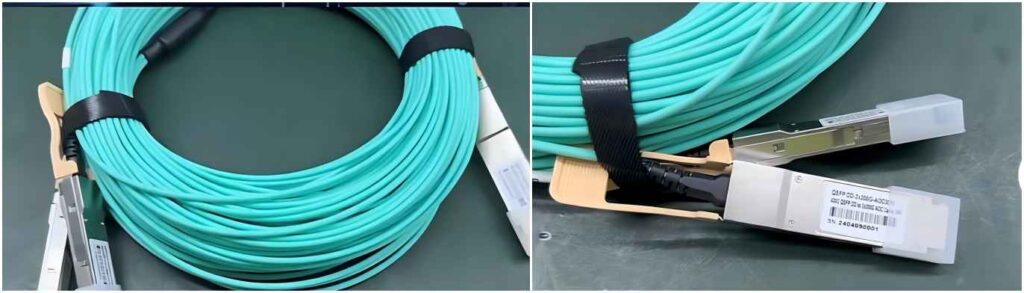

400G OSFP-SR8-2x200G QSFP56 AOC cable
All AOC active optical cable assembly must be tested for compatibility and flow on the corresponding switch before shipment. They can only be shipped after passing the test. One end is a 400G OSFP package with a heat sink, which can reach up to 800G. The other end is 2 200G QSFP56 packages optical transceivers, which can be used on 200G switches. Our company is compatible with Huawei, Ruijie, H3C, Cisco, Hpe, Intel, Nvidia, mellanox and other brands.
