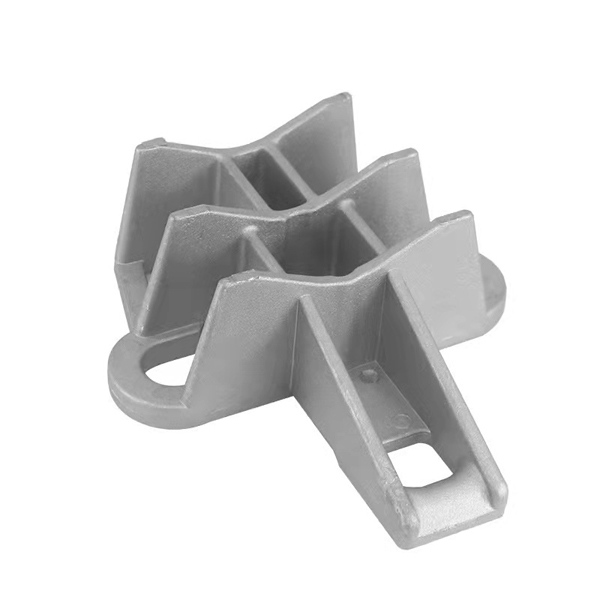

Description
Features
- Easy installation and light weight;
- Fixed to the pole by 2 stainless steel band (20 mm) or 1 bolts 14~16mm diameter;
- Provide the principal of all in one device, by offering up to 5 clamping points;
- High breaking load allows withstand a sufficient load without anchor clamp slip or break;
- Materialis aluminum alloy, passivized ensure high mechanical strength, long life span;
- The installation can be proceed on the poles of walls, wooden, metal concrete materialmade, by using stainless steel band or bolts.
UPB Bracket Dimension
Specification
| Model | UPB |
| Dimension(L*W*D) | 121*114*45mm |
| Material | Aluminum alloy |
| Bracket type | Tension |
| Application | Pole |
| Span | 70-200 meters |
| Max. Breaking Load (MBL) | 5KN |
| Net weight | 200g |
Installation with steel bands
The UPB bracket can be installed on any type of pole – drilled or undrilled – with two 20×0.7mm stainless steel bands SB207 plus two buckles B20 (check our pole banding products). Usually allow two bands of one meter each per bracket.
Installation with bolts
If the top of the pole is drilled (wooden poles, occasionally concrete poles) the UPB bracket can also be secured with a 14 or 16 mm bolt. The bolt length should be at least equal to the pole diameter + 50 mm (bracket thickness). Check our bolts.
Pack information
| Quantity/carton | Carton size | Gross weight/Carton | |
| 50pcs | 42*28*23cm | 12kg |
