Outdoor FTTx 12 Cores Optical Fiber Splice Box

Description

Optical Fiber Splice Box Features

Total enclosed with key and buckle, square shape, light weight, compact size;
High strength engineer plastic, wet-proof/water-proof/dust-proof,anti-aging, resistance to chemical and U.V attack;
Clampfor feeder cable and drop cable, mix fiber splicing/ fixation/storage/distribution in one;
Cable, pigtails are running through own path withoutdisturbing each other;

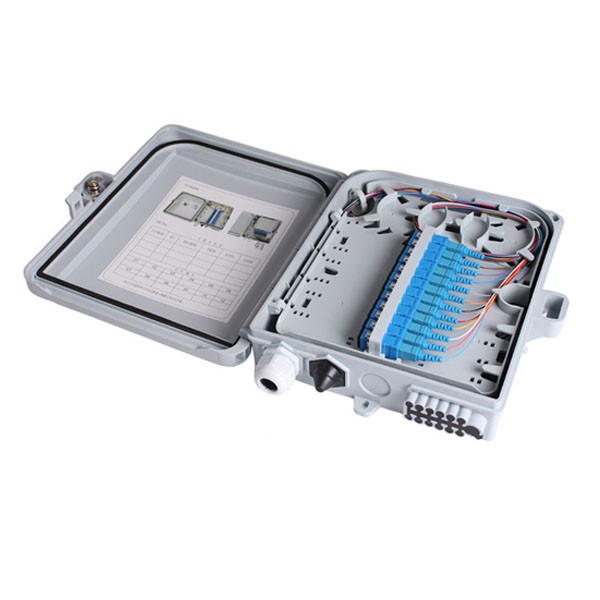

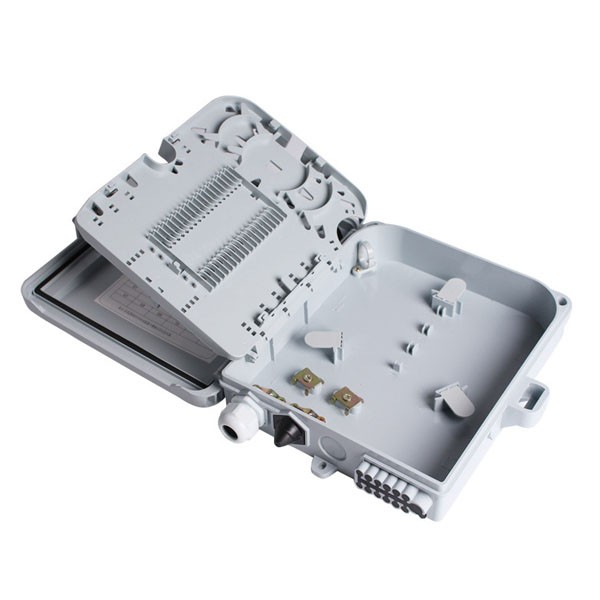

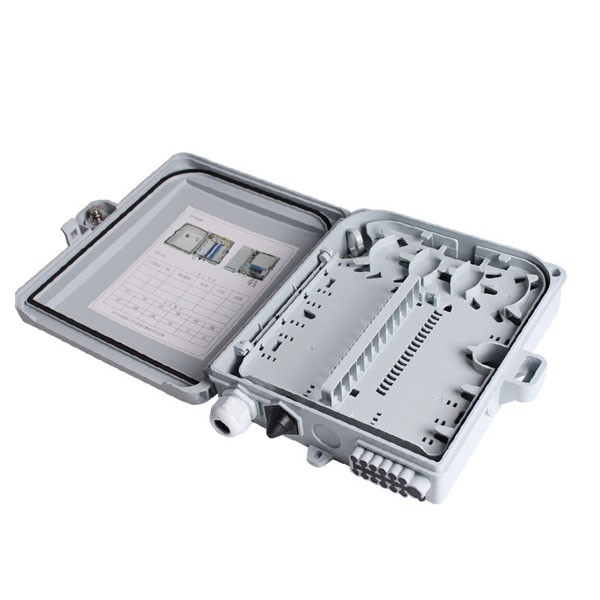

Rotate platecan be flipped up, front for 1:8 splitter with 12 SC adapter, bottom with 1pc 24 core splice tray;
Feeder cable can be placed by expression port,easy for maintenance and installation;

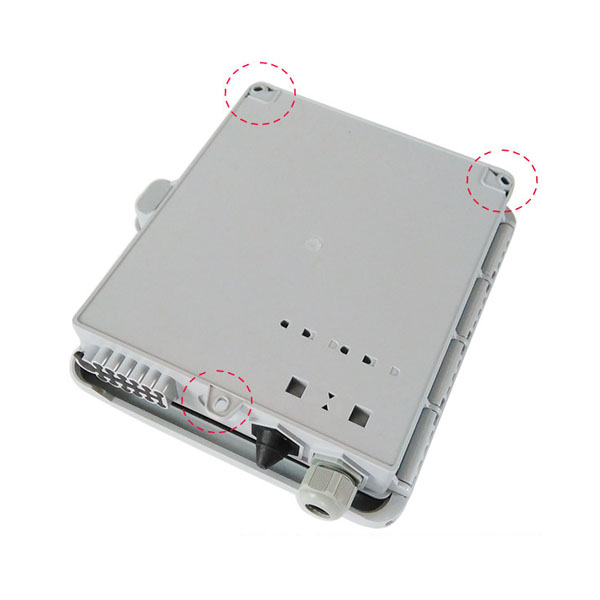

Outdoor Wall mount or pole mount, IP65 protection class;
Laser mark and logo print reserved on the lid.

Optical Fiber Splice Box Specification

Model	OTB-12C

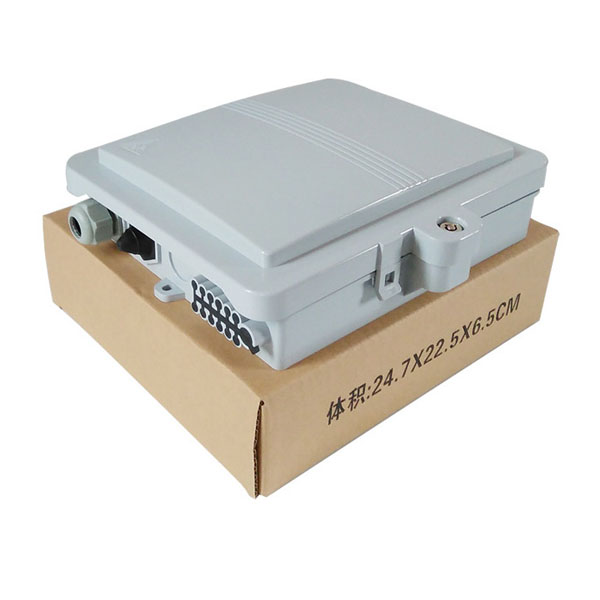

Dimension(ABC)	23520060mm
Max.Capacity	24 cores (single fiber)
Cable ports	2 round ports
Cable diameter	Φ15mm

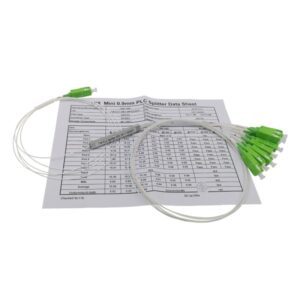

Splitter quantity	1pc 1×8 or 1×12 steel tube splitter
Adapter quantity	12 SC simplex with flange
Light weight	80g
Material	PC/ABS
Color	Grey
Mounting method	Pole, wall

Optical Fiber Splice Box Standard Accessory

Heat shrink protection sleeve, metl key, round cable port seal, wall mounting screws, cable clamps, nylon tie, buffer tube, label mark, etc

Optical Fiber Splice Box Product Details

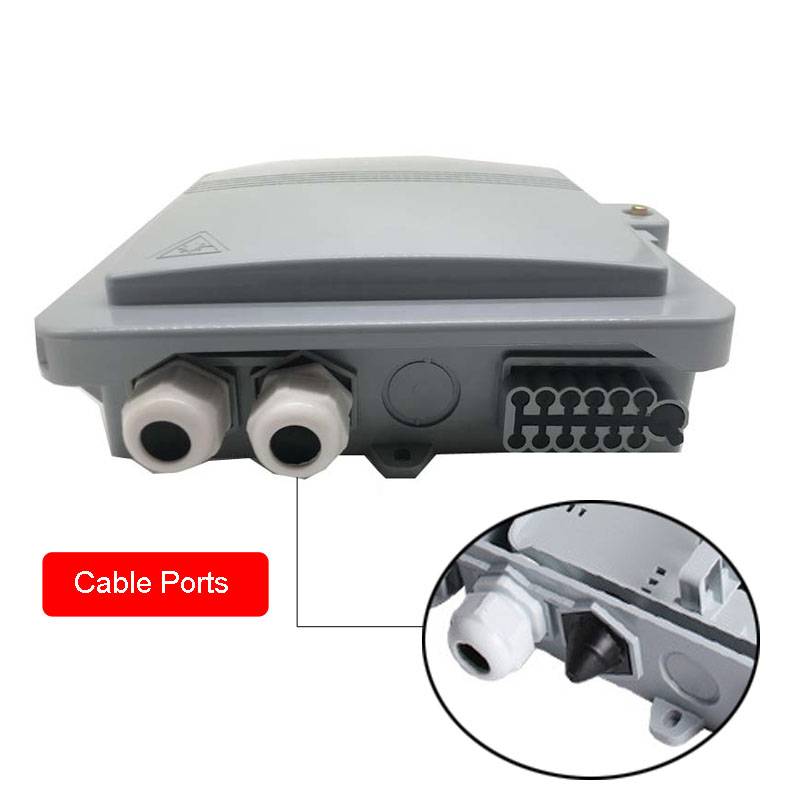

There are total 2 pcs round cable ports for feerder cable go in and out of the fiber nap box with rubber seals, one more is for future use in middle. Construction worker can fix the cable strength members like aramid yarn, aluminum tape, waterblocking layer, etc on the internal cable fixture sheets, with cable clamps or nylon ties. We can change the cable glands into rubber seals for flexible cable termination and distribution.

On the right is for drop cable exit, there are 8 round ports rubber seals, suitable for FTTH flat drop cable 2x3mm, 2x5mm or 3mm round soft cables.

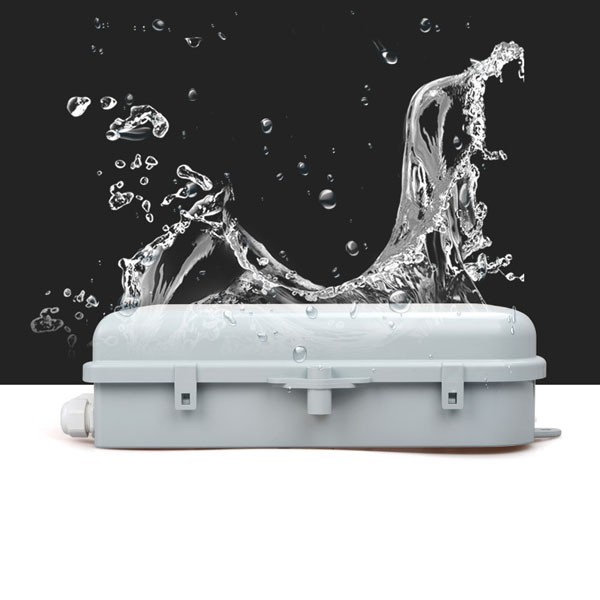

The box is outdoor waterproof protection IP65, with rubber seal ring around the internal cover box and with key and buckles lock to hold them tightly, so you can mounting it on wall or poles outside home.
