Description
LC To LC Fiber Optic Cable Feature
- Robust fiber-optic connector for 2 and 4 channels with screwed mating mechanism
- IP68 protection, salt-mist proof, and EMI protection
- High shock, vibration, and mechanical resistance
- Broad temperature range and wide range of indoor and outdoor cables
- Easy, reliable and cost-effective installation
LC Duplex Connector Type
| Type | Reference | Fiber type | Polishing type |
| LC | IEC61754-20 | Single mode duplex | APC: Green connector UPC: Blue connector |
| Multimode duplex | UPC: gray connectors |
LC To LC Fiber Optic Cable Tolerance
| Jumper tolerance requirement | |
| Overall length (L)(M) | Length of tolerance (cm) |
| 0≤L≤20 | ±10 |
| 20≤L≤40 | ±15 |
| L≥40 | ±0.5% |
LC To LC Fiber Optic Cable Details

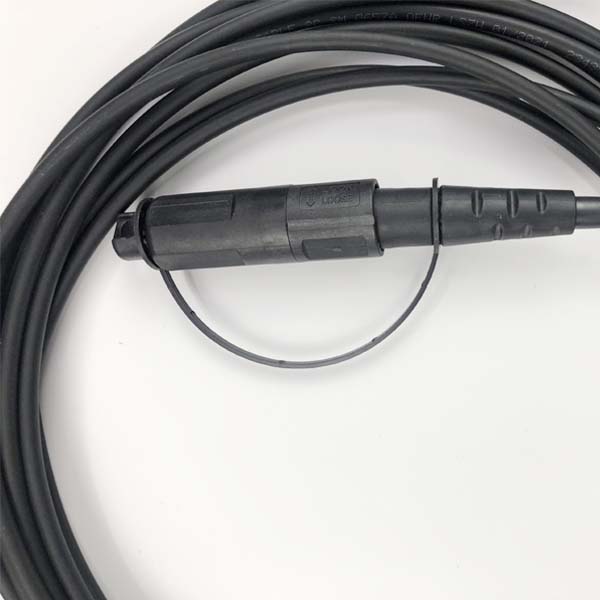

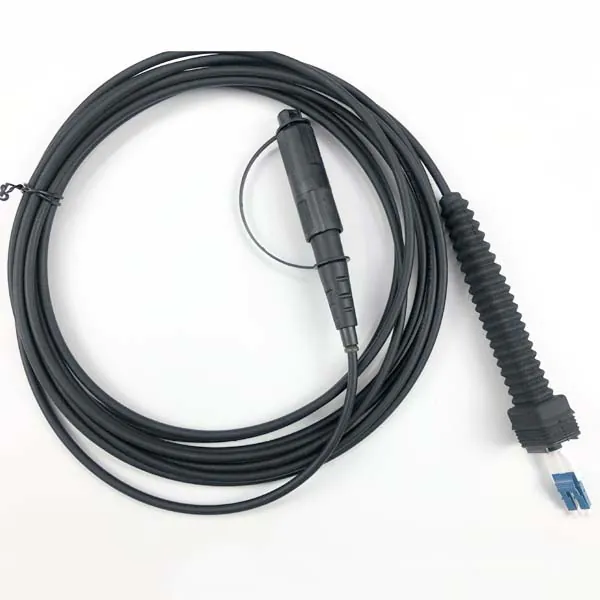

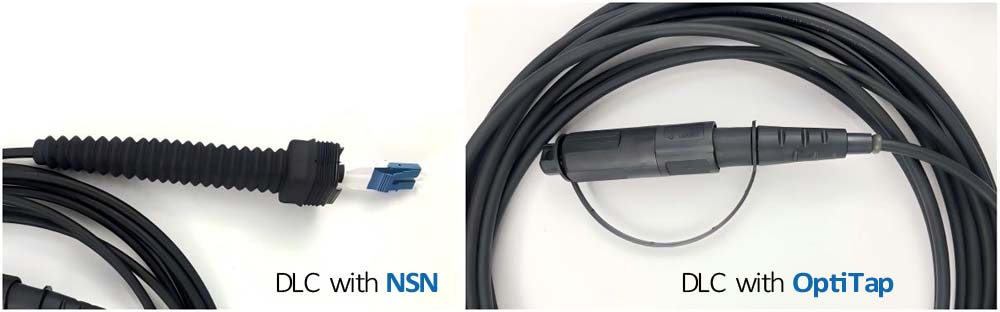

This NSN to Optitap patch cord are LC to LC fiber optic cable, which use 2 cores singlemode duplex 5.0mm outdoor cable, both sides are IP68 protection.
Though the NSN boot size is fixed, but the internal LC duplex connector can be uniboot or dual boots separately, and the uniboot can be straight type or 90 degree or 45 degree bending. All boots will be configured with customer request. Meanshile, if the cable itself with armor, or if customer need to fanout with armor for better mechanical protection, we can help custom too.

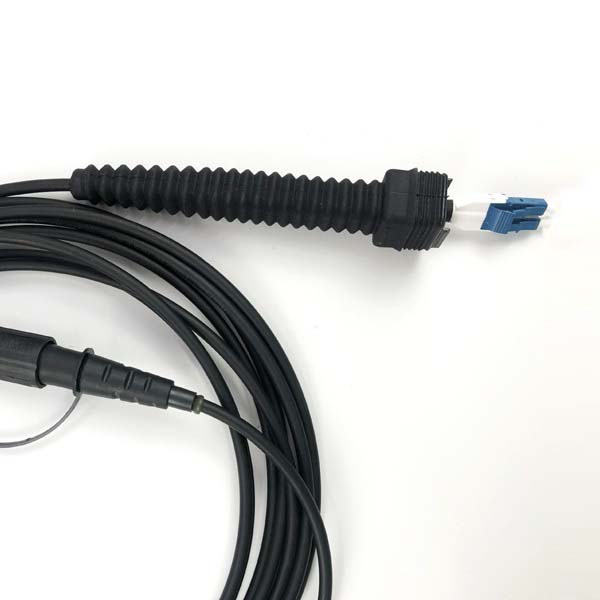

Yingda NSN nylon boot is saqure head with threads, the size is 23*23mm, total length 137mm. We will adopt the strictest quality inspection for every one piece of patch cable, and paste the data on the stickers.
