Description
Certification and Compliance:
- TIA/EIAC, ISO/IEC 11801, ENS50173, IEC60304, IEC61754, EN297-1.
- CEA/EIA-310-E (Cabinets, Racks, Panels and Associated Equipment standard.)
- ANSI/TIA/EIA-606-A (Administration Standard for Telecommunications)
- GR-449-CORE (Generic Requirements and Design Consideration for Fiber Distributing Frames.)
- UL 94 (Tests for Flammability of Plastic Material for Parts in Devices and Appliances.)
- RoHS (Directive on Restriction of Hazardous Substances.)
Features:

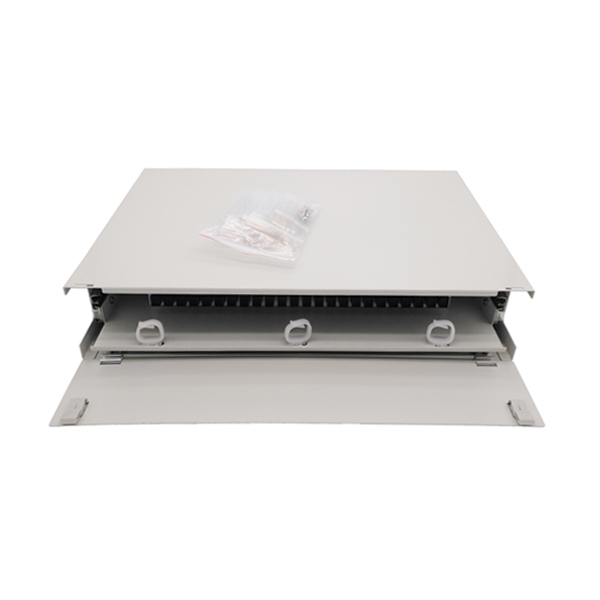

- Sliding 1U patch panel with defined stop for the drawer.

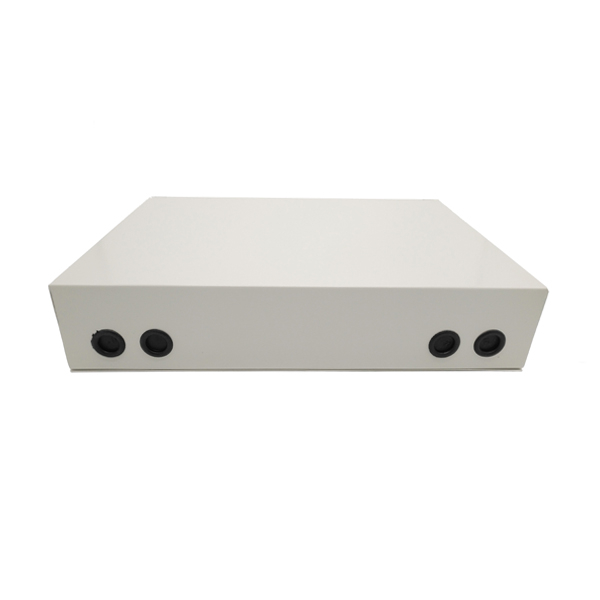

- Double cable entry with cable gland for easy routing and protection for optical fiber cable and distribution pigtails.

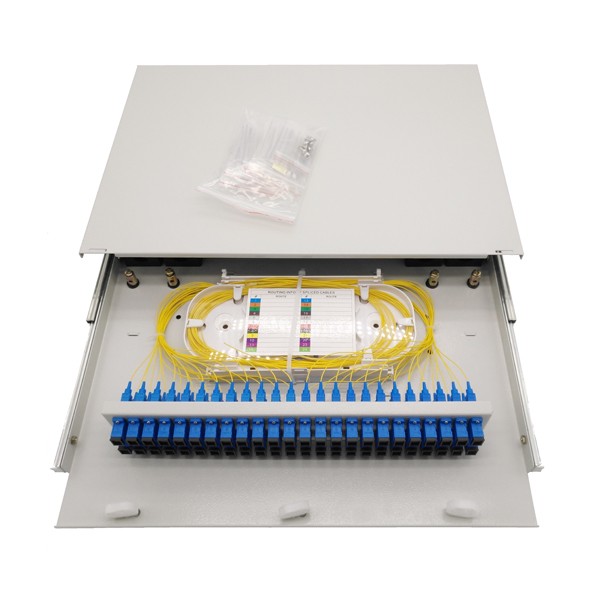

- Ample space within the panel for easy placement and routing of tight fiber after splicing and termination.
- 10G Ready, Zirconia fitted sleeve for all Multimode and Single mode adapter.
- 1U rack mount can be loaded with up to 4 panels (12 fiber/panel). Available in SC, FC, ST, LC adapter panel.
Specifications:
| Patch Panel | Adaptor | ||
| Size（H×W×D ）mm | 1U(H) x 19’’(W) x 260mm(D) | Multi Mode Insertion Loss | 0.2dB Maximum |
| Material | 1.2mm Cold Rolled Steel | Single Mode Insertion Loss | 0.2dB Maximum |
| Material Coating | Powder | Mating durability | >500 Mating Cycles |
| Humidity | 0-90%, non-condensing | Multi Mode Adaptor Wavelength | 850 to 1300nm |
| Operating Temperature | -10°C to 60°C | Single Mode Adaptor Wavelength | 1310 to 1550nm |
| Storage Temperature | -40°C to 85°C | ROHS Compliant | Yes |
