Description

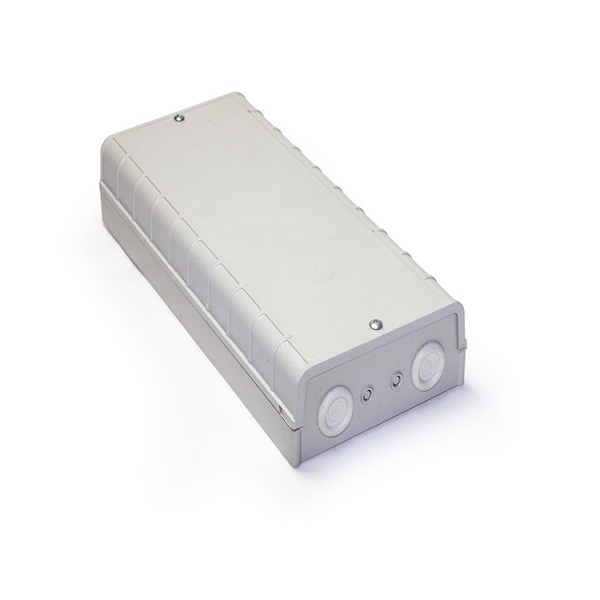

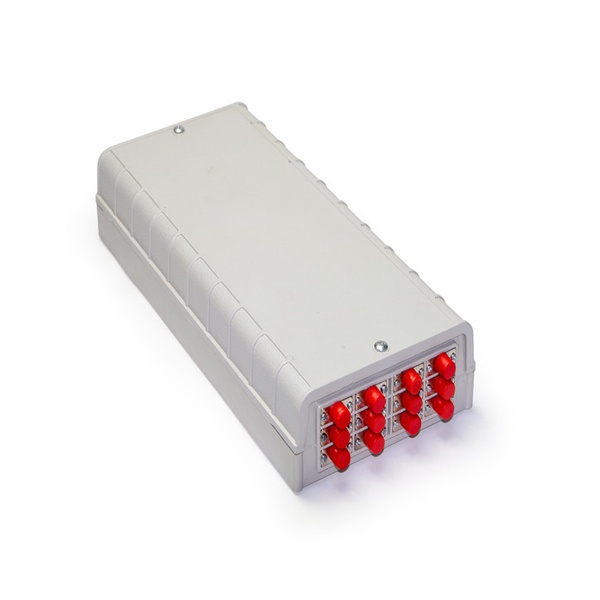

FTTH Terminal Box Features
- The main body is made of engineering plastic ABS, offers an attractive appearance and easy to use.
- The splice tray features a stackable structure for flexible configuration and can be removed to a workbench for splicing, making operation and maintenance quick and easy.
- The FTTH terminal box features a built-in cable fixture, splice tray, and wire clamp, along with a reliable grounding system. It secures and splices optical cables, allowing for the connection of pigtails and optical cables.
- It provides full protection for patch cords and ensures a bend radius of ≥40mm.
FTTH Terminal Box Technical Parameters
| Model | WTB-P12FC |
| Dimension | 280*130*50mm |
| Net weight | About 390g |
| Splicing capacity | 12 Cores |
| Max. capacity | 12 Cores |
| Pack | 1pc/box, 20pcs/carton |
| Standard accessories: 24 fiber optic heat shrink tubing, 1 roll of electrical tape, 3 wall-mounted expansion tubes, 3 self-tapping screws, 4 nylon ties | |
FTTH Terminal Box Pack Information
| Quantity/carton(pc) | Carton size(cm) | Gross weight/carton(kg) |
| 20 | 32*28.5*61 | 11 |
Yingda can offer all types of FTTH fiber terminal box for indoor wall mounted wiring, no matter it is for cable end termination or fiber splicing.
We can offer two types of cable exit:

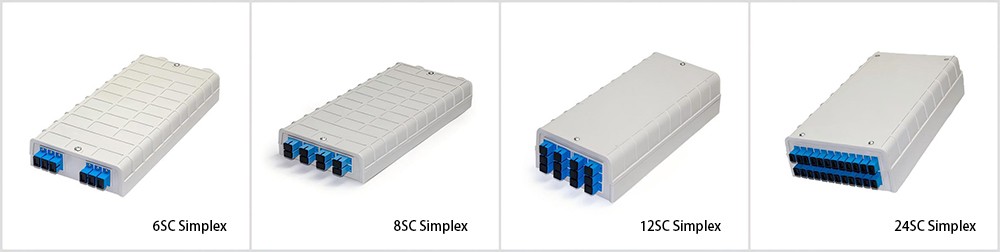

- One type is pre-terminated with SC FC LC ST adapters and pigtails in factory, you only need to fusion splice inside of the box, and fix the fiber optic cable joint in the splice tray slots with heat shrinkable protection tubes, it maximum hold 24 SC/FC adapters.

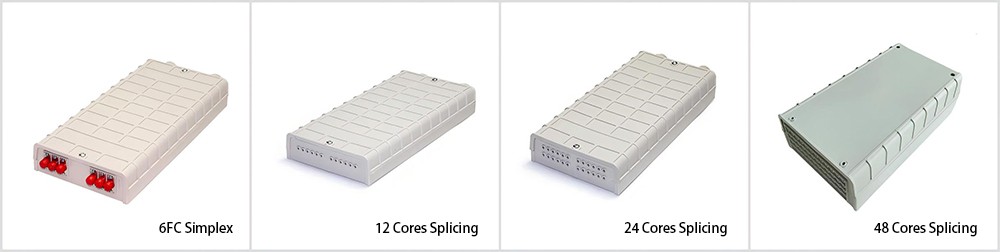

- The other type is 0.9mm or bare fiber holes for the cable outlet, the same internal structure with 1 splice tray inside, it can be maximum 48holes for 48 cores single fiber.
