Description
Features of Outdoor Fiber Optic Distribution Box
- Total enclosed with key and 4*buckles, square shape, light weight, compact size;
- High strength engineer plastic, wet-proof/water-proof/dust-proof, anti-aging, resistance to chemical and U.V attack;
- Clamp for feeder cable and drop cable, mix fiber splicing/ fixation/storage/distribution in one;
- Cable, pigtails are running through own path without disturbing each other;
- Distribution panel can be flipped up,1×32,1X8,1×16 micro splitter with 34 SC adapter or pigtails are available;
- 4pcs 12cores single fiber splice trays, total meet 48 cores, large area for routing and storage;
- Feeder cable can be placed by expression port, easy for maintenance and installation;
- Outdoor Wall mount or pole mount, IP65 protection class
- Laser mark and logo print reserved on the lid
Specification
| Model | FDB0232M |
| Dimension (A*B*C) | 345*220*95mm |
| Max. Capacity | 48 cores (4*12F single fiber tray) |
| Cable ports | 1mid span, 2 cable glands, 32 round ports |
| Cable diameter | 1mid span(Φ14.5mm), 2cable gland(Φ7-12mm), 24: drop cable 2*3mm or <4.5mm round cable |
| Splitter quantity | 1X8 1X16 2×32 mini splitter |
| Adapter quantity | 34SC |
| Color | black |
Detailed Display of Outdoor Fiber Optic Distribution Box

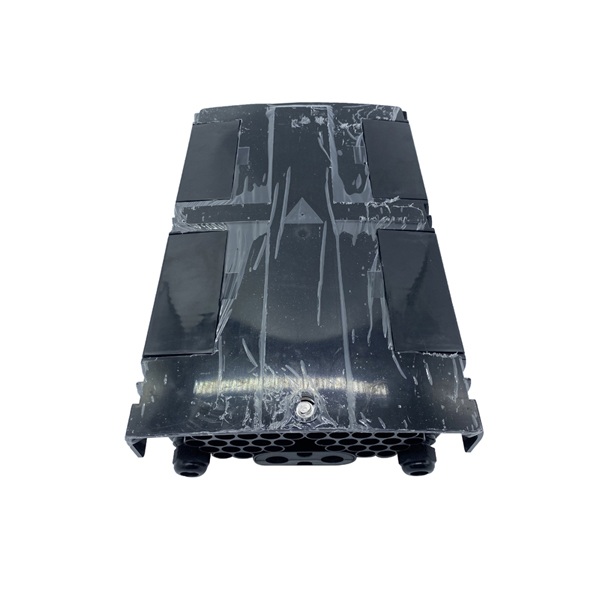

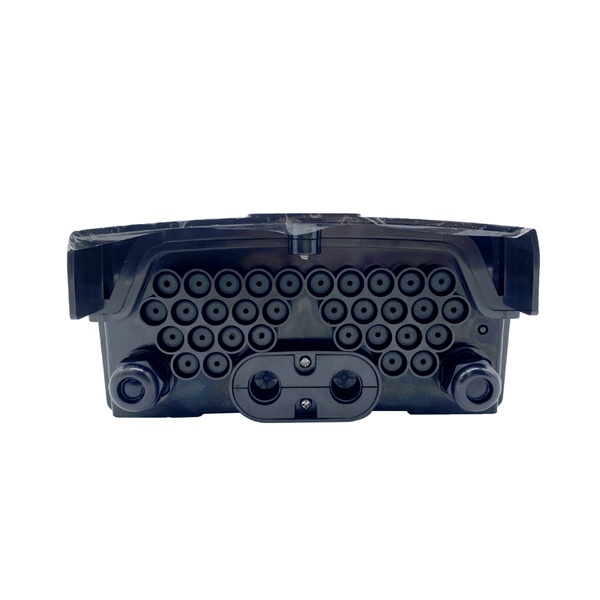

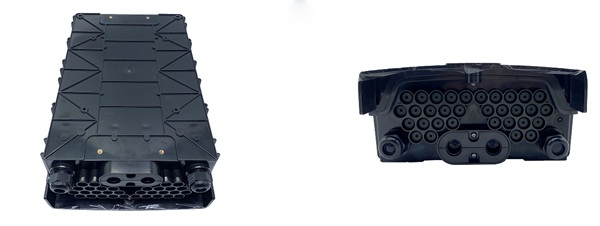

The box has a robust black plastic casing for outdoor durability. It is equipped with multiple fiber optic cable entry/exit ports to accommodate various cable runs. On one side, there are numerous circular ports for organizing and routing fibers, ensuring orderly cable management.

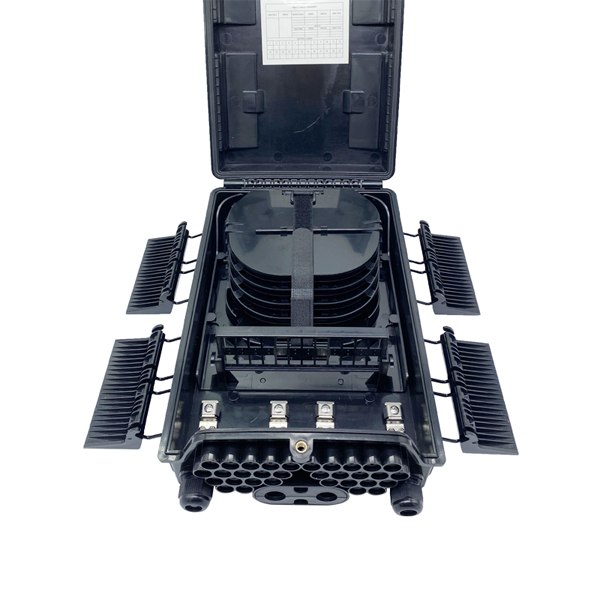

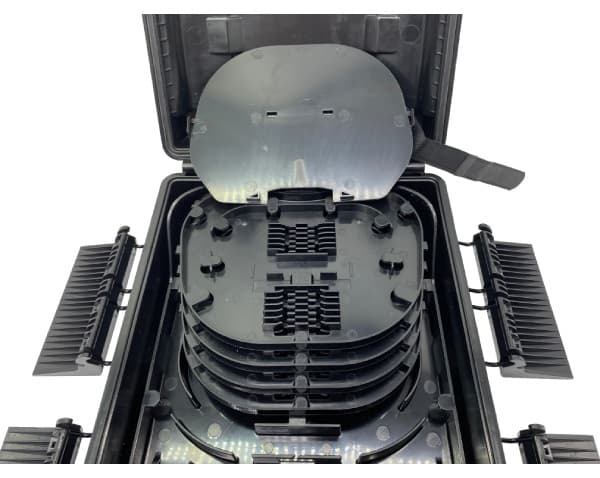

Inside, there are multiple layered fiber optic splice trays. These trays provide space for fiber splicing and storage, with a design that allows for easy access and organization of fiber optic cables.

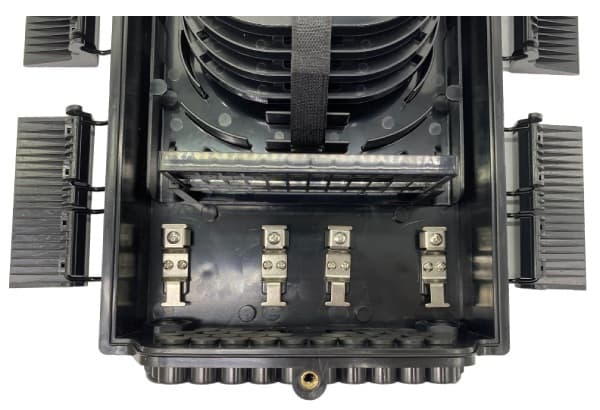

Metal terminal blocks are included for fiber optic connections, ensuring stable and reliable terminations. The internal layout is designed to manage fiber slack, with the splice trays and associated components allowing for neat arrangement and protection of fiber optic cables.

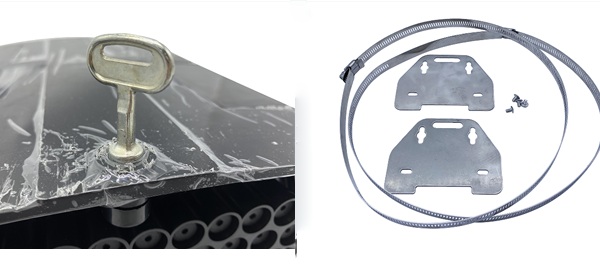

A metal key is used to lock the box, preventing unauthorized access and protecting the internal fiber optic components. It also has mounting accessories, including metal brackets and a metal hose clamp, allowing secure installation on poles or other structures.
