Description
The clamp comprises four attachment portions that boost versatility when dealing with lattice towers, steel poles or wood. Also, the device has a 6-8 feet normal spacing. For the application of OPGW or ADSS, all urethane products can be used for flat or curved pole surfaces.
Suspension Clamp To Tower Features
- High resistance due to the weather-resistant urethane, but even pliable to support and protect the ADSS OPGW cables.
- Slip strength exceeds 100 lbs.
- Lattice adapters have break-away bolts for installation that offer precise torque

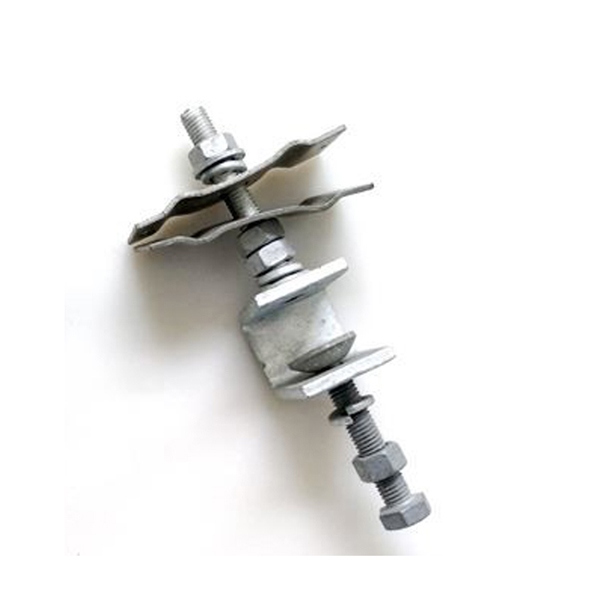

Downlead Clamp Structure
| S/N | Item name | Specification | Qty | Material |
| 1 | Galvanized bolt fasteners | M12X60 | 1 | Galvanized steel |
| 2 | Downlead clamp body | 1 | Galvanized steel | |
| 3 | Galvanized bolt fasteners | M12X-130 | 1 | Galvanized steel |
| 4 | Corrugated aluminum sheet | BW-240A | 2 | Aluminium alloy |
Note:
The angle steel tower downlead clamp is suitable for various angle steel tower materials.
Fiber optic cable diameter range: 8.5-24.00mm
Order information
| Model | Material | Cable diameter | Mass (kg) | Application |
| DLCT-0116W/A | Hot dip galvanizing | 9.0-11.6mm | 0.75 | Tower |
| DLCT-0143W/A | Hot dip galvanizing | 11.7-14.3mm | 0.75 | Tower |
| DLCT-0170W/A | Hot dip galvanizing | 14.4-17.0mm | 0.75 | Tower |
| DLCT-0197W/A | Hot dip galvanizing | 17.2-19.7mm | 0.75 | Tower |
| DLCP-0116W/A | Stainless steel strips | 9.0-11.6mm | 0.55 | Pole |
| DLCP-0143W/A | Stainless steel strips | 11.7-14.3mm | 0.55 | Pole |
| DLCT-0170W/A | Stainless steel strips | 14.4-17.0mm | 0.55 | Pole |
| DLCT-0197W/A | Stainless steel strips | 17.2-19.7mm | 0.55 | Pole |
| Note: DLC=Downlead clamp, T:tower, P:pole; W/A– W:OPGW cable, A:ADSS cable. | ||||
