Description
Features
- High isolation
- High channel isolation
- Low insertion loss
- Wide projection wavelength
- High stability and reliability
Technical parameters
| Item | Specification | Unit | Remark | |
| Min | Max | |||
| Inport | 1 | |||
| Outport | 40~96 | 40~96channel optional | ||
| Channel spacing | 100 | GHz | ||
| Reference transmission band | -12.5 | 12.5 | GHz | |
| Wavelength accuracy | -50 | 50 | PM | Reference ITU GRID |
| 1dB bandwidth | 0.2 (G) | nm | Gaussian type | |
| 3dB bandwidth | 0.4 (G) | nm | ||
| Insertion loss | 3.5 | dB | ||
| Insertion loss consistency | 1 | dB | ||
| Flatness | 0.7 | dB | ||
| Polarization-dependent loss | 0.5 | dB | ||
| Adjacent channel crosstalk | 25 | dB | ||
| Non-adjacent channel crosstalk | 30 | dB | The transmission bandwidth includes the worst case PDL, so the cumulative crosstalk of other channels is | |
| Total crosstalk | 22 | dB | The transmission bandwidth includes the worst case PDL, so the cumulative crosstalk of other channels is | |
| Maximum power | 300 | mW | The transmission bandwidth includes the worst case PDL, so the cumulative crosstalk of other channels is | |
| Chromatic dispersion (CD) | -20 | 20 | Ps/ms | |

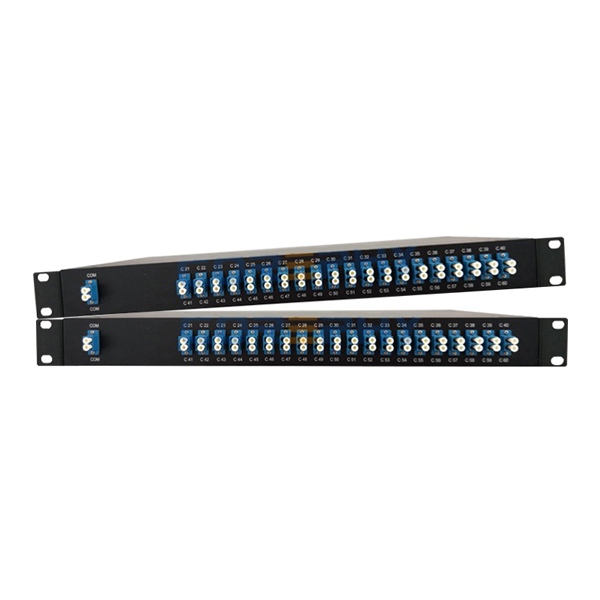

Detailed Display
