Description
This fast connect closure inlet and outlet are clearly separated in different parts with meachanical seal, free operation, no interfere with each other. The stepped rows of arc-shaped design for the outputs allow all connectors to be plugged and unplugged with complementary interference, and can be operated directly by hand without the need for special tools. It is widely used in cable distribution section in FTTH network. It supports 16 pcs Fast Connect drop cables and integrates fiber splicing, splitting, storage and cable management in one solid protection box.
MST Terminal 16 Port Features
- Made of robust plastic materials, black color with 1200N force resistance, durable, strong and long lasting;
- Outlet hardened Mini SC adapters, compatible with Huawei connector applications
- IP68 protection grade, best MST fiber box for outdoor harsh environment
- Support wall, overhead, underground, handhole, pedestal, pole mounting
- Custom cable input and output from optical cable port, optical interface MPO, SC LC dual connector.
- Custom ODVA, ODC, AARC, PDLC, Opti-Tap, Mini SC, Fullx available.
- Support factory-terminated with 1×2 1×4 1×8,1×16 PLC splitter, 24 cores fiber sleeve, SC / LC fiber adapter or MPO/MTP breakout cable or empty with standard accessories.
MST Terminal Dimension
MST Terminal Specification
| Model | MST-FH16 | |
| Dimension | Cover , Section B-B | 314*173*67 |
| Bottom,Section A-A | 320*181*56 | |
| Cable Inlet | 1x Round cable max. 5-18mm | |
| Cable Outlet | 16 x Mini SC SC connectors | |
| Hardened Adapter type | Compatible with ODC, Fullx, PDLC, Supertap (OptiTap), Mini, AARC,etc | |
| Max. Splicing Capacity | 8 Cores | |
| Mini Splitter | None, 1×2, 1×4,1×8, 1×16 mini PLC splitter | |
| Adapter Type | 16x SC simplex adapter | |
| Insertion Loss | IL ≤ 0.3dB, Typical ≤ 0.1dB (SC LC) IL ≤ 0.7dB, Elite loss ≤0.35dB (MPO) | |
| Return Loss | UPC ≥ 50dB, UPC ≥ 60dB; PC ≥ 35dB | |
| Tensile Strength | 1200N long term | |
| Bending Radius | 20D | |
| Fire Protection Rating | UL94 V0 | |
| Material | Plastic: Reinforced PC+ABS Metal: Stainless steel 304 | |
| Color | Black | |
| Ingress Protection | IP68 | |
| RoHS | Compliant | |
| Sealing Mode | Mechanical | |
| Application | Wall, overhead, pole, manhole, pedestal,underground | |
MST Terminal Box Mechanical Parameters
| Storage Temperature | -40 ~+85℃ |
| Operation Temperature | -40 ~+65℃ |
| Relative Humidity | ≤93% |
SC Adapter Optical Performance
| Adapter Type | SC/APC |
| Body style | Simplex |
| Alignment Sleeve Material | Ceramic |
| Insertion Loss | ≤0.2dB |
| Return Loss | ≥60dB |
| Durability | 1000 times |
| ROHS | Compliance |
| Standard | IEC 61754-20 |

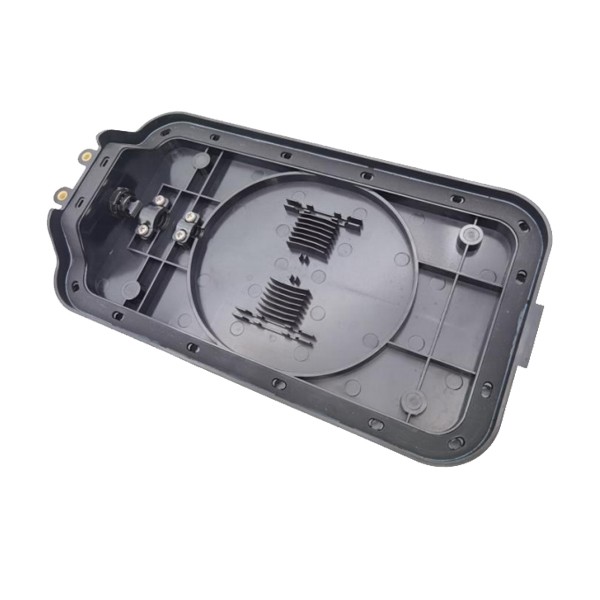

Fiber MST Terminal Box Details

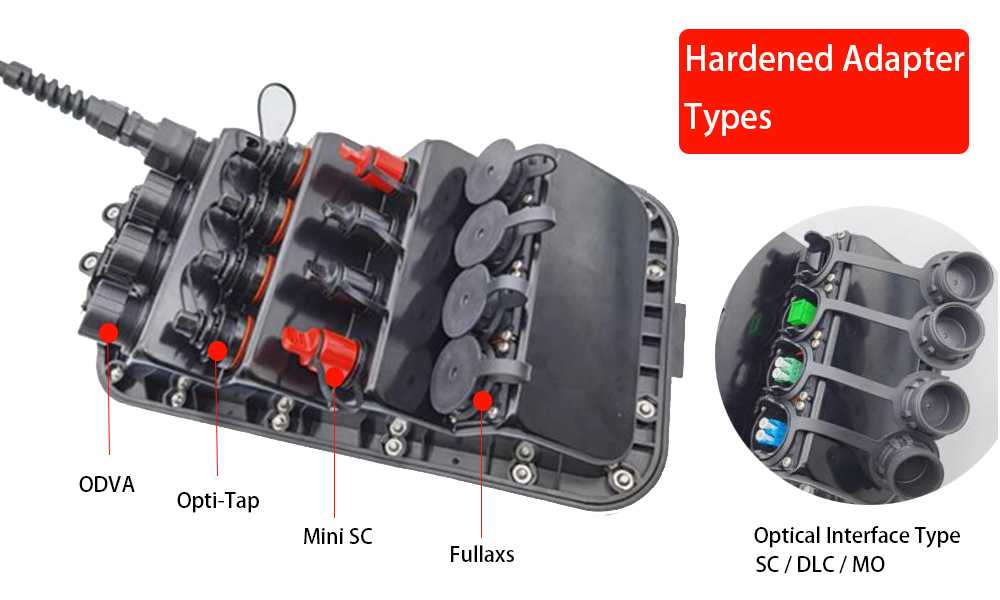

YINGDA MST-FH16 MST Fiber Tail is widely used in fiber access network in FTTH GPON wiring. It is compact size, irregularly shaped, plug-and-play NAP box with best IP68 waterproof protection, and have strong impact resistance of 1200N. Below are some examples with different hardended adapters on a box.

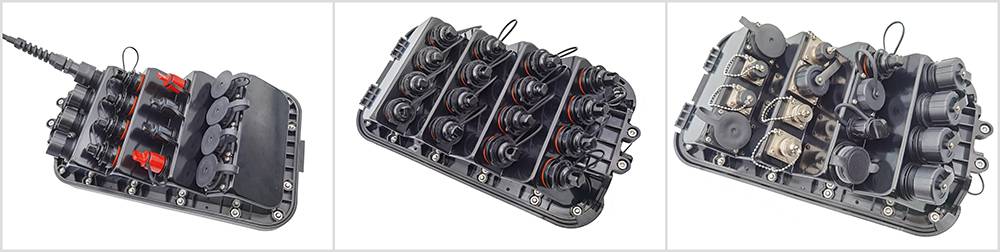

Yingda can install the same hardened adatpers on the same box, also can install 2 or more different types of hardened adapters on the MST box to meet different project equipment requirements. The internal optical interface can be SC connector, LC duplex connector, MPO connectors, UPC APC polishing.
For every fiber multiport service terminal box, in order to distinguish the inport and outports, or if the same box install 2 or more pieces splitters or breakout cables, we can custom different colors of the adapter dust cap like green, red, black, etc.
