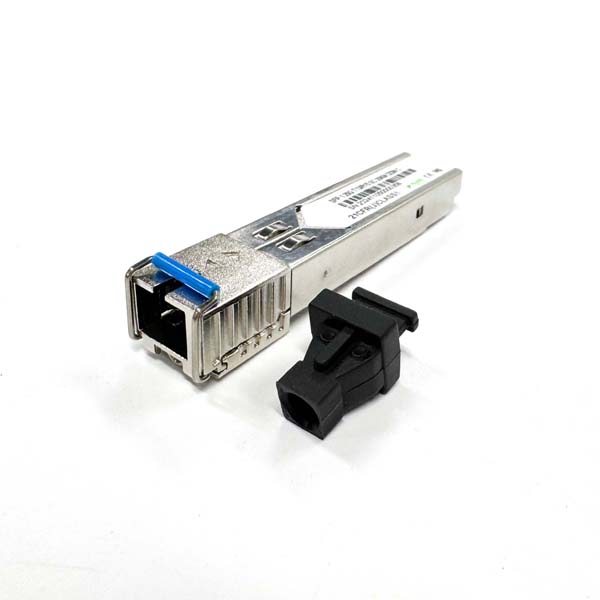

1000BASE SX SFP Transceiver Module T1310 R1550 20KM DDM SC Commercial Temperature 0 ~70℃, Blue Pull Ring, Metal Case -9 ~-3dB Tx Power, Luminescence sensitivity: -20dB -20dB

Description

SFP Transceiver Module Features

• Single Mode bi-directional Transmission
• SFP Multi-source Package with SC Receptacle
• Up to 1.25G Data Links
• Hot-Pluggable Capability
• Up to 20Km on 9/125μm SMF
• Single +3.3V Power Supply
• Built-in WDM
• Isolation > 30dB, Cross Talk < -45dB
• Metal Enclosure, Excellent EMI & ESD Protection
• Monitoring Interface Compliant with SFF-8472
• Compliant with Specifications for IEEE802.3
• Compliant with Bellcore TA-NWT-000983
• Eye Safety Designed to Meet Laser   Class1, Compliant with IEC60825-1
• RoHS Compliant

SFP Transceiver Module Application

• Fast Ethernet
• SDH STM-1/ SONET OC-03
• WDM Application

Absolute Maximum Ratings

Recommended Operating Conditions

Optical and Electrical Characteristics (FP and PIN, 1310nm, 20km Reach)

Notes:

1. Theoptical power is launched into SMF.
2. PECLinput, internally AC-coupled and terminated.
3. Measuredwith a PRBS 223-1 test pattern @1250Mbps, BER ≤1×10-12.
4. InternallyAC-coupled.

SFP Transceiver Module Details

The optical transceiver consists of three sections: a VCSEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and control unit. All modules satisfy class I laser safety requirements. The gold-plated contacts on the surface of the gold fingers are thickened to enhance conductivity and allow for repeated insertion and removal.

All 1.25Gbps SFP module full form offered by Yingda use high-quality imported chips to ensure low power consumption and a stronger, more stable signal. High-quality lasers ensure high-speed signal transmission without packet loss. The sfp transceivers can be used in wide range of fiber optic link: router, switch, server, network card, firewalls, media converter, etc.

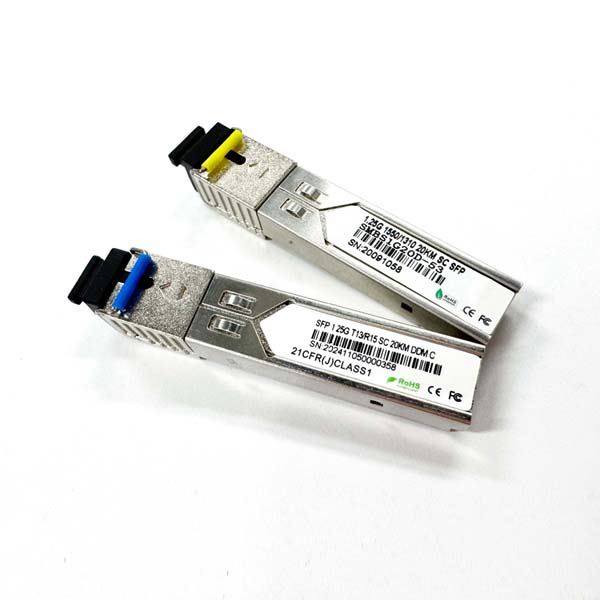

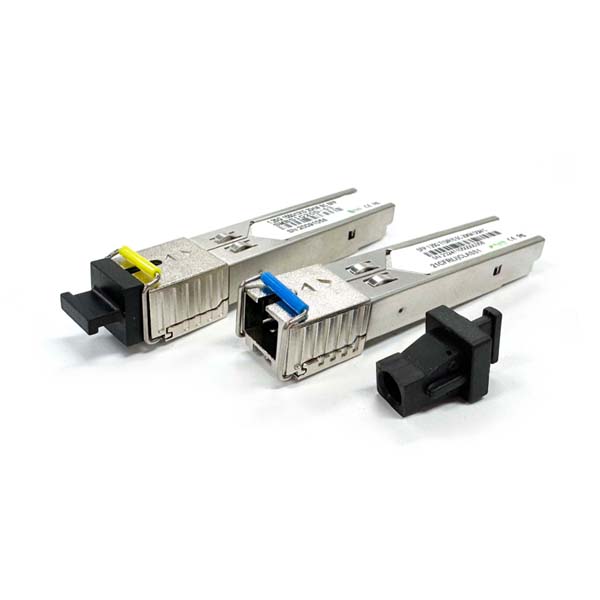

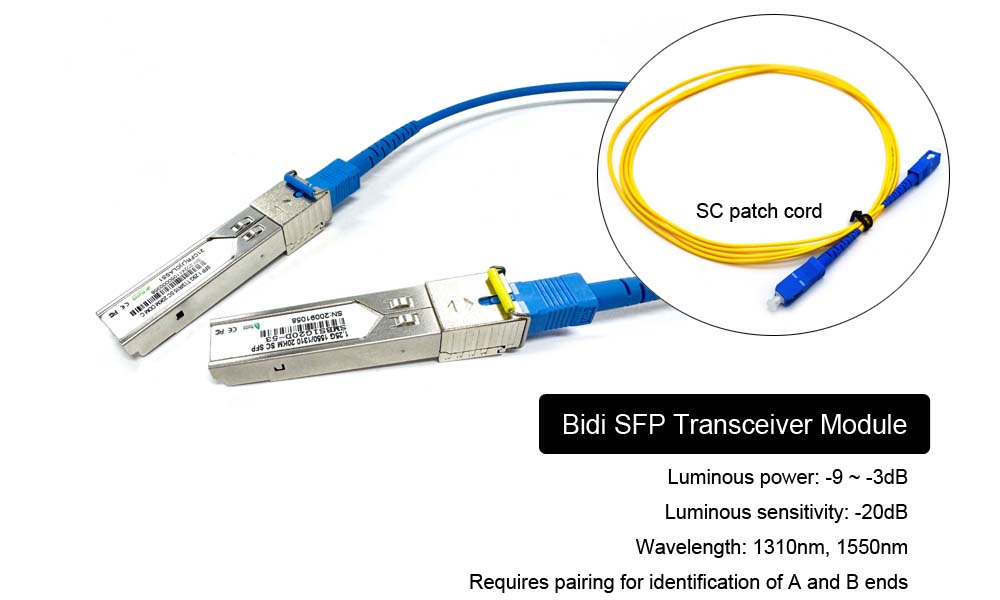

Single-fiber bidirectional optical transceiver modules must be used in pairs. The SC square connector can be used with single-mode fiber optic patch cords to achieve high-precision and accurate connection. It is plug-and-play, flexible and convenient.

All 1.25Gbps optical modules offer by Yingda use high-quality imported chips to ensure low power consumption and a stronger, more stable signal. High-quality lasers ensure high-speed signal transmission without packet loss. Furthermore, the DDM function can monitor five parameters in real time: module temperature, laser bias current, antenna number 6, transmit optical power, and receive optical power, thereby quickly locating the fault in the fiber optic link, simplifying maintenance, and improving system reliability.

Yingda pack all SFP transceivers in blister boxes, 10pcs / box,  it features a specially designed, precise-size card slot, ensuring stability and reliability.

Ordering Information
